32 units Micro-procession technology is used.
1.8 inches 128*64 LCD display with backlight, option language interface (Chinese/English), user's language set if necessary.
PC front face panel, which is water-proof, oil-proof, UV proof so that the durability is longer
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Mabay
-
Model Number:
-
DC30T
-
Product Name:
-
Diesel Generator Controller Control module DC30T 0-50mA
-
Working voltage:
-
DC8V----36V Continuous
-
Power consumption:
-
Standby:24V:MAX 1W, Working:24V:MAX 2W
-
MAX Accumulating Time:
-
99999.9Hours(Min Store time:6min)
-
Fuel Relay Output:
-
1Amp DC+VE Supply voltage
-
Start Relay Output:
-
1Amp DC+VE Supply voltage
-
Working condition:
-
-20-65℃
-
Storage condition:
-
-40-85℃
-
Overall dimension:
-
106mmX86mmX45mm
-
Weight:
-
0.5Kg
Quick Details
-
Current:
-
9999
-
Warranty:
-
1 year
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Mabay
-
Model Number:
-
DC30T
-
Product Name:
-
Diesel Generator Controller Control module DC30T 0-50mA
-
Working voltage:
-
DC8V----36V Continuous
-
Power consumption:
-
Standby:24V:MAX 1W, Working:24V:MAX 2W
-
MAX Accumulating Time:
-
99999.9Hours(Min Store time:6min)
-
Fuel Relay Output:
-
1Amp DC+VE Supply voltage
-
Start Relay Output:
-
1Amp DC+VE Supply voltage
-
Working condition:
-
-20-65℃
-
Storage condition:
-
-40-85℃
-
Overall dimension:
-
106mmX86mmX45mm
-
Weight:
-
0.5Kg
Product Description

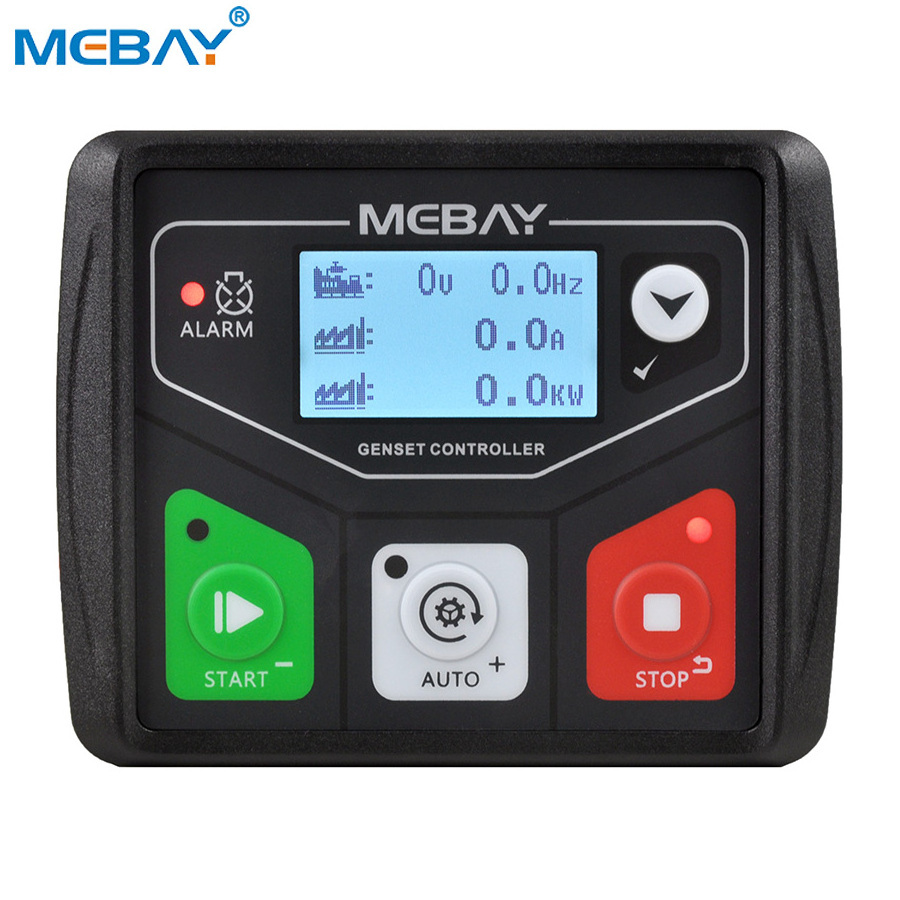

Generator Control Module DC30T for Small Generator 0-50mA Current Transformer
This Controller Series is specialized for small diesel, gasoline, gas generator sets'start, stop,monitor and defaults checking as well as parameters setting.
The controller has a point array LCD screen, can display various faults in the same time that the genset will be stopped once it can not work smoothly.
There are Chinese/English interface options, more language can be set according to user's request. All the parameters can be configured through the front face buttons or use programmable interface by USB to adjust via PC. It can be widely applied for all kinds of auto control system of gensets.
The secondary input of 0-50mA current transformer.
This Controller Series is specialized for small diesel, gasoline, gas generator sets'start, stop,monitor and defaults checking as well as parameters setting.
The controller has a point array LCD screen, can display various faults in the same time that the genset will be stopped once it can not work smoothly.
There are Chinese/English interface options, more language can be set according to user's request. All the parameters can be configured through the front face buttons or use programmable interface by USB to adjust via PC. It can be widely applied for all kinds of auto control system of gensets.
|
Specification of the Generator controller DC30D
|
|
|
|
Operation Voltage
|
DC8-36V Continuous
|
|
|
AC Voltage Input
|
1P2W(L-N input) 30VAC-360VAC(ph-N)
|
|
|
Rotate speed sensor Frequency
|
50-9000Hz
|
|
|
Generator Frequency input
|
50/60Hz
|
|
|
Insulation strength
|
Apply AC1.5kV voltage between high voltage terminal and low voltage terminal; The leakage current is not more than 3mA within 1min.
|
|
|
Working condition
|
-25-65℃
|
|
|
Protection Level
|
IP54:when waterproof rubber gasket is added between controller and its panel
|
|
|
Panel cutout
|
78mm×66mm
|
|
Detailed Image
Main Features
USB Port: parameters can be set even without power.
All the parameters can be set through front panel buttons.
Collect and display a variety of engine and generator parameters.
Records function: relative faults shall be recorded in real time.
It has 5 relay outputs, 3 of which are configurable, and more than 10 functions can be selected for each channel.
1 switch value input, and each can be set as max 20 functions.
3 sensor simulation input connectors, various kinds of units can be set.
Sensor can be self-defined by front face button or PC software.
Various of crank conditions(RPM,Frequency, Oil Pressure) can be chosen
Control Protection:Auto Start/Stop of genset,load transfer and perfect failure display and protection.
3 sensor simulation input connectors, various kinds of units can be set.
Sensor can be self-defined by front face button or PC software.
Various of crank conditions(RPM,Frequency, Oil Pressure) can be chosen
Control Protection:Auto Start/Stop of genset,load transfer and perfect failure display and protection.
