Quick Details
-
CRI (Ra>):
-
90
-
Input Voltage(V):
-
DC12V/24V
-
Lamp Luminous Flux(lm):
-
110
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-20 - 70
-
Product Weight（kg）:
-
0.36
-
Product Name:
-
COB LED Strip Light
-
LED Quantity:
-
768LED/m
-
Color available:
-
RGB
-
CRI:
-
>90%
-
LED Type:
-
COB
-
PCB Width:
-
8mm
-
PCB Color:
-
White
-
Cut Length:
-
31.26cm
-
Input Voltage:
-
DC12V/24V
-
Power:
-
14W/m
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ANT
-
Model Number:
-
ANT-COB-768-RGB
-
CRI (Ra>):
-
90
-
Input Voltage(V):
-
DC12V/24V
-
Lamp Luminous Flux(lm):
-
110
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-20 - 70
-
Product Weight（kg）:
-
0.36
-
Product Name:
-
COB LED Strip Light
-
LED Quantity:
-
768LED/m
-
Color available:
-
RGB
-
CRI:
-
>90%
-
LED Type:
-
COB
-
PCB Width:
-
8mm
-
PCB Color:
-
White
-
Cut Length:
-
31.26cm
-
Input Voltage:
-
DC12V/24V
-
Power:
-
14W/m

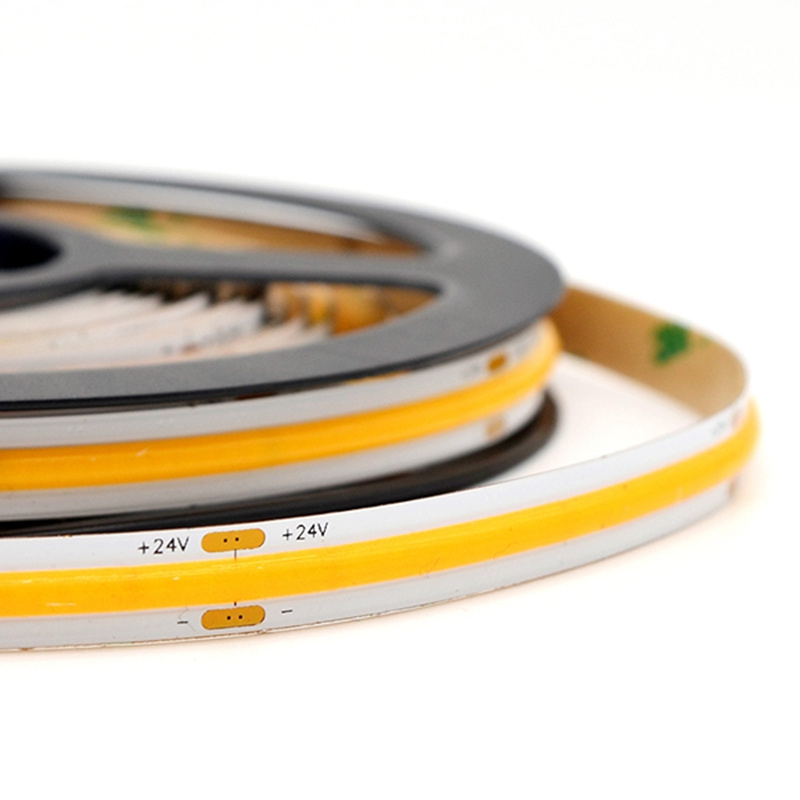

COB LED Strip Manufacturer.
Here is the COB product list:
| LED/m | Pixel/m | Volt | W/m | PCB Width | Color | Cut Length | CRI | |
| Addressable COB Strip | 240LED | 240PIXEL | 5V | 21W | 10 | Full color | >90 | |
| RGBW COB Strip | 560LED | 24V | 16W | 10 | RGBW | >90 | ||
| RGB COB Strip | 768LED | 24V | 14W | 10 | RGB | >90 | ||
|
White color COB Strip |
312LED | 12V | 8W | 8mm |
2700K 3000K 4000K 6000K |
19.23mm | >90 | |
| 312LED | 24V | 8W | 8mm | 38.46mm | >90 | |||
| 320LED | 12V/24V | 8W | 8mm | 50mm | >90 | |||
| 320LED | 5V | 8W | 8mm | 25mm | >90 | |||
| 384LED | 12V/24V | 10W | 8mm | 41.66mm | >90 | |||
| 384LED | 12V/24V | 10W | 5mm | 41.66mm | >90 | |||
| 480LED | 12V/24V | 11W | 8mm | 50mm | >90 | |||
| 528LED | 12V/24V | 14W | 10mm | 45.45mm | >90 | |||
| 608LED | 24V | 14W | 10mm | Double Color | 26.31mm | >90 |
Gold circuit inside LED
We use 99.99% gold circuit wire for LED chip and IC chip connection, it is much better conductive and stable than alloy circuit.
Different PCB thickness
Full 2 ounce thick copper PCB=0.07mm thickness, thicker PCB with thicker circuit work with higher power current to let LED strip last longer without voltage drop and keep full brightness.
Lamination on PCB
There is lamination on PCB both sides, fire retardant material inside lamination to avoid fire. The Lamination could be white, black, yellow, green color, so we can see different color PCB.
5 meters LED strip one roll on plastic reel in silver anti static bag with desiccant.
300 meters in one carton and carton size 45*45*23cm.
DHL/FEDEX/UPS/TNT/Aramex/Air Ship/Sea Ship available.
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Magic RGBW and RGB W strip
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
