- Product Details
- {{item.text}}
Quick Details
-
Brick size:
-
400*100*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Fuda Machinery
-
Voltage:
-
220V/380V/440V
-
Dimension(L*W*H):
-
2060*1730*2580mm
-
Weight (KG):
-
1500 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Raw material:
-
cement, sand, fly ash,stone powder
-
Block Type:
-
cement Brick
-
Weight:
-
2000kg
-
Molding cycle:
-
24S
-
Products:
-
Interlocking block, Lego bricks...
-
Host machine power:
-
13.45KW
-
Vibration frequency:
-
4200HZ
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Autoclaved aerated concrete block (AAC)
-
Brick Raw Material:
-
Cement
-
Production Capacity (Pieces/8 hours):
-
4480 pcs/8hours, 5760 pcs/8hours, 12000 pcs/8hours
-
Brick size:
-
400*100*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Fuda Machinery
-
Voltage:
-
220V/380V/440V
-
Dimension(L*W*H):
-
2060*1730*2580mm
-
Weight (KG):
-
1500 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Raw material:
-
cement, sand, fly ash,stone powder
-
Block Type:
-
cement Brick
-
Weight:
-
2000kg
-
Molding cycle:
-
24S
-
Products:
-
Interlocking block, Lego bricks...
-
Host machine power:
-
13.45KW
-
Vibration frequency:
-
4200HZ
Our Advantages
What can we do for you
OEM/ODM
CUSTOMIZATION
LOWEST PRICE
CUSTOMIZATION
LOWEST PRICE
Products Description

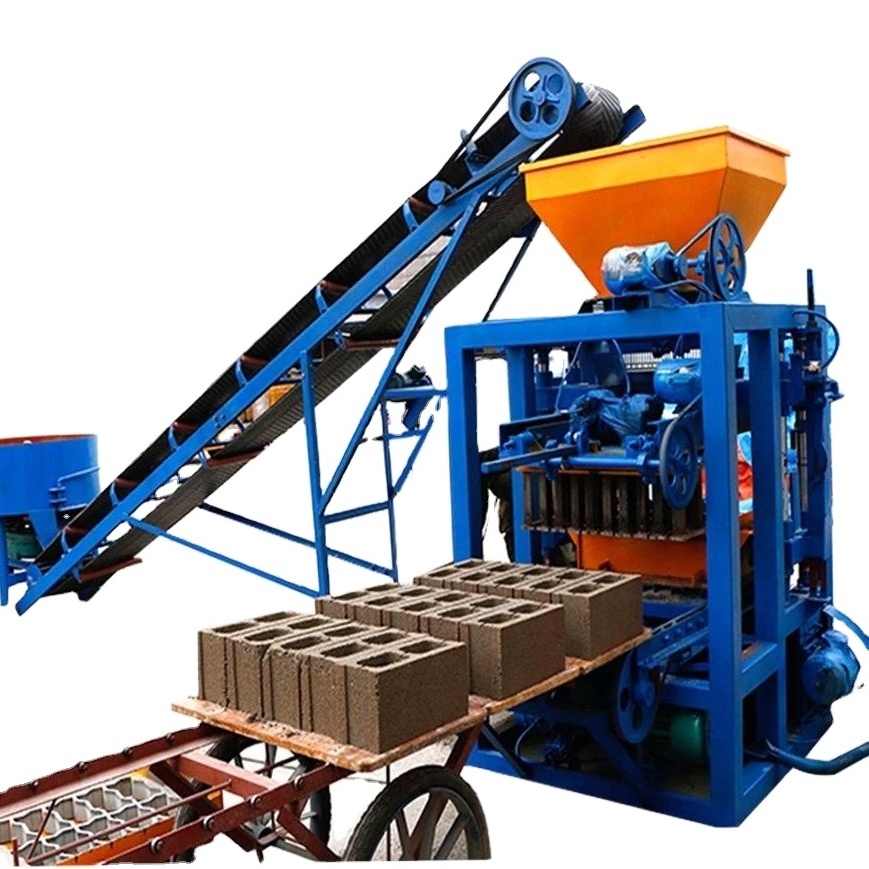

Advantage of QT4-24 Interlocking Paver Brick Making Machine
QT4-24 is a semi automatic block production line with lcarge capacity
New design and new technology,it can produce faster and better quality
Multi function:produce different size hollow blocks,solid brick,interlocking brick,paving brick and curb stones by changing molds
1). Raw material: use hopper trolley delivery into mixer; need 2 workers
2). Mixer: Mixing and produce concrete, then conveyor delivery concrete to block machine hopper; need 1 worker
3). Hollow block machine: Forming blocks, then delivery to stacker by block receiver; no need workers
4). Maual forklift trolley: delivery new blocks to curing area; need 2 workers
5). Curing area: Curing need 10-15 days, then take blocks out from pallet; need 1-2 workers
6). Trolley: delivery pallet to hollow block machine area; need 1 worker
7). Sell blocks: Sell blocks and management; 1 worker
Total need about 7-8 workers in QT4-24 hollow block machine factory.
Main technical specification
|
Voltage
|
220V/240V/380V/415V
|
Vibration force
|
35.5KN
|
|
Dimension(L*W*H)
|
1850*1880*2240mm
|
Cycle Time
|
24-26s
|
|
Core Components
|
PLC, Pressure vessel, Engine, Pump
|
Motors Power
|
13.5KW
|
|
Weight (KG)
|
1800kg
|
Molding cycle
|
24s
|
|
Block Type
|
Hollow Solid Paver Block
|
Pallet size
|
850*550*25mm
|
|
Production Capacity (Pieces/8 hours)
|
3200 pcs/8hours
|
Mixer model
|
JD350
|
Production capacity
ALL THE KEY PARTS ARE HEAT TREATED
MORE HARDER AND DURABLE!
Quality comparison
SIMENS Programmable Logic Controller
Welcome pay a visit to our factory!
We a brick making machine manufacturer located in China, specialize in producing a wide range of brick making machines. We have over 23 years of experience in the industry and have earned a reputation for manufacturing high-quality brick making machinery at affordable prices.
We can provide comprehensive after-sales support to our clients, including training, installation, and maintenance services, can also offers a warranty on our products.
We offer quality products at affordable prices, making them a good choice for those looking for the oppropriate machines.
We can provide comprehensive after-sales support to our clients, including training, installation, and maintenance services, can also offers a warranty on our products.
We offer quality products at affordable prices, making them a good choice for those looking for the oppropriate machines.
