Quick Details
-
Place of Origin:
-
Shandong, China
-
Bearing type:
-
insert ball bearing
-
Series:
-
uc bearing
-
Bore diamter:
-
55mm
-
Outside diameter:
-
100mm
-
Locking device:
-
set screw
-
Bearing Material:
-
Gcr15 steel bearing
-
Origin:
-
bearings japan
-
Seal type:
-
standard seald with flingers
-
OEM number:
-
UC211
-
suit housing:
-
F211 P11 FC211 T211
Quick Details
-
Applicable Industries:
-
Manufacturing Plant, Machinery Repair Shops, Retail
-
Brand Name:
-
BHR, OEM
-
Model Number:
-
UC211
-
Place of Origin:
-
Shandong, China
-
Bearing type:
-
insert ball bearing
-
Series:
-
uc bearing
-
Bore diamter:
-
55mm
-
Outside diameter:
-
100mm
-
Locking device:
-
set screw
-
Bearing Material:
-
Gcr15 steel bearing
-
Origin:
-
bearings japan
-
Seal type:
-
standard seald with flingers
-
OEM number:
-
UC211
-
suit housing:
-
F211 P11 FC211 T211

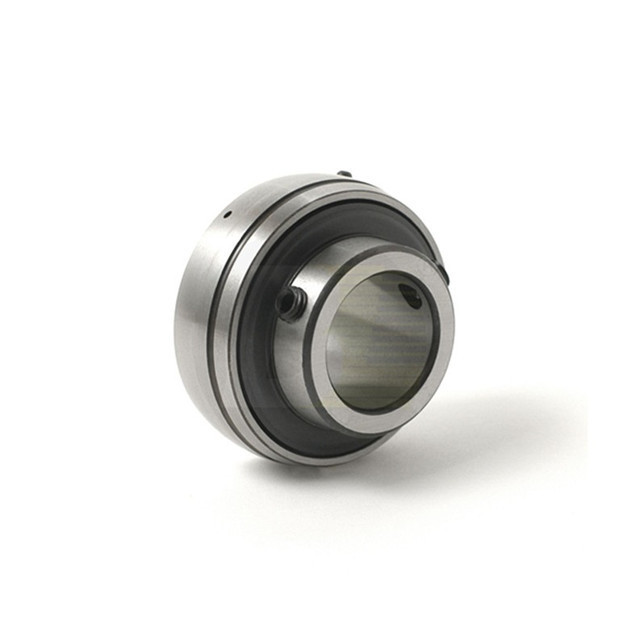

outer spherical pillow block bearing UC 211 211-32 insert bearing UC211 UK211
A pillow block (or plummer block) is a pedestal used to provide support for a rotating shaft with the help of compatible bearings & various accessories. Housing material for a pillow block is typically made of cast iron or cast steel.
A pillow block usually refers to a housing with an included anti-friction bearing. A pillow block refers to any mounted bearing wherein the mounted shaft is in a parallel plane to the mounting surface, and perpendicular to the center line of the mounting holes, as contrasted with various types of flange blocks or flange units. A pillow block may contain a bearing with one of several types of rolling elements, including ball, cylindrical roller, spherical roller, tapered roller, or metallic or synthetic bushing. The type of rolling element defines the type of pillow block. These differ from "plummer blocks" which are bearing housings supplied without any bearings and are usually meant for higher load ratings and a separately installed bearing.
|
Specifications: UC211 insert ball bearing, pillow block housing bearing |
|
|
Type |
ball bearing |
|
Bore diameter |
55mm |
|
Outside diameter |
100mm |
|
Locking device |
Set Screw |
|
Seal type |
Contact Seal with Flinger |
|
Bore type |
Round |
|
Bearing material |
steel Gcr15, stainless steel, ceramic |
UC ball insert bearing catalogue:
| Bearing No. | D | Bi | Be | n | m | G | ds | Weight |
| mm | (kg) | |||||||
| UC202 | 40 | 27.4 | 14 | 11.5 | 15.9 | 4.5 | M5×0.8 | 0.14 |
| UC203 | 40 | 27.4 | 14 | 11.5 | 15.9 | 4.5 | M5×0.8 | 0.13 |
| UC204 | 47 | 31 | 17 | 12.3 | 18.7 | 5 | M6×1.0 | 0.18 |
| UC205 | 52 | 34.1 | 17 | 14.3 | 19.8 | 5 | M6×1.0 | 0.22 |
| UC206 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5 | M6×1.0 | 0.34 |
| UC207 | 72 | 42.9 | 20 | 17.5 | 25.4 | 7 | M8×1.0 | 0.52 |
| UC208 | 80 | 49.2 | 21 | 19 | 30.2 | 8 | M8×1.0 | 0.68 |
| UC209 | 85 | 49.2 | 22 | 19 | 30.2 | 8 | M8×1.0 | 0.78 |
| UC210 | 90 | 51.6 | 22 | 19 | 32.6 | 10 | M10×1.25 | 0.85 |
| UC211 | 100 | 55.6 | 25 | 22.2 | 33.4 | 10 | M10×1.25 | 1.22 |
| UC212 | 110 | 65.1 | 27 | 25.4 | 39.7 | 10 | M10×1.25 | 1.65 |
| UC213 | 120 | 65.1 | 29 | 25.4 | 39.7 | 10 | M10×1.25 | 1.96 |
| UC214 | 125 | 74.6 | 30 | 30.2 | 44.4 | 12 | M12×1.5 | 2.06 |
| UC215 | 130 | 77.8 | 30 | 33.3 | 44.5 | 12 | M12×1.5 | 2.3 |
| UC216 | 140 | 82.6 | 33 | 33.3 | 49.3 | 12 | M12×1.5 | 2.79 |
| UC217 | 150 | 85.7 | 35 | 34.1 | 51.6 | 12 | M12×1.5 | 3.59 |
| UC218 | 160 | 96 | 37 | 39.7 | 56.3 | 12 | M12×1.5 | 4.45 |
