Quick Details
-
Instruction for use:
-
Low cost
-
Model Number:
-
Passive In Solar Greenhouses
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Demeter
-
Name:
-
Double Arch Warm Greenhouses
-
Frame Structure:
-
hot galvanized steel tube
-
Quilt:
-
Waterproof Warm Quilt
-
Covering:
-
150/200micro PE Film
-
Width:
-
6m/8m/9m/10m customized
-
Length:
-
20m/30m/40m/50m/60m/80m/100m
-
Total height:
-
2.6-3.5m
-
Side height:
-
1.2-1.8m
-
Features:
-
Waterproof,easy installed,economic
-
Application:
-
Agriculture Planting
Quick Details
-
Size:
-
Small
-
Type:
-
Solar Agricultural Greenhouses
-
Manufacturer:
-
Demeter Greenhouse
-
Instruction for use:
-
Low cost
-
Model Number:
-
Passive In Solar Greenhouses
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Demeter
-
Name:
-
Double Arch Warm Greenhouses
-
Frame Structure:
-
hot galvanized steel tube
-
Quilt:
-
Waterproof Warm Quilt
-
Covering:
-
150/200micro PE Film
-
Width:
-
6m/8m/9m/10m customized
-
Length:
-
20m/30m/40m/50m/60m/80m/100m
-
Total height:
-
2.6-3.5m
-
Side height:
-
1.2-1.8m
-
Features:
-
Waterproof,easy installed,economic
-
Application:
-
Agriculture Planting
Passive In-solar Greenhouse
For some region if winter temperature is below 0ºC but above -10ºC, quilt can be applied and covered on top of the film to help heat preservation. And if winter temperature is below 0ºC but above -5ºC, double layer film can be used for heat preservation.
Products Description
Galvanized Steel Structure
The greenhouse adopts galvanized steel pipe, which has long service life and is not easy to corrosion. Simple installation, use fastener connection, no welding.
Waterproof Warm Quilt
Waterproof coated felt layer and fine black felt for double-sided, middle sandwich material. Rain and snow, better insulation effect, longer service life.
Electric roller
The greenhouse is equipped with a fully automatic quilt winding machine, which can roll the quilt during the day to provide light to the plants, and put the quilt down at night to keep warm and cold.

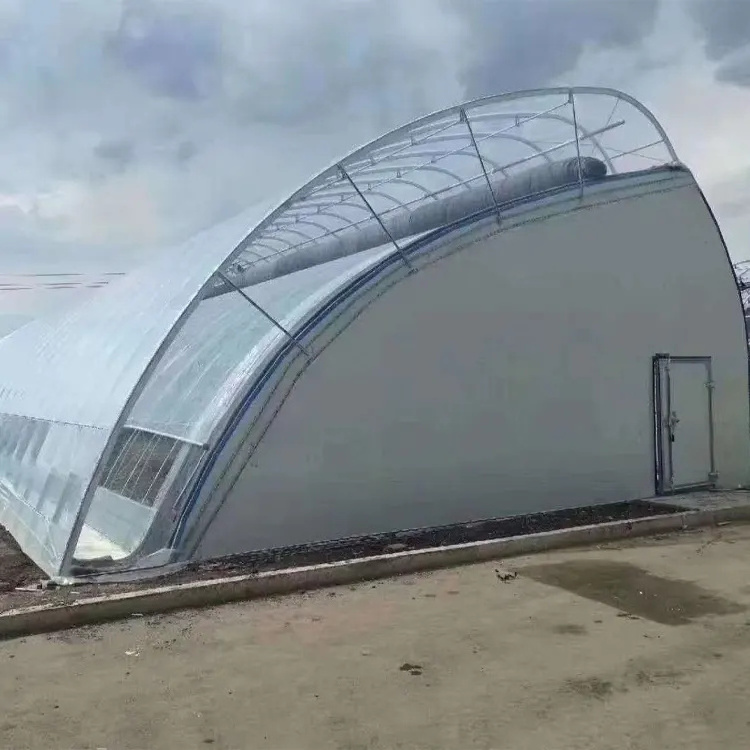

The greenhouse is a double arch structure, the outer layer is covered with film, and the inner layer is covered with film +
thermal insulation quilt. When the quilt is rolled up, the indoor light increases, the side ventilation promotes the internal air
circulation of the greenhouse, and the insect protection net prevents the entry of pests. When it is cold, put down the quilt to create a double-layer insulation effect. Design principle: To prevent excessive rain and snow, resulting in quilt can not roll up the situation. The outer layer can be fitted with a snow shaker to shake off accumulated snow.
thermal insulation quilt. When the quilt is rolled up, the indoor light increases, the side ventilation promotes the internal air
circulation of the greenhouse, and the insect protection net prevents the entry of pests. When it is cold, put down the quilt to create a double-layer insulation effect. Design principle: To prevent excessive rain and snow, resulting in quilt can not roll up the situation. The outer layer can be fitted with a snow shaker to shake off accumulated snow.
|
Item
|
Details
|
|
|
Greenhouse width
|
5-10m
|
|
|
Greenhosue length
|
20-80m
|
|
|
Frame pipe
|
32mm/42mm/60mm/50*30*2.0mm
|
|
|
Covering
|
150 micron /200 micron
|
|
|
Shoulder Height
|
1.5m-1.8m or Customized
|
|
|
Roof Height
|
3.5m or Customized
|
|
|
Wind Load
|
0.6KN/M2
|
|
|
Snow Load
|
0.5KN/M2
|
|
|
Covering: PE film+ Waterproof warm quilt
System: Side ventilation with insect net/ Electric quilt roller
Optional: Irrigation system/Hydroponic system/Nursery Seedbed
|
|
|
Details Images
Recommend Products
Lean on Warm Greenhouse
The Chinese passive solar greenhouse has three walls of brick or clay. Only the southern side of the building consists of
transparent material (usually plastic film) through which the sun can shine. During the day the greenhouse captures heat from the sun in the thermal mass of the walls, which is released at night.
At sunset, an insulating sheet -- waterproof warm quilt -- is rolled out over the plastic, increasing the isolating capacity of
the structure. The walls also block the cold, northern winds, which would otherwise speed up the heat loss of the greenhouse.
transparent material (usually plastic film) through which the sun can shine. During the day the greenhouse captures heat from the sun in the thermal mass of the walls, which is released at night.
At sunset, an insulating sheet -- waterproof warm quilt -- is rolled out over the plastic, increasing the isolating capacity of
the structure. The walls also block the cold, northern winds, which would otherwise speed up the heat loss of the greenhouse.
Separate
Warm Greenhouse
The greenhouse is made of steel pipes all around (no walls are required), the surface is covered with a film, and the side ventilation system is equipped with a insect-proof net. In order to achieve the thermal insulation effect, the four sides can be covered with waterproof thermal insulation quilt, or do a layer of thermal insulation board inside.
Design principle: It is convenient for customers to build greenhouses without walls.
Packaging&Shipping
1. Port: Shenzhen Port&Shanghai port & Qingdao port & according to customer's requirements
2.
Lead time: 12-15 days after payment
3. Packing Details: The normal package is wooden case(Size：L*W*H). But we also pack it according to customer's special request.
You can choose the best way to transport according to your actual situation.
