Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Warranty:
-
24 Month
-
Certificate:
-
CE
-
Wheelbase:
-
870mm
-
Seat height:
-
610mm
-
Ground clearance:
-
120mm
-
Headlight:
-
LED Lights
-
Start mode:
-
Electric Start
-
Tyre size:
-
7 inch OR 8 inch
-
Packing size:
-
1300 x 830 x 630mm
Quick Details
-
Displacement:
-
110cc
-
Brand Name:
-
CloverATV
-
Model Number:
-
CATV-110-8
-
Place of Origin:
-
Zhejiang, China
-
Warranty:
-
24 Month
-
Certificate:
-
CE
-
Wheelbase:
-
870mm
-
Seat height:
-
610mm
-
Ground clearance:
-
120mm
-
Headlight:
-
LED Lights
-
Start mode:
-
Electric Start
-
Tyre size:
-
7 inch OR 8 inch
-
Packing size:
-
1300 x 830 x 630mm

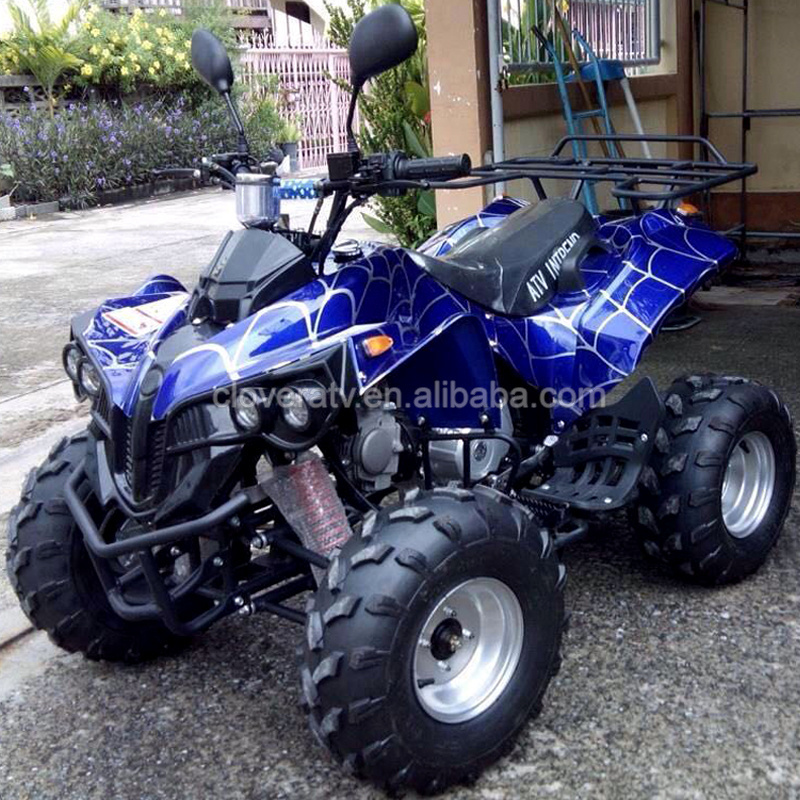

4 Stroke Air Cooled110CC Sport ATV
|
Engine |
|
|
Engine type |
110CC,Air-cooled, Single cyclinder, 4-stroke |
|
Engine Displacement |
50CC, 70CC, 90CC, 110CC, 125CC |
|
Bore&Stroke(mm) |
39*41.5 |
|
Max. Power(kw/r/min) |
2.1/6000 |
|
Starter |
Electric Start |
|
Drive Train |
|
|
Clutch |
Fully-automatic or semi-automatic |
|
Gearbox |
1 forward gear, 1 forward gear + 1 reverse gear, 3 forward gears + 1 reverse gear |
|
Final Drive |
Chain |
|
Dimensions and Weight |
|
|
Length x Width x Height |
1450x850x930mm |
|
Wheelbase |
870mm |
|
Seat height |
610mm |
|
Ground clearance |
120mm |
|
Fuel Capacity |
3.4litres |
|
Oil type |
Petrol |
|
Wheels, Suspension and Brakes |
|
|
Wheels(F/R) |
Steel rim |
|
Product Material: |
Steel frames + ABS Plastic deck |
|
Tyre Material |
Rubber,Vacuum tire |
|
Tyres(F/R) |
16x8.0-7/16x8.0-7 OR 19x7.00-8/18x9.5-8 |
|
Shock Absorber Front |
Spring-absorber |
|
Shock Absorber Rear |
Spring-absorber |
|
Final Drive |
Chain |
|
Brakes(F/R) |
Drum/Hydraulic disc |
|
Packing |
|
|
Carton Size |
1300 x 830 x 630mm |
|
G.W./N.W. |
82/94KG |
|
Container Load |
Qty/20FT:52pcs / Qty/40HQ:108pcs |
