Quick Details
-
Core Components:
-
Stainless Steel Tank, Manhole, Spare parts
-
Marketing Type:
-
Hot Sale 2024
-
Product Name:
-
Stainless Steel Apple Cider Vinegar Spirit juice fermenting equipment
-
Application:
-
Wine/Cider/Spirit /Juice/Food beverage
-
Material:
-
Stainless Steel 304/316
-
Capacity:
-
100L-100000L
-
Cooling way:
-
Dimple Plate Cooling
-
Appearance:
-
Brushed
-
Valves:
-
Drain,Racking, Sample
-
Usage:
-
Storage/Fermenter
-
After-sales Service Provided:
-
Provided
-
After Warranty Service:
-
Video Technical Support Online Support
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Precise
-
Weight:
-
900 KG
-
Core Components:
-
Stainless Steel Tank, Manhole, Spare parts
-
Marketing Type:
-
Hot Sale 2024
-
Product Name:
-
Stainless Steel Apple Cider Vinegar Spirit juice fermenting equipment
-
Application:
-
Wine/Cider/Spirit /Juice/Food beverage
-
Material:
-
Stainless Steel 304/316
-
Capacity:
-
100L-100000L
-
Cooling way:
-
Dimple Plate Cooling
-
Appearance:
-
Brushed
-
Valves:
-
Drain,Racking, Sample
-
Usage:
-
Storage/Fermenter
-
After-sales Service Provided:
-
Provided
-
After Warranty Service:
-
Video Technical Support Online Support
Products Description

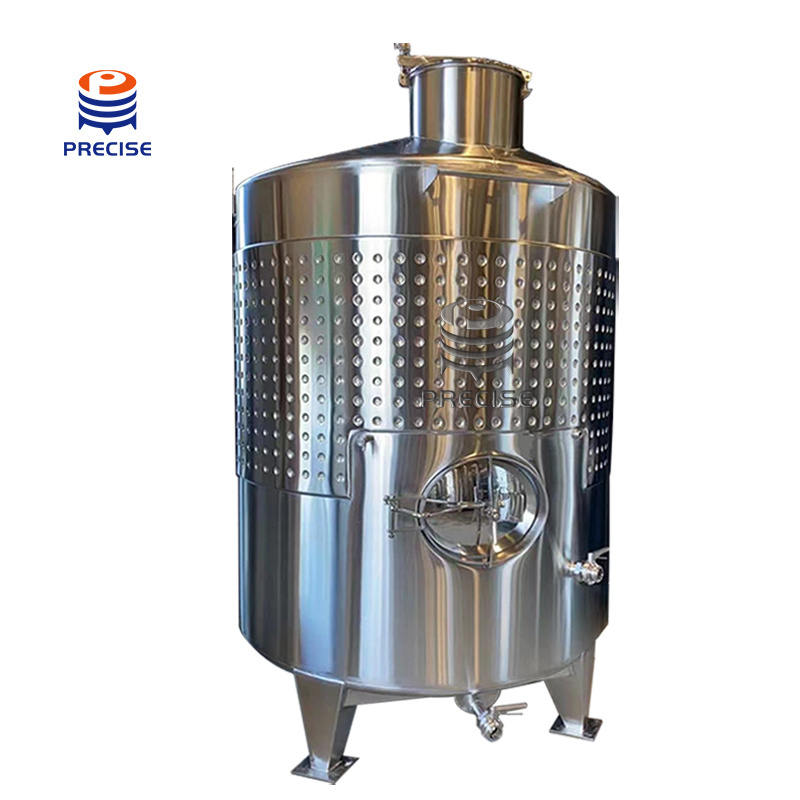

Stainless Steel Vodka Whiskey Juice Apple Vinegar Fermentation Tank with Cooling jacket
Customized size is available , capacity from 100l to 100,000l
Application: Wine, Beer, Cider, Spirit, Juice, Food Beverage
Agitator and insulation can be added as requirement
Product Paramenters
Features:
*Material: SS304 /SS316
*Surface: Inner 2B, outside brushed oil, all welds are passivated and polished; inside welds are ground. Polished is optional
*Top cone can be made offset or center cone according to customer’s requirement.
*Cooling Jacket on the tank body controls the temp of spirit perfectly
Slope bottom or Conical bottom is optional
*Classic Tank for spirit fermenter or storage
*Insulation is available to keep ideal temperature.
*Customization is available.
*Structure：Centre cone (conical cone) / Cylinder Shell/Slope bottom/side jacket/adjustable legs
|
*Configuration:
|
|
|
||
|
●Top manhole
|
●Side manhole
|
●Breathe valve
|
||
|
●Sample valve
|
●Thermometer
|
●PT100 sensor port
|
||
|
●Racking valve
|
●Drain out valve
|
●Ladder support
|
||
|
●Lifting lugs
|
●Cooling jacket inlet & outlet
|
|
||
|
Model
|
Volume (lt) V
|
Inner dia.:(mm)
|
Total High: (mm)
|
Shell H
|
Legs H
|
|
PWST1
|
1000
|
930
|
2200
|
1500
|
350
|
|
PWST1.5
|
1500
|
1100
|
2300
|
1500
|
350
|
|
PWST2
|
2000
|
1270
|
2600
|
1610
|
350
|
|
PWST2.5
|
2500
|
1270
|
2900
|
2000
|
350
|
|
PWST3
|
3000
|
1400
|
2900
|
2000
|
350
|
|
PWST4
|
4000
|
1600
|
3100
|
2000
|
350
|
|
PWST5
|
5000
|
1600
|
3700
|
2440
|
350
|
|
PWST10
|
10000
|
1900
|
5050
|
3660
|
350
|
|
PWST15
|
15000
|
2000
|
5950
|
4880
|
350
|
|
PWST20
|
20000
|
2230
|
6100
|
5110
|
350
|
|
PWST25
|
25000
|
2650
|
5600
|
4500
|
Skirt
|
|
PWST30
|
30000
|
2600
|
6760
|
5500
|
Skirt
|
|
PWST40
|
40000
|
2900
|
7400
|
6100
|
Skirt
|
|
PWST45
|
45000
|
3400
|
5800
|
4880
|
Skirt
|
|
PWST50
|
50000
|
3200
|
7600
|
6100
|
Skirt
|
