- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VeeZoom
-
Model Number:
-
WS-N1180E1-D
-
Product Name:
-

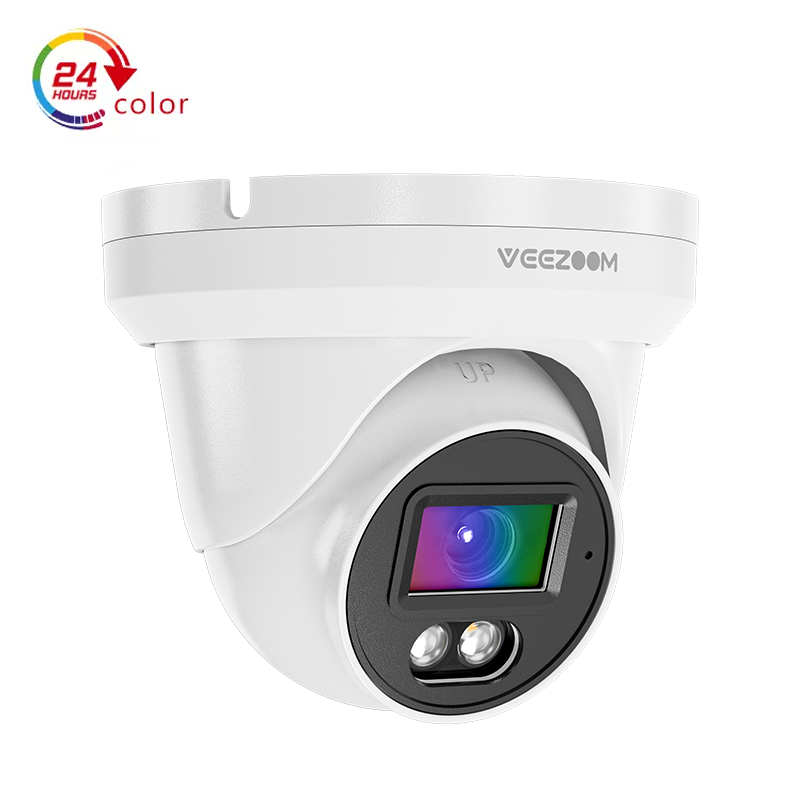

Ultra HD 8MP PoE Security Camera
-
Camera Type:
-
Outdoor Surveillance IP Turret Camera
-
APP:
-
Tuya Smart Life APP / Veezoom pro APP
-
Lens:
-
2.8mm fixed lens, 4mm optional
-
Feature:
-
Compatible with third party NVRs
-
Multiple Storage:
-
NVR/Cloud Storage/TF Card( Max 256GB)
-
Protocol:
-
Support Free SDK (Tuya Protocol Customized )
-
IR Night Vision Distance:
-
30 Meter (100ft)
-
Waterproof Rating:
-
IP67 Water-proof (Metal housing)
Quick Details
-
Special Features:
-
NIGHT VISION, Motion Detection, Waterproof / Weatherproof, Built-in Siren, One-way Audio
-
Function:
-
Waterproof / Weatherproof, Alarm I/O, Built-in Mic, Wide Angle, Line Crossing Detection, Intrusion Detection, Smart Motion Alert, Vehicle and Human Detection, Full Color Night Vision
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM, Software reengineering
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VeeZoom
-
Model Number:
-
WS-N1180E1-D
-
Product Name:
-
Ultra HD 8MP PoE Security Camera
-
Camera Type:
-
Outdoor Surveillance IP Turret Camera
-
APP:
-
Tuya Smart Life APP / Veezoom pro APP
-
Lens:
-
2.8mm fixed lens, 4mm optional
-
Feature:
-
Compatible with third party NVRs
-
Multiple Storage:
-
NVR/Cloud Storage/TF Card( Max 256GB)
-
Protocol:
-
Support Free SDK (Tuya Protocol Customized )
-
IR Night Vision Distance:
-
30 Meter (100ft)
-
Waterproof Rating:
-
IP67 Water-proof (Metal housing)
4K Ultra HD outdoor full color night vision cctv security turret poe camera human&vehicle detection 4K 8MP eyeball PoE IP camera
Product Description
Details Images
Specification
|
Image Sensor
|
1/2.8” Progressive Scan CMOS
|
|
Max. Resolution
|
3840(H)×2160(V)
|
|
Min. illumination
|
Color: 0.05 Lux @ (F1.6, AGC ON), 0 Lux with IR on
|
|
Day/Night
|
Auto(ICR)/Day / Night
|
|
IR Range
|
Up to 30 m (98.4 ft)
|
|
Lens Type
|
Fixed focal lens
|
|
Focal Length
|
2.8 mm/4 mm (optional)
|
|
Angle of View
|
H: 101.4°, V: 55.3°
|
|
Pan/Tilt/Rotation Range
|
Pan: 0˚ ~ 360˚, Tilt: 0˚ ~ 85˚, Rotation: 0˚ ~ 360˚
|
|
Streaming Capability
|
2 Streams
|
|
Main Stream
|
3840×2160 @20fps, 2592×1944 @25fps, 2592×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720 @ 25/30fps
|
|
Sub Stream
|
704×576, 640×360, 480×360, 352×288 @ 25/30fps
|
|
Bit Rate
|
Main Stream: 128kbps ~ 4096kbps
Sub Stream: 16kbps ~ 1536kbps |
|
Bit Rate Control
|
CBR/VBR
|
|
Noise Reduction
|
2D/3D DNR
|
|
Image Enhancement
|
WDR/HLC/BLC/Defog
|
|
Protocols
|
IPv4, RTSP/RTP/RTCP, TCP/UDP,DHCP, DNS, DDNS, UPNP, ICMP, IGMP, NTP, SMTP, 802.1x, SNMP, HTTP/HTTPS, PPPOE
|
|
Interface Protocol
|
ONVIF, SDK, (TUYA optional)
|
|
Intelligent Analysis
|
Intrusion, Line crossing (support the classification and accurate detection of vehicle and human)
|
|
Motion Detection
|
Support
|
|
Privacy Masking
|
Support
|
|
Mirror
|
Support
|
|
Reset Button
|
Support
|
|
Microphone
|
Built-in microphone
|
|
Storage
|
Built-in Micro SD slot, up to 256GB
|
|
Ethernet
|
1 Ethernet (10/100 Base-T) RJ-45 Connector
|
|
Power Supply
|
DC12V/POE (IEEE 802.3af)
|
|
Power Consumption
|
Max 5.5W
|
|
Operating Temperature
|
-35°C ~ 55°C (-31°F ~ 131°F )
|
|
Casing
|
Metal
|
|
Ingress Protection
|
IP67 waterproof
|
|
Certifications
|
CE/FCC
|
