①It is a ZigBee smart switch, and also is a multi-functional scene panel when connected
with Tuya smart gateway.
②Intelligent devices control, such as lights, curtains, air conditioners, and other smart home devices through panel. Smart scene
linkage, customize application scenarios and bind smart devices according to your needs. Only one touch to quickly start the smart
devices with preset scenarios, such as one-click to start the air conditioner, open the curtains and turn off the lights (home
mode).
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
GS-T3E
-
Product name::
-
4 Inch Scene Panel & 3 Gang Relay Switch 2 in 1
-
material:
-
ABS+PC
-
Work with:
-
Amazon Google Home
-
App Name:
-
Tuya/Smart Life app
-
WiFi model:
-
WiFi/Zigbee
-
Voltage:
-
100-240V
-
Application scenarios:
-
Control the lights, curtains, air conditioners
Quick Details
-
Feature:
-
wifi
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
smarsecur
-
Model Number:
-
GS-T3E
-
Product name::
-
4 Inch Scene Panel & 3 Gang Relay Switch 2 in 1
-
material:
-
ABS+PC
-
Work with:
-
Amazon Google Home
-
App Name:
-
Tuya/Smart Life app
-
WiFi model:
-
WiFi/Zigbee
-
Voltage:
-
100-240V
-
Application scenarios:
-
Control the lights, curtains, air conditioners
|
Product Size：86*86*35MM
Gift Box：100*100*55MM Quantity： 50PCS/Carton Master Carton：460*288*288MM Net Weight：218g Gross weight：240g Master weight：11.5kg |
Products Description
smart home tuya switch and scene panel to control lights with tuya/life smart mobile APP remote control function
|
item
|
4 inch scene penl & 3 Gang relay switch 2 in one
|
|
Network
|
Zigbee
|
|
Customized support
|
Software reengineering
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
SMARSECUR
|
|
Model Number
|
GS-T3E
|
|
Max. Current
|
16A
|
|
Max. Voltage
|
110V~250V
|
|
Mechanical Life
|
100000 Times
|
|
Product name
|
Zigbee smart home system
|
|
Size
|
86*86mm
|
|
Application
|
smart life APP
|
|
Voice Control
|
Alexa google home
|
|
Panel Material
|
4 inch display
|
|
Gang
|
3 Gang
|
|
Wireless Type
|
zigbee
|
|
Control
|
App remote control
|
|
Application scenarios
|
Control the lights, curtains, air conditioners,othersmart home devices
|
4 inch scene panel & 3 Gang relay switch 2 in one
It's a Zigbee smart switch with 3 gang relays.
1)T3E a zigbee smart switch with build-in 3 relay outputs to control lights.2)Compatible with European standard wall boxes, simple
in-wall installation.
Specification
① Network: ZigBee
② Operating System: RTOS
③ Storage: 16MB+2MB
④ Touch: G+F single touch
⑤ Display: 480*480 HD IPS LCD
⑥ CPU: Xtensa-LX7 dual core 240MHz
⑦ Relays: 3 gang switch (EU-type)
⑧ Touch screen G+G 5 touch industrial grade capacitive screen
⑨ Dimensions: 86*86*36mm
in-wall installation.
Specification
① Network: ZigBee
② Operating System: RTOS
③ Storage: 16MB+2MB
④ Touch: G+F single touch
⑤ Display: 480*480 HD IPS LCD
⑥ CPU: Xtensa-LX7 dual core 240MHz
⑦ Relays: 3 gang switch (EU-type)
⑧ Touch screen G+G 5 touch industrial grade capacitive screen
⑨ Dimensions: 86*86*36mm
Smart switch with build-in 3 realys
T3E is 3 Gang Smart switch,it can connect with maximum 200W Lamp dierctly.
Smart curtain control
You can wireless control the smart curton on/off directly from T3E touch screen smart panel,just link the on or off button of
curtain motor with smart panel scene button via smart life APP.
curtain motor with smart panel scene button via smart life APP.
Exquisite clock design
Exquisite clock with 3 lamps control can be designed as the home page, it’s much easily to turn on or turn off the lamps fastly.
One-click start scenario mode control
one touch to quickly start the smart devices with preset scenarios, such as one-click to start the air conditioner, open the
curtains and turn off the lights (home mode).
curtains and turn off the lights (home mode).

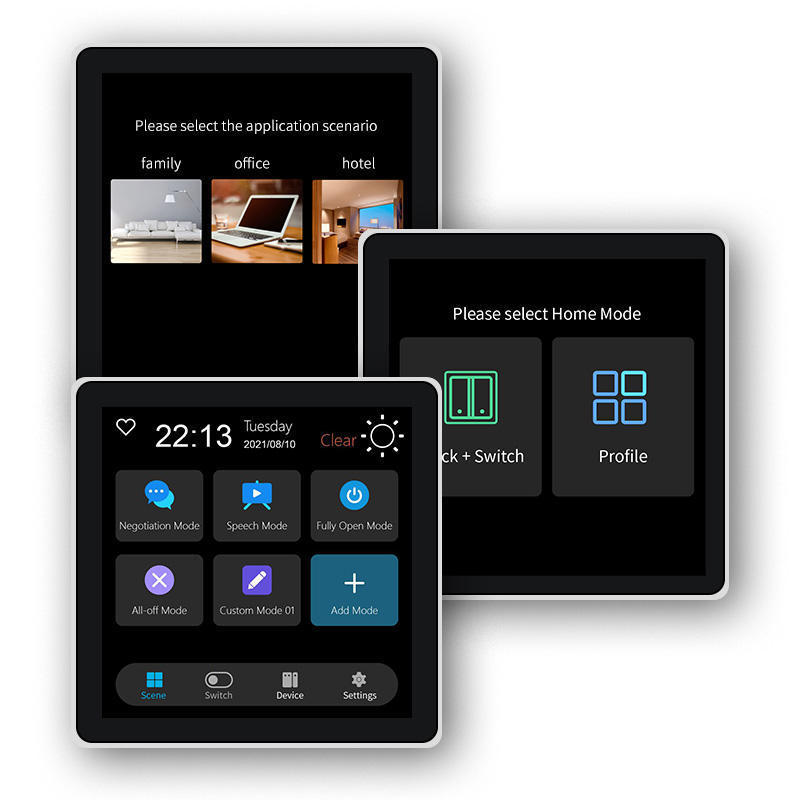

Quick control the device on LCD display
You can quick control all the wireless zigbee smart device via LCD display quickly,such as lights/curtain/Roller shutter/air
condioner
condioner
Air conditioner control
After link the universal remote infrared transcoder with the related keys of T3E ,then you can control the air conditioner
directly from LCD display.
directly from LCD display.
T3E is not the Smart gateway,but the scene panel and 3 Gang Switch two in one
T3E is a touch screen smart switch with 3 Gang,it's not the smart gateway,it control the other smart device,like smart
curtain,smart universal remote infrared transcoder,other smart switch,smart roller shutter via wireless scene setting finished by tuya APP or smart life APP
curtain,smart universal remote infrared transcoder,other smart switch,smart roller shutter via wireless scene setting finished by tuya APP or smart life APP
