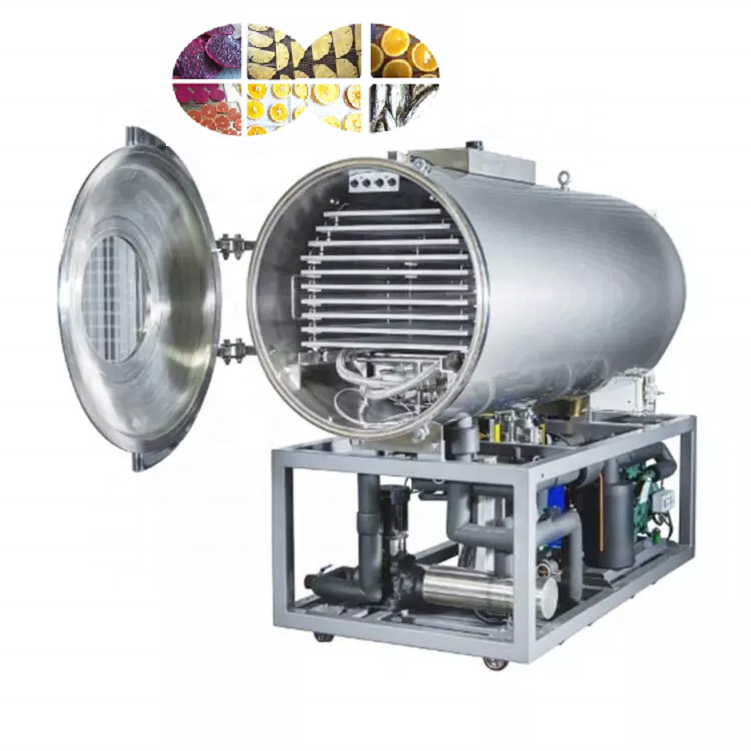

Commercial Vacuum Dryer for Fruit and Vegetable Food Freeze Dryer Freeze Dry Machine

Commercial Vacuum Dryer for Fruit and Vegetable Food Freeze Dryer Freeze Dry Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $18000

≥7 Sets

US $17500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Lemonmech

Voltage:: 220V

Power:: 16kw

Dimension(L*W*H):: 3200*1550*1850mm

Weight (KG):: 2000

Marketing Type:: vacuum lyophilizer

Product name:: freeze dryer machine for food

Name:: freeze dryer price

Keywords:: food drying machine dryer

Function:: vacuum freezing drying

Usage:: large freeze dryer

Feature:: food freeze dryer

Advantage:: High Performance

Product Type:: Dried Food

Color:: Picture

Quick Details

Type:: Vacuum Drying Equipment

Drying Capacity (kg):: 100

Place of Origin:: Henan, China

Brand Name:: Lemonmech

Voltage:: 220V

Power:: 16kw

Dimension(L*W*H):: 3200*1550*1850mm

Weight (KG):: 2000

Marketing Type:: vacuum lyophilizer

Product name:: freeze dryer machine for food

Name:: freeze dryer price

Keywords:: food drying machine dryer

Function:: vacuum freezing drying

Usage:: large freeze dryer

Feature:: food freeze dryer

Advantage:: High Performance

Product Type:: Dried Food

Color:: Picture

Commercial Vacuum Dryer for Fruit and Vegetable Food Freeze Dryer

Product Description

Advantages of freeze-dried food

Applicable scenarios: freeze-dried fruit products, freeze-dried vegetable products, freeze-dried fruit products, aquatic products and livestock meat.

The cylinder is made of 304 grade stainless steel, and the internal mirror surface is polished. The production process and requirements are higher than those of current domestic conventional food freeze-drying machine manufacturers.

Drying Silo Body

The drying silo body is round, the front end is open, the material trolley enters and exits from the front end, and the outer wall of the silo body is provided with a reinforcing ring(11 16 # channel steel) and base. The chamber body is made of SUS304 stainless steel. The reinforcing rib and base outside the silo are made of carbon steel.

Freeze Drying Machine Price

Siemens PLC control module, good man-machine interface, centralized, intuitive and convenient operation. It is equipped with emergency stop switch, general leakage protection switch, overtemperature alarm, and automatic power cut-off and alarm in case of sensor failure.

Technical parameter

Size	LM-5C	LM-10C	LM-20C	LM-30C
Control Mode	PLC+ human-machine interface	PLC+ human-machine interface	PLC+ human-machine interface	PLC+ human-machine interface
Operation Mode	Snap frozen, lyophilized	Snap frozen, lyophilized	Snap frozen, lyophilized	Snap frozen, lyophilized
Box material	304/316Stainless steel	304/316Stainless steel	304/316Stainless steel	304/316Stainless steel
Dry area square	5㎡	10㎡	20㎡	30㎡
Loading capacity (kg)	50	100	200	300
Material tray size	600/800/25	600/1000/25	600/1000/25	600/1000/25
Tray number	12	17	34	48
Raw material form	Disk or web disk	Disk or web disk	Disk or web disk	Disk or web disk
Partition number	13	18	36	45
Clapboard temperature	-55℃-120℃	-55℃-120℃	-55℃-120℃	-55℃-120℃
Clapboard medium	Silicone oil at low temperature	Silicone oil at low temperature	Silicone oil at low temperature	Silicone oil at low temperature
Catch water for 12 hours(kg)	50	100	200	300
Working vacuum degree	≦130Pa	≦130Pa	≦130Pa	≦130Pa
Working vacuum degree	﹤10Pa	﹤10Pa	﹤10Pa	﹤10Pa
Frost way	Hot water spraying	Hot water spraying	Hot water spraying	Hot water spraying
Operating ambient temperature	≦40℃	≦40℃	≦40℃	≦40℃
Rated power	16kw	28 kw	45kw	56kw
Dimensions (L, W, H mm)	320015501850	400016502100	530023002600	650023502700
