Quick Details
-
Product name:
-
Din standard flange dimensions blind for cast iron flange
-
Hardness:
-
-
Test pressure:
-
2.4 Mpa
-
Type:
-
WN flange
-
Working Pressure:
-
1.6MPa
-
Tensile Strength:
-
>330N/MM
-
Certificate:
-
ISO 9001 BV SGS
-
Sample:
-
Free
Quick Details
-
Standard:
-
ANSI, bs, DIN, GB, ISO, JIS, Jpi, ASME
-
Place of Origin:
-
Shanghai, China
-
Standard or Nonstandard:
-
Standard
-
Product name:
-
Din standard flange dimensions blind for cast iron flange
-
Hardness:
-
-
Test pressure:
-
2.4 Mpa
-
Type:
-
WN flange
-
Working Pressure:
-
1.6MPa
-
Tensile Strength:
-
>330N/MM
-
Certificate:
-
ISO 9001 BV SGS
-
Sample:
-
Free

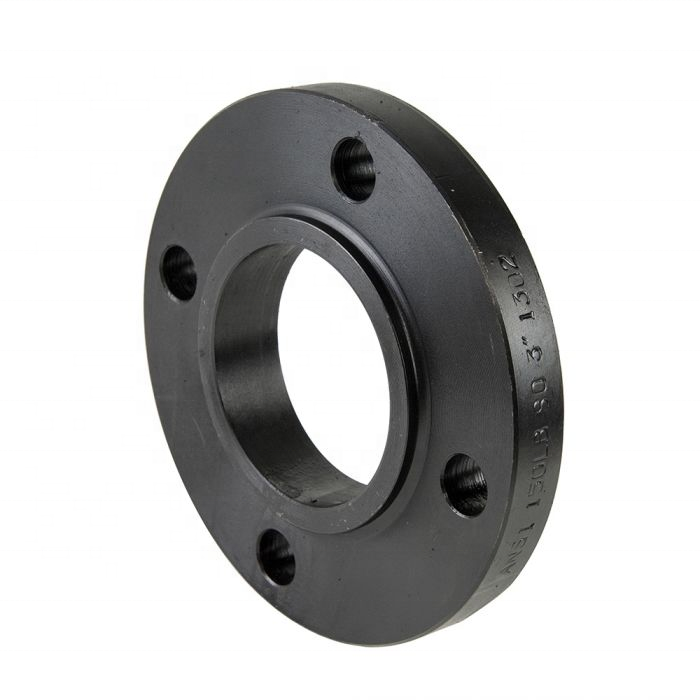

Din standard flange dimensions blind for cast iron flange
1) ANSI B16.5, ASME B16.47 FLANGE
Size range: 1/2" to 80" DN15 to DN2000
Design: welding neck, slip on, blind, socket welding, threaded, lap-joint
Pressure: 150#, 300#, 600#,900#,1500#, 2500#
Wall thickness for welding neck flange: STD, SCH40, SCH80, SCH160. SCHXXS
Material: carbon steel A105, stainless steel 304/304L, 316/316L
Coating: black paint, yellow transparent paint, cold and hot dip galvanize
Package: seaworthy plywooden case, wooden pallet
2) EN1092-1 FLANGE
Size range: DN15 to DN2000
Design: type01 plate flange, type02 loose flange, type05 blind flange, type11 welding necking
type12 slip on flange, type 13 threaded flange
Pressure: PN6, PN10, PN16, PN25, PN40, PN64, PN100
Material: carbon steel C22.8, S235, S235JR, P235GH, stainless steel: 304/304L, 316/316L
Coating: black paint, yellow transparent paint, cold and hot dip galvanize
Package: sea worthy plywooden case, wooden pallet
3) DIN FLANGE
Size range: DN15 to DN2000
Design: slip on flange DIN2573,2576,2502,2503, 2543,2545
welding neck falnge DIN2631, 2632,2633,2634,2635
blind flange DIN 2527 PN6, PN10, PN16, PN25, PN40
threaded falnge DIN2565,2566,2567,2567
loose flange DIN 2641,2642,2656,2673
Material: carbon steel ST37.2, stainless steel 1.4301, 1.4404
4) GOST FLANGE
Size range: DN15 to DN 2000
Design : plate falnge 12820-80, welding neck flange 12821-80
Pressure: PN6, PN10, PN16, PN25, PN40
Material: carbon steel CT-20, stainless steel 304/304L, 316/316L
Coating: rust-proof oil, cold and hot galvanize
Package: sea worthy plywooden case, wooden pallet
5) JIS B2220 FALNGE
Size ragne : 15A to 2000A
Design: SOP, BIND, SOH,
Puressure: 1K, 2K, 5K, 10K, 16K, 20K, 30K, 40K
Material: carbon steel SS400, stainless steel SUS304, SUS316
Coating : rust-proof oil, cold and hot galvanize
Packing: sea worthy plywooden case, wooden pallet
