Quick Details
-
Product name:
-

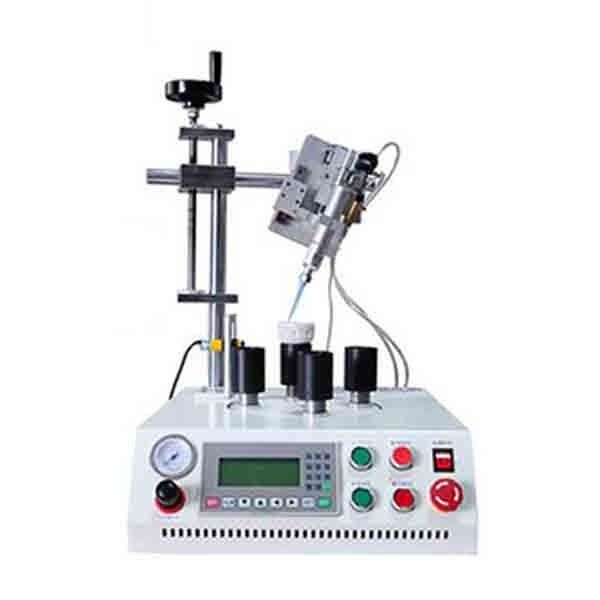

one head station dispensing machine
-
Control system:
-
Independent R&D
-
Characteristics:
-
High efficiency, intelligent and convenient
-
Driver Method:
-
Stepping Motor
-
Suitable Glue:
-
Silicone, UV glue, AB glue
-
Power supply:
-
Taiwan MingWei
-
Support Document:
-
CAD,CorelDRAW
-
Max Speed:
-
300-800mm /S
-
After-sales Service Provided:
-
Field maintenance and repair service
-
After Warranty Service:
-
Online support,Spare parts
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Carsto
-
Weight (KG):
-
65
-
Product name:
-
one head station dispensing machine
-
Control system:
-
Independent R&D
-
Characteristics:
-
High efficiency, intelligent and convenient
-
Driver Method:
-
Stepping Motor
-
Suitable Glue:
-
Silicone, UV glue, AB glue
-
Power supply:
-
Taiwan MingWei
-
Support Document:
-
CAD,CorelDRAW
-
Max Speed:
-
300-800mm /S
-
After-sales Service Provided:
-
Field maintenance and repair service
-
After Warranty Service:
-
Online support,Spare parts
![](https://cdn.bestsuppliers.com/seo_products_img/carstker/f10a59accafd3e049206d787cbdede2f.jpg!/rotate/180)
![](https://cdn.bestsuppliers.com/seo_products_img/carstker/4824e6fc23103422a0d4ba6ac69d0093.jpg!/rotate/180)
![](https://cdn.bestsuppliers.com/seo_products_img/carstker/9f786cf8687c36ccaecb3a0a18ca0c6c.jpg!/rotate/180)
Specifications
Working stroke
|
|
X / Y / Z: 600/300 / 100mm
|
|
|
|||
Maximum table load
|
|
10KG
|
|
|
|||
Z-axis load
|
|
4.5KG
|
|
|
|||
Moving speed X-Y / Z (m / sec)
|
|
0.1-800 / 400MM
|
|
|
|||
Repeatability
|
|
±0.01mm/200mm
|
|
|
|||
Program recording capacity
|
|
1000 groups, 4000 points per group
|
|
|
|||
Movement mode
|
|
circular
|
|
|
|||
Edit mode
|
|
teaching box or computer file input
|
|
|
|||
I/O signal
|
|
12 Inputs / 12 0utputs
|
|
|
|||
Input power
|
|
AC / 200V350W
|
|
|
|||
Working environment temperature
|
|
-5 ℃ ~ 50 ℃
|
|
|
|||
Working environment humidity
|
|
20-90% (no condensation)
|
|
|
Product manual
・
Chinese and English handheld LCD screen operation, easy programming, easy to learn and understand.
・ It has the functions of drawing points, lines, faces, arcs, circles, and irregular tween continuous tween to realize any 3D
non-planar trajectory path.
・ Excellent consultation function. Supports advanced functions such as array, graphical browsing, 3D ellipse, common graphics library insertion, group editing, etc.
・ Large capacity 2G high-speed MiNi SD file memory, which can store 999 dispensing process files.
・ The amount of glue, thickness, glue speed, dispensing time, and stopping time can be set by parameters.
・ With the special dispensing controller, the glue output is stable, the glue is clean, and the glue is not leaked.
・ With automatic anti-curing function, effectively prevent the glue from solidifying the needle
・ Powerful PC compatibility. With Logoshop software, you can import various file formats (such as: .NC, AL, .DXF, JPG, .BMP,scanner, etc.) generated by mainstream design software (such as AUTOCAD, Coraldraw, etc.)
・ Suitable for liquid dispensing, such as UV glue, AB glue, EPOXY (black glue), white glue, EMI conductive glue, SILICON, epoxy resin, instant glue, silver glue, red glue, solder paste, thermal paste, solder paste , Transparent paint, screw fixing agent,etc.
・ It has the functions of drawing points, lines, faces, arcs, circles, and irregular tween continuous tween to realize any 3D
non-planar trajectory path.
・ Excellent consultation function. Supports advanced functions such as array, graphical browsing, 3D ellipse, common graphics library insertion, group editing, etc.
・ Large capacity 2G high-speed MiNi SD file memory, which can store 999 dispensing process files.
・ The amount of glue, thickness, glue speed, dispensing time, and stopping time can be set by parameters.
・ With the special dispensing controller, the glue output is stable, the glue is clean, and the glue is not leaked.
・ With automatic anti-curing function, effectively prevent the glue from solidifying the needle
・ Powerful PC compatibility. With Logoshop software, you can import various file formats (such as: .NC, AL, .DXF, JPG, .BMP,scanner, etc.) generated by mainstream design software (such as AUTOCAD, Coraldraw, etc.)
・ Suitable for liquid dispensing, such as UV glue, AB glue, EPOXY (black glue), white glue, EMI conductive glue, SILICON, epoxy resin, instant glue, silver glue, red glue, solder paste, thermal paste, solder paste , Transparent paint, screw fixing agent,etc.
