Quick Details
-
Weight:
-
0.5-2 t
-
Size:
-
Customized Size
-
Power:
-
0.08-0.17 KW
-
Productivity:
-
3/5/10/20 m3/d
-
Weight (KG):
-
1000 kg
-
Name:
-
WET Sewage Treatment Plant Tank
-
Model:
-
WET-3/5/10/20
-
Scale (m3/d):
-
3/5/10/20
-
Dimension L*W*H(m):
-
Customized Size
-
Installed Power (kW):
-
0.08/0.09/0.15/0.17
-
Population Serviced (per):
-
30/50/100/200
-
Area (m2):
-
1.77/2.54/4.52/7.07
-
Net Weight (t):
-
0.5/0.7/1/2
-
Technology:
-
Modified A/O+Wetland
-
Installation Method:
-
Standard semi-underground type
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
HYHH
-
Material:
-
Seaworthy Packing
-
Weight:
-
0.5-2 t
-
Size:
-
Customized Size
-
Power:
-
0.08-0.17 KW
-
Productivity:
-
3/5/10/20 m3/d
-
Weight (KG):
-
1000 kg
-
Name:
-
WET Sewage Treatment Plant Tank
-
Model:
-
WET-3/5/10/20
-
Scale (m3/d):
-
3/5/10/20
-
Dimension L*W*H(m):
-
Customized Size
-
Installed Power (kW):
-
0.08/0.09/0.15/0.17
-
Population Serviced (per):
-
30/50/100/200
-
Area (m2):
-
1.77/2.54/4.52/7.07
-
Net Weight (t):
-
0.5/0.7/1/2
-
Technology:
-
Modified A/O+Wetland
-
Installation Method:
-
Standard semi-underground type
PRODUCT OVERVIEW

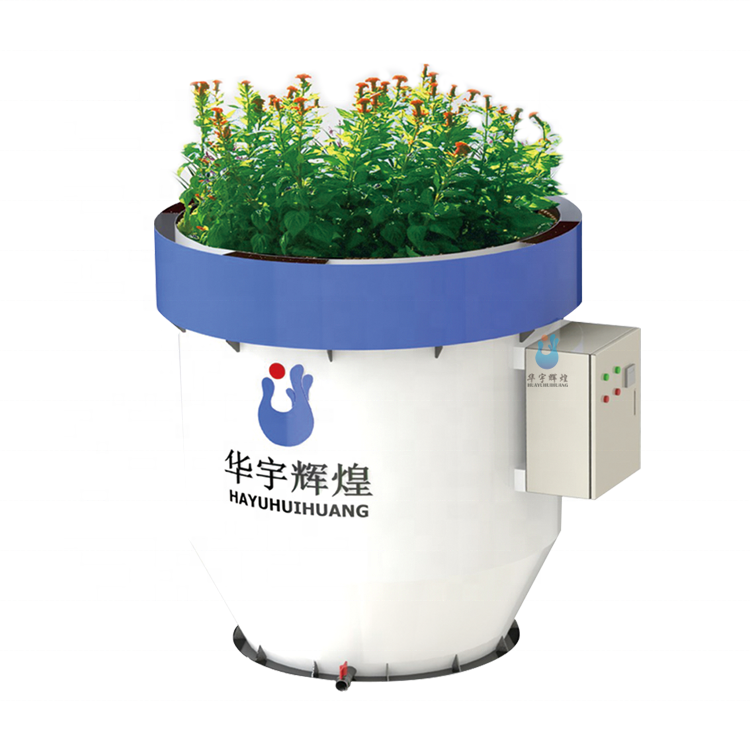

WET Sewage Treatment Plant Tank
WET Sewage Treatment Plant Tank (WET Sewage Tank) is developed for the point pollution source with domestic sewage generation volume of 1~20m
3
/d. WET is a high-tech product that combines microbial degradation, special filler adsorption, plant ecological transformation and other physical, chemical and biological effects to degrade pollutants in water. It has the characteristics of convenient transportation, quick installation, high efficiency and energy saving, and no need for manning.
PRODUCT DISPLAY
PRODUCT ADVANTAGES
The WET Sewage Tank design consists of a combination of five basic functional units, as shown in the following figure.
Equipment Features
①
Excellent water quality:
strong impact load resistance, good treatment effect and stable water output.
②
Highly integrated:
compound tank design, good hydraulic flow state, no clogging.
③
Easy to operate:
less power equipment, simple control and operation, maintenance-free.
④
Cost efficient:
low operating energy consumption, no need for pipe network construction, in-situ treatment and in-situ discharge.
Process Flow
WET Sewage Tank is based on the traditional A/O biochemical contact oxidation process, combined with the microporous aeration technology, three-phase separation and clarification technology, improved wetland ecological purification technology and special gas lifting and pushing hydraulic circulation tank design. The above technologies are skillfully combined to make microorganisms degrade organic pollutants in the part-oxygen reaction zone, and meanwhile adsorbing ammonia nitrogen and total phosphorus pollutants in the wetland ecological zone , absorbing and decomposing them through plant roots, forming a double degradation function of pollutants, thus achieving efficient water purification.
PRODUCT PARAMENTERS
|
Model
|
WET-3
|
WET-5
|
WET-10
|
WET-20
|
|||
|
Scale (m
3
/d)
|
3
|
5
|
10
|
20
|
|||
|
Dimension L*W*H (m)
|
Φ1.5×1.6
|
Φ1.8×1.6
|
Φ2.4×2.0
|
Φ3.0×2.3
|
|||
|
Installed Power (KW)
|
0.08
|
0.09
|
0.15
|
0.17
|
|||
|
Population Serviced (per)
|
30
|
50
|
100
|
200
|
|||
|
Area (m
2
)
|
1.77
|
2.54
|
4.52
|
7.07
|
|||
|
Net Weight (t)
|
0.5
|
0.7
|
1
|
2
|
|||
|
Technology
|
Modified A/O+Wetland
|
|
|
|
|||
|
Installation Method
|
Standard semi-underground type
|
|
|
|
|||
|
Voltage (V)
|
220
|
220
|
220
|
220
|
|||
Water Quality Standards for Inlet and Outlet
|
No.
|
Indicators
|
Inlet Water Quality
|
Discharge Water Quality
|
|
1
|
COD
Cr
(mg/L)
|
< 350
|
< 60
|
|
2
|
BOD
5
(mg/L)
|
< 150
|
< 20
|
|
3
|
NH
3
-N (mg/L)
|
< 35
|
< 8
|
|
4
|
TN (mg/L)
|
< 45
|
< 20
|
|
5
|
TP (mg/L)
|
< 4
|
< 1
|
|
6
|
SS (mg/L)
|
< 200
|
< 20
|
Note: (1) The outlet water quality meets the relevant local discharge standards.
(2) Among them, WET-3 and WET-5 water outlets do not have requirements for TP and TN.
APPLICATION SCOPE
SUCCESSFUL PROJECT
FAQ
(1) Q: Are you factory or tarade company?
A: We are a comprehensive ecological environmental protection industry service provider and national high-tech enterprise. It integrates environmental protection technology research and development, engineering design, equipment production and sales, as well as engineering construction operation services.
(2) Q: What's your production level?
A: We have core competence of R&D technology, advanced equipment, mature project experience.A number of patents and certificates, R&D product variety. More than 90 patents and software copyrights have been obtained, more than 50 kinds of sewage treatment, more than 30 kinds of solid waste treatment.
(3) Q: When's the delivery time?
A: Normal delivery time 30~90 days depending on the model and product.
(4) Q: How much the transportation freight of products?
A: The freight depends on the weight and packing size, as well as your area.
With good quality and reasonable prices, We are welcomed by customers from all over the world.
(5)
Q:
Where is the delivery place? What kind of logistics is used?
A: Under normal circumstances, the goods are shipped at Tianjin Port and shipped by sea. If there are special circumstances or you have other needs, we will communicate and negotiate in advance.
(6) Q:
Is the pricing final?
A: The pricing range is for reference only and is not the final price. Our products can be customized and will be designed and equipped with appropriate components according to your needs. Please be sure to communicate with us before placing an order, your consultation is always welcome!
