Heavy Duty Hydraulic Crusher hydraulic shear pulverizer for 35-45 Ton Excavator

Heavy Duty Hydraulic Crusher hydraulic shear pulverizer for 35-45 Ton Excavator

FOB Reference Price: Get Latest Price

≥1 Sets

US $6000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Condition:: new

Weight:: 1200, 1500kg

Suitable Excavator(ton):: 1-70T

Height:: 40mm

Opening:: hydraulic

Application:: Concrete crushing, steel recycling

Jaw opening:: 0-890MM

Working Pressure:: 280KG/Bar

Suitable excavator:: 20-22ton

Color:: Black

Certification:: ISO9001

OEM:: YES

After Warranty Service:: Video technical support

Quick Details

Place of Origin:: Shandong, China

Brand Name:: SC

Model Number:: SC350

Condition:: new

Weight:: 1200, 1500kg

Suitable Excavator(ton):: 1-70T

Height:: 40mm

Opening:: hydraulic

Application:: Concrete crushing, steel recycling

Jaw opening:: 0-890MM

Working Pressure:: 280KG/Bar

Suitable excavator:: 20-22ton

Color:: Black

Certification:: ISO9001

OEM:: YES

After Warranty Service:: Video technical support

Product Overview

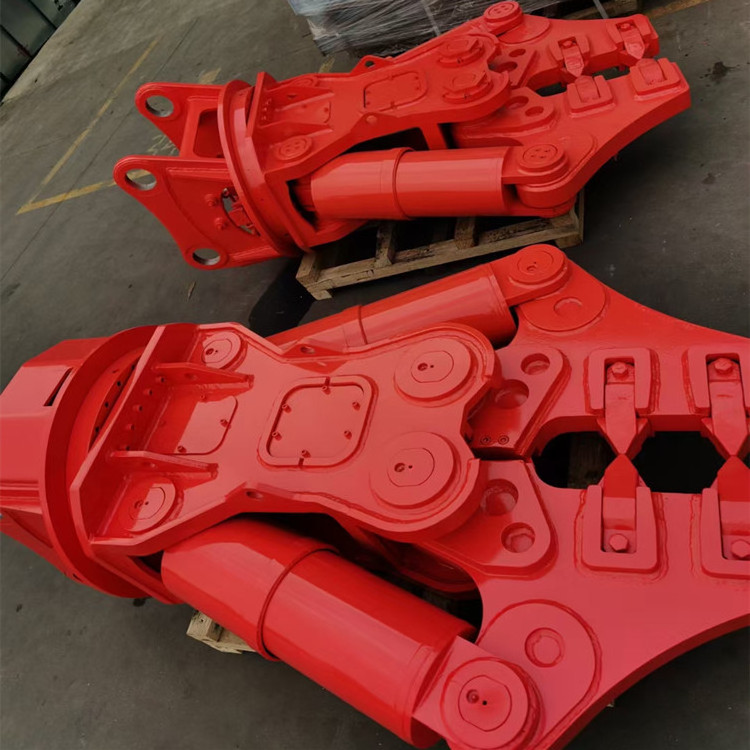

SC HYDRAULIC SHEARS/ HYDRAULIC CRUSHERS

Now SC DEMOLITION CUTTERS separated to two serials, one is DEMOLITION CRUSHERS /pulverizer, mainly for crushing building concrete on demolition applications. According to different excavator weight and different working environment, there is many different jaw designs for your choose. Another serial is HYDRAULIC SHEAR, which can handle everything from structural steel to mixed scrap, tire on salvage recycling yard . Especially, we design the VEHICLE CUTTER for dismantle scrap cars with cutting cable, pipe, I-beam, and more.Both serials, we supply a wide range of models to suit all your processing needs!

A type

Designed with small hydraulic machines in mind. Can be supplied to fit skid loaders, mini excavators and loader booms . The weight is light and smart, very suitable for domestic demoliton working.

B type

This type optimally design suitable for primary demolition and secondary reduction of concrete structures or recycling operation. It efficiently separate rebar from concrete in the secondary reduction stage.

C type

Two special design cylinders make it more powerful. Concrete crushing forces increase when jaws meet resistance, as the exclusive heavy duty cylinder intensifier converts flow to pressure.We designed teeth type as below photo which extend the service life and can change teeth easily.

A type

This type entirely covered by the blade. This accentuates the operating and maintenance performances of the shear.It is efficient and can handle everything from structural steel to mixed scrap.

B type

Two special design cylinders make the shear more powerful. Full 360° power rotation with large jaw opening. Cutting edges and bits can be exchanged by the customer himself.

C type Vehicle cutter

Special design for dismantle vehicles, long mouth can clamp the steel closely and avoiding falling, flatting the steel for easy cutting. The sharp teeth can tear the driving plate. Full 360° power rotation with large jaw opening. Cutting edges can be exchanged by the customer himself.

PRODUCT SPECIFICATIONS

Below is speficitions for concrete crusher B type. For other's specifications, please contact us, we will give you the best solution for you.

Item/model			SC15	SC20	SC25	SC30
Applicable excavator/ton			10-15	18-24	25-30	35-46
Weight/kg			800	1350	2100	2550
Opening/mm			600	800	980	1100
Depth/mm			700	1000	1210	1220
Height/mm			1900	2550	2860	2910
Width/mm			420	560	680	720
Length/mm			1200	1620	1700	1780
Rated pressure kg/cm2			300	320	320	320
Rated flow L/m			220	240	240	280
Crushing force	Middle/ton	80	100	110	150
Crushing force		Tip/ton	65	80	90	100
Cycle time	Open/sec	2.8	2.2	1.8	1.8
Cycle time		Close/sec	3.2	2.5	2.2	2.0
