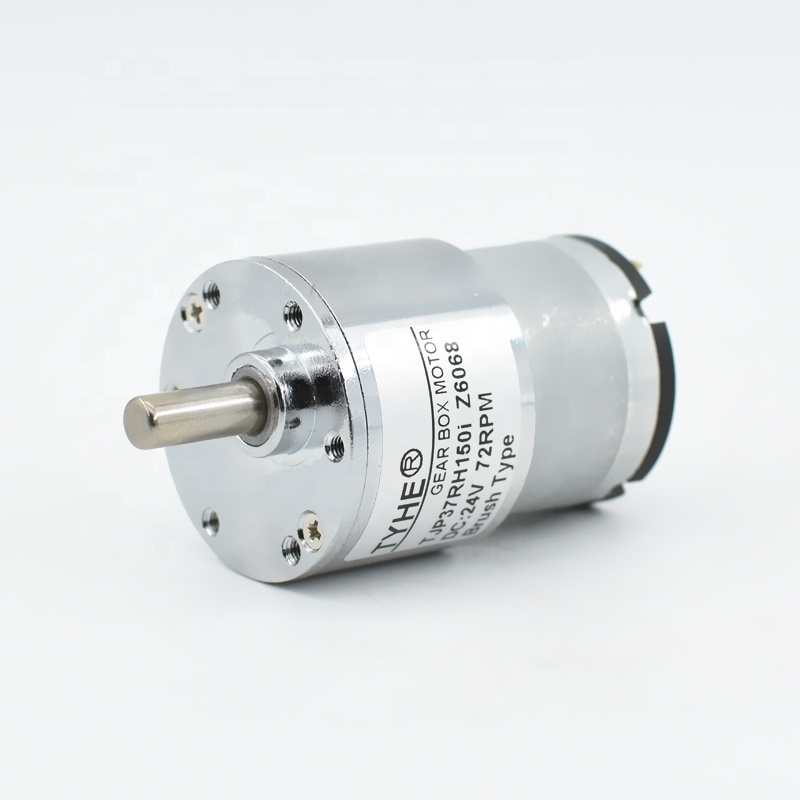

Reversible 37mm micro gearbox 3 volt 6v 12v 24v PMDC low speed 20 rpm high torque dc gear reductor motor for automatic cooker

Reversible 37mm micro gearbox 3 volt 6v 12v 24v PMDC low speed 20 rpm high torque dc gear reductor motor for automatic cooker

FOB Reference Price: Get Latest Price

≥2 Pieces

US $5

≥100 Pieces

US $2.8

≥500 Pieces

US $2.7

≥1000 Pieces

US $2.6

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: TYHE

Model Number:: TJP37RH

Torque:: 0.3-10kg.cm

Product Name:: TJP37RH

DC motor type:: PMDC Gear Motor

Ratio:: 6~981

Color:: Silver Grey

Diameter:: 37mm

Shaft:: 6mm

Length:: 57mm

Weight:: 400g

Typical Applications:: Vending machine

Quick Details

Speed(RPM):: 2.5~1500rpm

Continuous Current(A):: 0.05-0.85A

Efficiency:: IE 2

Place of Origin:: Zhejiang, China

Brand Name:: TYHE

Model Number:: TJP37RH

Torque:: 0.3-10kg.cm

Product Name:: TJP37RH

DC motor type:: PMDC Gear Motor

Ratio:: 6~981

Color:: Silver Grey

Diameter:: 37mm

Shaft:: 6mm

Length:: 57mm

Weight:: 400g

Typical Applications:: Vending machine

Products Parameters

Other Products

We provide all kinds of permanent magnet DC gear motor, including spur gear motor, planetary gear motor, worm gear motor and flat gear motor.

* DC spur gear motors

Diameter: 16mm, 17mm, 25mm, 33mm, 37mm, 42mm, 50mm, 60mm;
Power: 1watt to 70watts; Speed: 1rpm to 2000rpm; Torque: 1gf.cm to 80kgf.cm;
* DC planetary gear motors
Diameter: 16mm, 22mm, 24mm, 28mm, 30mm, 32mm, 36mm, 38mm, 42mm, 45mm, 50mm, 55mm, 57mm, 60mm;
Power: 1watt to 180watts; Speed: 1rpm to 2000rpm; Torque: 1gf.cm to 450kgf.cm;
* DC flat gear motors
Gearbox size: 64*38mm, 65*48mm, 96*60mm, 102*60mm flat gearbox;
Power: 1watt to 70watts; Speed: 10rpm to 500rpm; Torque: 0.5kgf.cm to 80kgf.cm;
* DC worm gear motors
Type: WGM58, WGM46, WGM83;
Power: 0.5watts to 50watts; Speed: 1rpm to 200rpm; Torque: 0.5kgf.cm to 50kgf.cm.
