Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WELL MOTOR
-
Model Number:
-
JGY370-2430 BRUSHLESS
-
Torque:
-
1.5-25KG.CM
-
Certification:
-
RoHS
-
Keywords:
-
DC GEAR Motor
Quick Details
-
Speed(RPM):
-
6-150rpm
-
Continuous Current(A):
-
Below 130A
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WELL MOTOR
-
Model Number:
-
JGY370-2430 BRUSHLESS
-
Torque:
-
1.5-25KG.CM
-
Certification:
-
RoHS
-
Keywords:
-
DC GEAR Motor

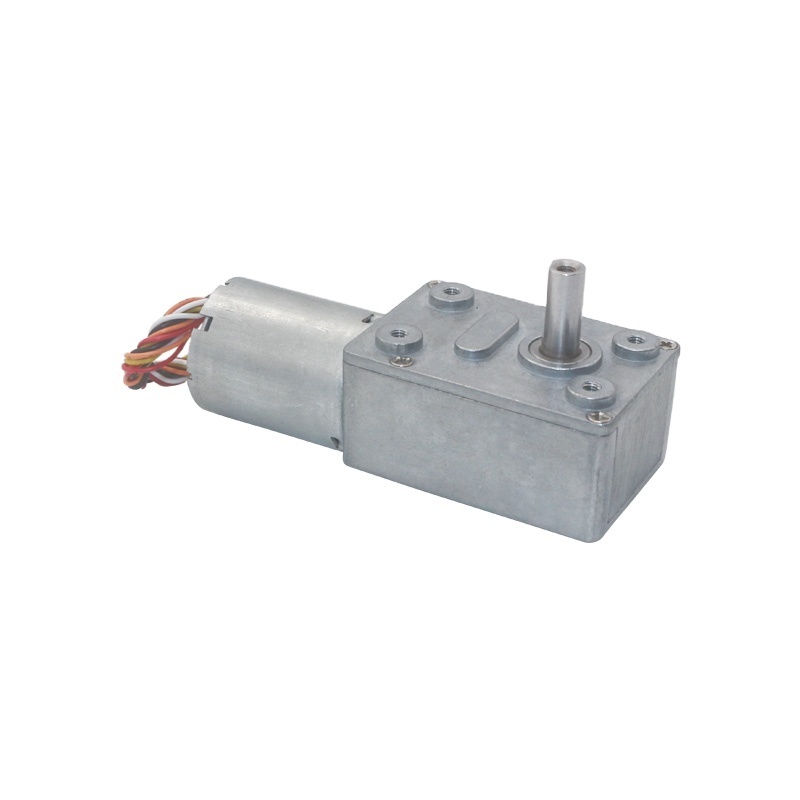

12v dc brushless worm gear motor
Main Features
*32*46mm worm gearbox plus 370 24*30 mm brushless motor, With very long working hours.
*Small size dc gear motor with low speed and big torque.
*Good ability to self-lock,Safe using.
*32*46mm gear motor provide 1.0 Nm torque and more reliable.
*Suitable to small diameter, low noise and big torque application.
*DC Gear motors can match encoder,11ppr .
*Very long life, Reliable quality.
*Reduction ratio: Except below gear ratio,still have 146,188,300,438,563,700,900,1020,1313,1688,2700
Motor drawing and specification reference :
|
Rote Volt DC12V JGY370-2430
|
||||||||
|
Reduction ratio
|
40
|
65
|
150
|
200
|
260
|
340
|
600
|
1000
|
|
No load Current (MA)
|
≤130
|
≤130
|
≤130
|
≤130
|
≤130
|
≤130
|
≤130
|
≤130
|
|
No load RPM
|
150
|
90
|
40
|
30
|
23
|
18
|
10
|
6
|
|
Load torque (Kg,cm)
|
1.5
|
3
|
7
|
9
|
12
|
15
|
21
|
25
|
|
Load RPM
|
100
|
70
|
30
|
22
|
17
|
13
|
7
|
4
|
|
Load Current (A)
|
≤0.8
|
≤0.8
|
≤0.8
|
≤0.8
|
≤0.8
|
≤0.8
|
≤0.8
|
≤0.8
|
|
Max Torque (Kg.cm)
|
2.5
|
4.2
|
10
|
13
|
17
|
22
|
Max 25KG
|
|
|
Stall Current (A)
|
1.8
|
1.8
|
1.8
|
1.8
|
1.8
|
1.8
|
Fobid locked
|
|
