Quick Details
-
color:
-
single / double / customized
-
Axle:
-
Electric Brake
-
Wheel:
-
five wheels
-
Floor:
-
18mm Plywood+10mm Rubber
-
Certificate:
-
ISO9001:2008
-
Standard:
-
Australian Standard
-
Light:
-
Led Light Sets
-
Load type:
-
Slant
Quick Details
-
Brand Name:
-
Jinan Jinli
-
Place of Origin:
-
Shandong China
-
Material:
-
Hot Dip Galvanized RHS
-
color:
-
single / double / customized
-
Axle:
-
Electric Brake
-
Wheel:
-
five wheels
-
Floor:
-
18mm Plywood+10mm Rubber
-
Certificate:
-
ISO9001:2008
-
Standard:
-
Australian Standard
-
Light:
-
Led Light Sets
-
Load type:
-
Slant
Product Overviews

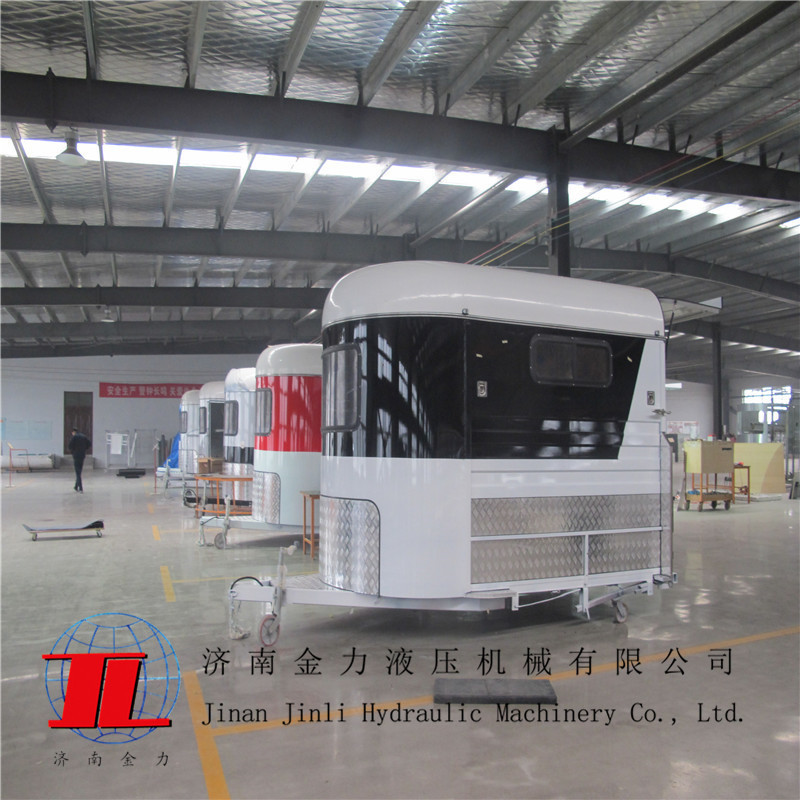

Horse trailer 2 horse angle load fiberglass roof horse trailer
- Australian standard
- fiberglass roof horse trailer
| Model NO. | 2HAL-S | Origin | Jinan ,shandong,PRC |
| Overall Dimension | 4110*2280*2590mm | Dimension of Body | 3260*1980*2230mm |
| Maximum Internal Dimension of Body | 3235*1930*2155mm | Color | Single or double or customized |
| Production Capacity | 20 Units /Month | Shipping | Via se from Qingdao Port |
| Packing | Loading in Bulk Fixed on the Floor of Container | Payment | T/T 30% deposit in advance ,the balance should be paid against copy of B/Ldate |
| Empty Weight | 1300kg | Max Payload | 2400kg |
| MOQ | 3Units in 1*40'HQ |
| MODEL:2HAL-S |
| 1.TRAILER MATERIALS |
| 1.1 CHASSIS MATERIAL double hot dip galvanized RHS(3.5mm-4.0mm) |
| 1.2 FRAME MATERIAL double hot dip galvanized RHS (2.5mm) |
| 1.3 BODY PANAL galvanized (1.2mm) |
| 1.4 ROOF special molded FRP 3260*1980 |
| 1.5 NUTS & BOLTS stainless steet |
| 2. WHEELS & TYPES |
| 2.1 WHEEL RIM 14" aluminium alloy rims |
| 2.2 TYPES 185R14C |
| 2.3 SPARE WHEEL one |
| 3. AXLES & SUSPENSIONS |
| 3.1 AXLES two special trailer axles |
| 3.2 LEAF SPRINGS roll rocker tandem spring suspension 5 plates |
| 3.3 BRAKE SYSTEM single axle electric brake-away systems |
| 4. WINDOWS & DOORS |
| 4.1 FRONT WINDOW 1220*610 |
| 4.2 SIDE WINDOWS two sliding windows ,one each side |
| 4.3 VENTS two |
| 4.4 SIZE OF SIDE DOOR 1755*615 |
| 4.5 REAR UPPER DOOR 2020*1065 |
| 4.6 RAMP DOOR 2020*1210 |
| 4.7 REAR UPPER & RAMP DOOR STRUT high -intensity anti-rust strut |
| 4.8 HINGES FOR REAR UPPER DOOR special 6mm diameter copper hinges |
| 5. DRAWBAR |
| 5.1 DRAWBAR CHECKER PLATE 1.2mm aluminium |
| 5.2 DRAWBAR SAFETY CHAIN two |
| 5.3 BRACING WHEEL one |
| 6.LIGHTS & RETRO REFLECTRS |
| 6.1 TRAILER PLUSS spure 7 wire plug |
| 6.2 SIDE LAMPS 6 |
| 6.3 REAR LAMPS LED GROUP |
| 6.4 REAR LAMPS STAND aluminium |
| 6.5 RETRO REFLECTORS8 |
| 7. MUDGUARD |
| 7.1 MUDGUARD TYPE external mudguard |
| 7.2 MUDGUARD CHECKER PLATE 1.2mm aluminium |
| 7.3 PEDAL & ALUMINIUM STEP 1.2mm aluminium decoration board |
| 8. INTERIOR & EXTERIOR |
| 8.1 A KITCHEN none |
| 8.2 HORSE PROTECTION FOR FRAME full paded |
| 8.3 HORSE RING four |
| 8.4 RUBBER MATTING FOR RAMP DOOR 10mm rubber matting |
| 8.5 RUBBER MATTING FLOOR 10mm rubber matting |
| 8.6 RUBBER MATTING FOR INNER SIDE PANEL 6mm rubber matting |
| 8.7 WOOD BOARD FOR FLOOR * RAMP DOOR 18mm hardwood plywood |
| 8.8 RUG RACK side |
| 8.9 SADDLE rack in saddle box |
| 8.10 SADDLE BOX 1200mm height for 2 saddles |
| 8.11 PAINTING single or customized |
| 9. DIMENSIONS |
| 9.1 OVERALL DIMENSIONS (L*W*H:MM)4110*2280*2590 |
| 9.2 BODY DIMENSIONS (L*W*H:MM)3260*1980*2230 |
| 9.3 INNER DIMENSIONS (L*W*H:MM)3235*1930*2155 |
