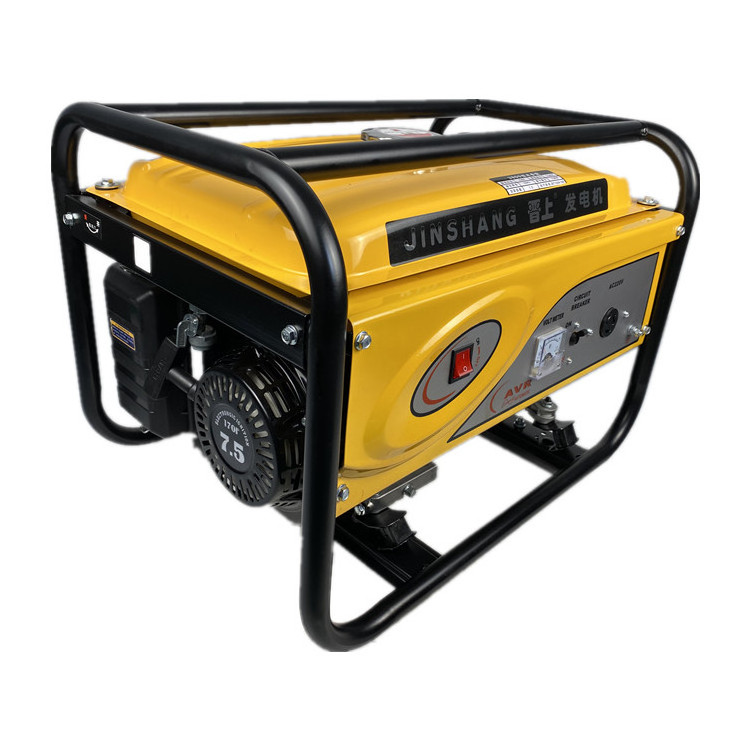

JINSHANG (CHINA) 3KW Portable honda Single Phase 3800 Gasoline Generator 5kva honda generator prices

JINSHANG (CHINA) 3KW Portable honda Single Phase 3800 Gasoline Generator 5kva honda generator prices

FOB Reference Price: Get Latest Price

≥1 Pieces

US $119

≥100 Pieces

US $109

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: JS3800

Rated Voltage:: AC 230V

Rated Current:: 12.7A

Speed:: 3300-4500r/min

Frequency:: 50HZ/60HZ

Fuel Tank:: 25L

Cooling method:: Air-cooling System

Starting system:: Hand Pull Start or electric start

Rated Voltage(V):: AC 230V

Fuel Consumption(g/hp. hr):: 374

Max Power(kw):: 3.2

Air Valve:: OHV

Lgnition System:: CID

Displacement(ml):: 242

Oil Alert System:: YES

Certification:: ce/gs

Quick Details

Warranty:: 1year

Place of Origin:: Jiangxi, China

Brand Name:: JINSHANG

Model Number:: JS3800

Rated Voltage:: AC 230V

Rated Current:: 12.7A

Speed:: 3300-4500r/min

Frequency:: 50HZ/60HZ

Fuel Tank:: 25L

Cooling method:: Air-cooling System

Starting system:: Hand Pull Start or electric start

Rated Voltage(V):: AC 230V

Fuel Consumption(g/hp. hr):: 374

Max Power(kw):: 3.2

Air Valve:: OHV

Lgnition System:: CID

Displacement(ml):: 242

Oil Alert System:: YES

Certification:: ce/gs

Product Overview

High Performance Silent Gasoline Generator

High performance silent gasoline generator with lower consumption. It is c onvenient for home and outdoor use in emergencies.

FEATURES AT A GLANCE

Product Features for Home and outdoor use gasoline generator

* Honda type gasoline engine

* 100% copper wire alternator

* Heavier and thicker pump casing

* Exquisite workmanship

*Use Steel disc carburetor

PRODUCT SPECIFICATIONS

3800W-25000E Gasoline engine main technical specifications

Model	Rated voltage(V)	Rate current(A)	Max power(KW)	Rate powder(KW)
3800	1P AC230	12.7	3.2	2.8
6500	1P AC120 1P AC230 3P AC380	23	5.5	5
7500			27	7	6.5
10000			33	8.5	8
12000			38	9.5	9
13000			40	10	9.5
15000E				12	11
18000E				16	15
25000E				20	18

Portable Gasoline Generator China 3800W 2.8kw 170F engine generator technical parameter for your reference, for more information or items please contact us for inquiry.

	Item	Data
Model	JS3800
Rated Power(kw)	Rated Voltage(V)	AC 230V
		Rated Power(kw)	2.8
		Max Power(kw)	3
Engine	Engine Model	JS170
		Cooling System	Air cool
		Air Valve	OHV
		Lgnition System	CID
		Displacement(ml)	242
		Fuel Tank Capacity(L)	25
		Oil Alert System	YES
		Fuel Consumption(g/hp. hr)	374
		Start Mode	Recoil/Electric
		LengthWidthHeight（mm）	620460460
Complete Machine	Weight(Kg)	42
		IP Grade	IP21
		Insulation grade	F
Our key accessories are supplied by Honda manufacturer, so the quality is better.

PRODUCT CONFIGURATION

Our Advantages

Buffer support frame to prevent motor damage

Adopt copper sheet carburetor (extended service life)

The material more heavier. After heat treatment, good heat resistance and longer life.

Recoil pull ring, 1.35/1.8M pull rope, start 13,000 times not broken

OHV Engine

Effective fuel consumption

Economic

Double-layer fan blades

better quality and better heat dissipation

MODERN WORKSHOPS

Exhibition

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

1, Each set gasoline generator is packed in an export carton and then tied down with tie straps
2, Multiple pieces of generators are placed on pallets and wrapped with stretch film
3, Trucks are delivered to designated ports(Shanghai/Ningbo/Nanchang/Shenzhen ports) and loaded into containers
