Quick Details
-
Cooling/Heating:
-
Cooling Only
-
Power Source:
-
Electric
-
App-Controlled:
-
NO
-
Fixed Frequency/Variable Frequency:
-
Fixed frequency
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
JHCOOL
-
Model Number:
-
JH-10LY
-
Power (W):
-
5000
-
Voltage (V):
-
380
-
Maximum Airflow Rate:
-
6000cmh
-
Featured Function:
-
energy saving
-
Recommended Room Size（square feet）:
-
150-250sqm
-
Industrial Cooling Capacity:
-
25kw
-
Unit Energy Efficiency Ratio:
-
4.98
-
Protection Against Electric Shock:
-
Class I
-
Maxinum Air Volume:
-
6000cmh
-
Applicable Area:
-
150-250sqm
-
Water Inlet Pipe:
-
Dn20
-
Rated voltage/ frequency:
-
380V/ 50Hz
-
Maximum operating current:
-
9.5A
Quick Details
-
Capacity (btu):
-
＞12001
-
EER:
-
4.1-6
-
Type:
-
Floor Standing Air Conditioners
-
Cooling/Heating:
-
Cooling Only
-
Power Source:
-
Electric
-
App-Controlled:
-
NO
-
Fixed Frequency/Variable Frequency:
-
Fixed frequency
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
JHCOOL
-
Model Number:
-
JH-10LY
-
Power (W):
-
5000
-
Voltage (V):
-
380
-
Maximum Airflow Rate:
-
6000cmh
-
Featured Function:
-
energy saving
-
Recommended Room Size（square feet）:
-
150-250sqm
-
Industrial Cooling Capacity:
-
25kw
-
Unit Energy Efficiency Ratio:
-
4.98
-
Protection Against Electric Shock:
-
Class I
-
Maxinum Air Volume:
-
6000cmh
-
Applicable Area:
-
150-250sqm
-
Water Inlet Pipe:
-
Dn20
-
Rated voltage/ frequency:
-
380V/ 50Hz
-
Maximum operating current:
-
9.5A

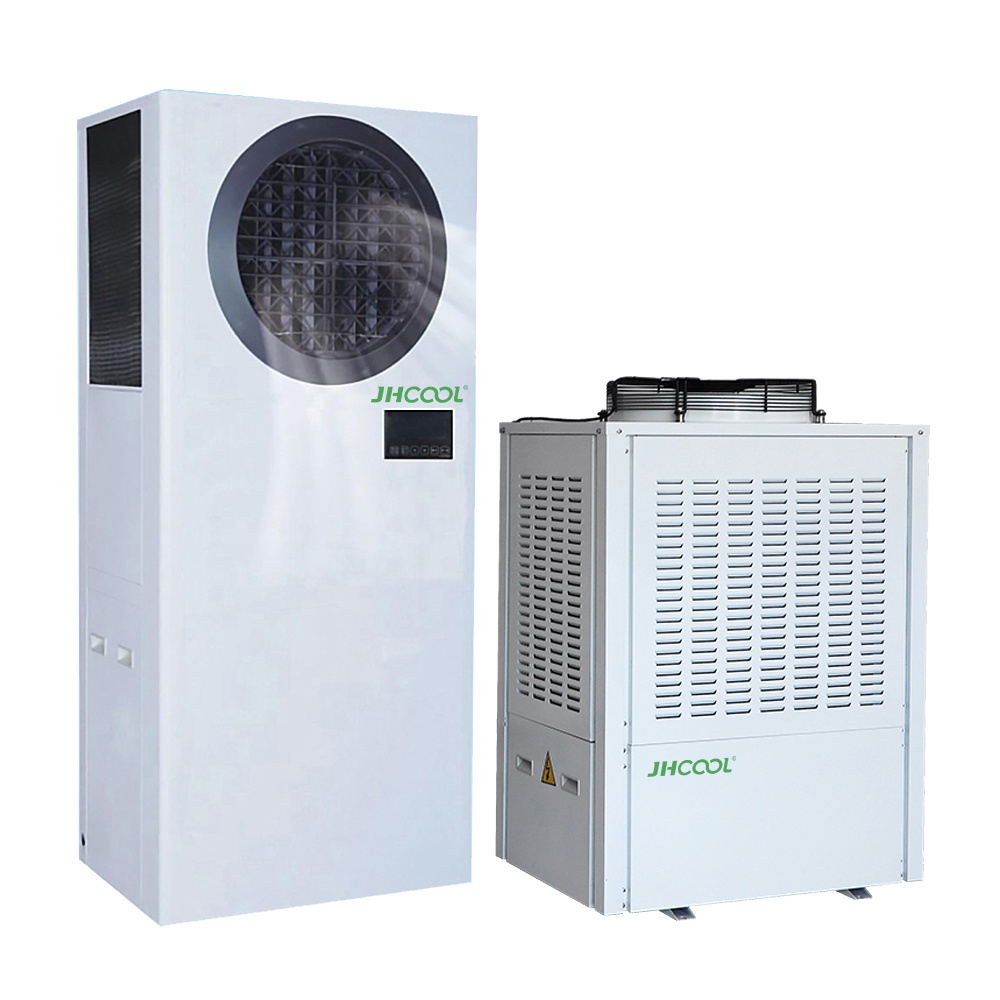

JHCOOL 6000cmh Energy Saving Floor Standing Split Air Conditioner Evaporative Air Conditioner For Factory
water evaporative air conditioner is also called low consumption air conditioner and Evaporative condensing air conditioning. It combined working method of water cooling, air cooling and compressor. Firstly, the external machine cool the circulating water through cooling pad water evaporative. After the water temperature drops to normal, it flows through the heat exchange system of the internal machine (at this time, the compressor Has been operated, the refrigerant has been compressed into a high temperature and high pressure state), which takes away most of the heat of the high temperature refrigerant to form a normal temperature refrigerant. The normal temperature refrigerant is throttled by the expansion valve and becomes low temperature and low pressure refrigerant, which is transported to the evaporator of the internal machine to blows out cold wind;
The circulating water that has cooled the high-temperature and high-pressure refrigerant is transported to outdoor unit by a water pump. At the same time, it flows through the evaporative cooling pad, thereby turning the high-temperature water into normal temperature water and flowing through the room again. The machine cools down the refrigerant under high temperature and high pressure, and continuously circulates the operation to maximize the energy efficiency ratio, thereby reducing energy consumption.
Evaporative power-saving air-conditioning unit is composed of compressor, condenser, expansion valve, evaporator, cooling pad and so on.
Features of water evaporative air conditioners:
1.Energy-saving electricity-saving
E lectricity consumption is 5kw/h to cool an area of 150-250 square meters.
It is just 1/4 energy consumption of traditional air conditioner.
N
o need for external copper pipes, lower cost.
2. Bigger airflow and bring purified cool air.
C ool the air down more quickly , and the cooling efficiency is high er .
3. longer cool air delivery and bigger area to cover
4. Cool the air fast, Decrease temperature quickly .
5. Wide ly application: O ne piece can cover 150-250 sqm.
It's suitable for product exhibition halls, school canteens, restaurants, workshops, exhibitions , farms and other places.
|
Model |
Outdoor machine parameters ( Evaporative Air Cooler ) |
Indoor machine parameters ( Air Conditioner ) |
|
JH-10LY |
Rated voltage/ frequency:380V/50Hz |
Rated voltage/ frequency:380V/50Hz |
|
Fan type: Axial |
Rated input power of main engine:5KW |
|
|
Fan power:0.22kw |
Industrial cooling capacity:25KW |
|
|
Airflow:5000m3/h |
EER(energy efficiency ratio):4.98 |
|
|
Current:0.8A |
Maximum operating current:9.5A |
|
|
Noise: <50dB(A) |
Fan type: Axial |
|
|
Water pump voltage/ frequency:380V/50Hz |
Fan voltage/ frequency:220V/50Hz |
|
|
Water pump power:0.37kw |
Fan power:90W |
|
|
Water pump lift:13m |
Airflow:6000m3/h |
|
|
Water tank:65L |
Circulating water capacity:3.5m³/h |
|
|
Water consumption:30L/h |
Electric shock proof protection class:Class I |
|
|
Tap water inlet pipe:Dn20 |
Noise: <60dB(A) |
|
|
Water Inlet and outlet dimension:Dn32 |
Cooling area:150-250sqm |
|
|
Cooling pad dimension:
|
Refrigerant type: R410 |
|
|
Net weight:88kg |
Net weight:138kg |
|
|
Gross weight:93kg |
Gross weight:144kg |
|
|
Operating weight:158kg |
|
|
|
Dimension:910*660*1310mm |
Dimension:790*560*1780mm |
|
|
Packing size:930*660*1450mm |
Packing size:795*565*1885mm |
This model is very easy to install. It is very popular for exhibition halls, school canteens, clothes factories, restaurants, workshops, exhibitions, farms and other places.
