Quick Details
-
Filling Accuracy:
-
99
-
Voltage:
-
220V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Paixie
-
Dimension(L*W*H):
-
2260*1260*1900
-
Weight:
-
300 KG
-
Name:
-
Cream filling machine
-
Material:
-
SUS 304
-
Product advantage:
-
high precision
-
Capacity:
-
1000-5000bph
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Bottle type:
-
Jar
-
HS code:
-
8422 3030 90
-
Eligibility rate:
-
≥99%
-
After Warranty Service:
-
Video technical support
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, 12000BPH, 6000BPH, 400BPH, 20000BPH, 16000BPH, 500BPH, 2000BPH, 1000BPH, 100BPH, 200BPH
-
Packaging Material:
-
Glass, Metal, Paper, Plastic, Wood
-
Filling Material:
-
Milk, Water, Oil, Juice, Powder
-
Filling Accuracy:
-
99
-
Voltage:
-
220V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Paixie
-
Dimension(L*W*H):
-
2260*1260*1900
-
Weight:
-
300 KG
-
Name:
-
Cream filling machine
-
Material:
-
SUS 304
-
Product advantage:
-
high precision
-
Capacity:
-
1000-5000bph
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Bottle type:
-
Jar
-
HS code:
-
8422 3030 90
-
Eligibility rate:
-
≥99%
-
After Warranty Service:
-
Video technical support
Product Description

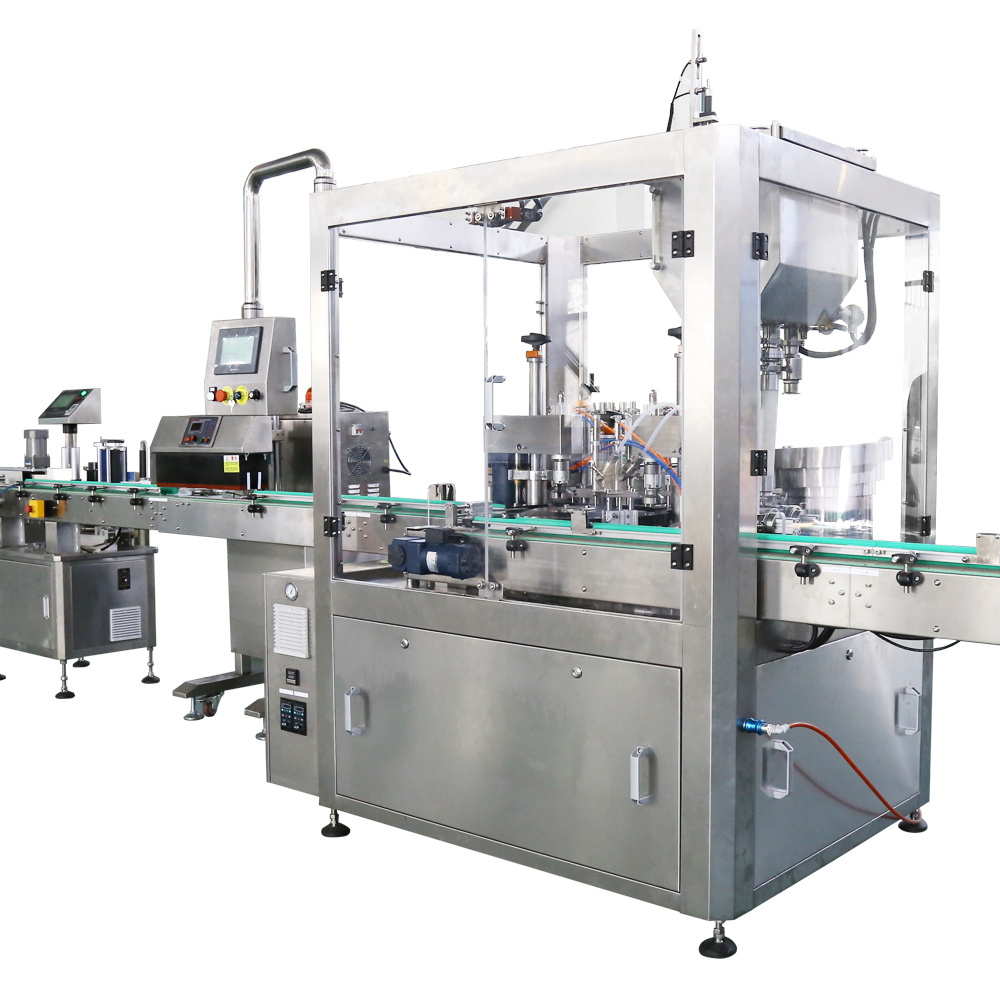

The fully automatic small vail bottle liquid filling capping machine is with CE & ISO 9001 certification.The machine is applied to glass or plastic bottles with different sizes and shapes, and suitable for different filling volume. By adjusting the filling volume on touch screen, it can fill liquid with quick speed and high precision. It is widely used for essential oil, eye dropper, perfume, nail polish, lotions and other vial bottle filling.
Features:
1. Can customize products according to customer bottle samples.
2. Easy to adjust filling parameter with PLC and touch screen automation control system.
3. The whole body is made of 304 stainless steel, compact structure, beautiful appearance, with stable and reliable performance,easy maintenance.
4. Adopted piston quantitative, use well-known brand accessories, filling accuracy, adaptability.
5. It complies with CE certification.
1. Can customize products according to customer bottle samples.
2. Easy to adjust filling parameter with PLC and touch screen automation control system.
3. The whole body is made of 304 stainless steel, compact structure, beautiful appearance, with stable and reliable performance,easy maintenance.
4. Adopted piston quantitative, use well-known brand accessories, filling accuracy, adaptability.
5. It complies with CE certification.
|
Output
|
1000-6000BPH, or customized
|
|
Filling Volume
|
10-100ml, or customized
|
|
Air compressor
|
0.6-0.8Mpa
|
|
Filling Material
|
Cream , Jelly ,vaseline ,perfume ,
|
|
Control
|
PLC and Touch Screen
|
|
Driving Motor
|
Servo Motor
|
|
Capping motor
|
Magnetic motor
|
|
Torque
|
0-100N
|
|
Detection
|
Photocell
|
|
Filling Type
|
Piston Pump, Peristaltic Pump
|
|
Power
|
1.5KW
|
|
Material
|
SS304
|
|
Capping Head
|
Screwing, Pressing, Crimping Head ( According to the cap type)
|
|
Suitable Industry
|
Cosmetic, food, detergent, etc
|
|
Human protection
|
Complete safety switch alarm
|
|
Cap type
|
Dropper ,screw, spray,pump cap ,gun cap
|
This is wheel type piston pump filling machine which is designed for small bottle and low capacity filling task, driven by servo motor with high precision. The filling nozzles are made of SS316, resist high temperature filling. drip-proof , via
photoelectric detection
to ensure no bottle no filling.
Servo motor driving
Different from traditional air driving , paixie customize machine by servo motor , it is contributed to precision control and different volume change ,everything will be done by HMI adjustment
Servo filling station construction
1- High precison , we control the servo motor by PLC , the servo contected with the piston pump by screw , the motor running up ,push the screw , then screw push piston at the opposite , so actually the filling volume is equal to motor running distance .
Three-jar capping head application
The three-Jaw capping head is the newest design for different cap size , it is easy adjusted .
Magnetic cap torquing motor
To be different from traditional capping motor , Paixie uses magnetic motor in torquing , you can set all power as the cap need so that we prevent cap from broken or liquid leaking beucase of toure over or few
Shanghai Paixie Packing Machinery Co.,Ltd is a professional manufacturer of filling line for over 12 years, customized filling lines for different industry customers like food and beverage, cosmetic, chemical industry and etc, lots of successful cases for your reference.
The full automatic liquid filling machine is designed for saving time on adjusting and testing machine, it can fill liquid or paste accurately by entering a certain filling volume. The PLC control method makes it easy to operate and thigh speed working efficiency is ideal for different scale production. It can work with the automatic capping machine and labeling machine and other equipment based on customer requirement.
PAIXIE filling line is widely used in the following industries:
* Beverage Filling Machine Line (such as water, juice, beer, liquor, vodka, wine etc.)
* Food Filling Machine Line (such as honey, sauce, oil, chocolate, vinegar etc. )
* Chemical Filling Machine Line (such as syrup, eye drop, alcohol, reagent, ampoul, syringe etc. )
* Cosmetics Filling Machine Line (such as perfume, body spray, nail polish, cream, lotion, detergent, hand gel etc. )
* Food Filling Machine Line (such as honey, sauce, oil, chocolate, vinegar etc. )
* Chemical Filling Machine Line (such as syrup, eye drop, alcohol, reagent, ampoul, syringe etc. )
* Cosmetics Filling Machine Line (such as perfume, body spray, nail polish, cream, lotion, detergent, hand gel etc. )
