Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YUANKY
-
Model Number:
-
EZC100H
-
Rated Frequency (Hz):
-
50/60
-
Poles Number:
-
3P 4P
-
Rated voltage:
-
240/415V
-
Rated current:
-
400A
-
Breaking capacity:
-
100KA
-
Standard:
-
IEC60947-2
-
Rated frequency:
-
50/60 Hz
-
Type:
-
Moulded Case
Quick Details
-
Breaking Capacity:
-
100/50KA
-
Rated Voltage:
-
AC240/415V
-
Rated Current:
-
250,315,400A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YUANKY
-
Model Number:
-
EZC100H
-
Rated Frequency (Hz):
-
50/60
-
Poles Number:
-
3P 4P
-
Rated voltage:
-
240/415V
-
Rated current:
-
400A
-
Breaking capacity:
-
100KA
-
Standard:
-
IEC60947-2
-
Rated frequency:
-
50/60 Hz
-
Type:
-
Moulded Case
RELATED PRODUCTS
PRODUCT PARAMETER
|

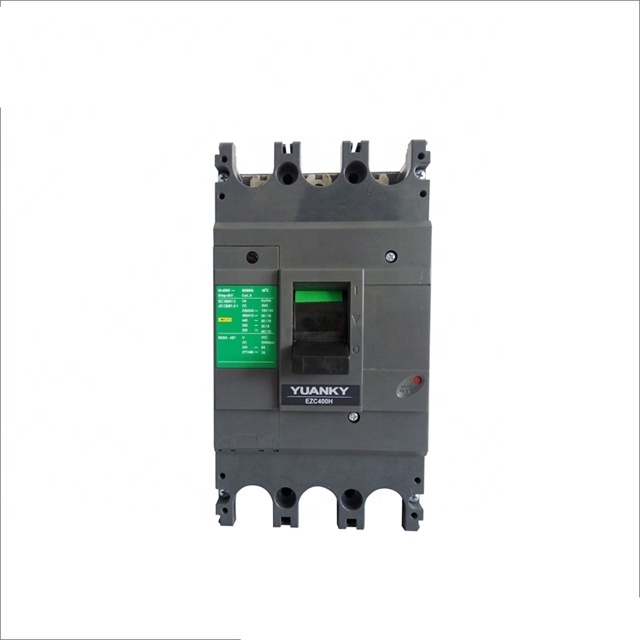

Product name
|
Moulded Case Circuit Breaker
|
|
Pole
|
3P,4P
|
|
Rated Current(A)
|
250,315,400A
|
|
Rated Voltage (V)
|
AC240/415V
|
|
Standard
|
IEC60947-2
|
|
Rated Frequency
|
50/60Hz
|
|
Ultimate breaking capacity Icu
|
100kA rms
|
|
Tripping Curve
|
C
|
|
Rated Short-circuit Capacity
|
100/50KA
|
|
Electro-mechanical Endurance
|
3000 cycles
|
|
Installation
|
Bolt on
|
|
|
Panel mounting
|
