- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
WZ-LAN
-
Model Number:
-
WL-M808G-4SFP-I
-
Place of Origin:
-
guangdong
-
Chipset:
-
RTL8382MI+RTL8214FCI
-
Number of Ports:
-
8 x 10/100/1000Mbps ports 4 x 1000Mbps SFP ports 1x Console port
-
MAC Address Table:
-
8K
-
Switching Capacity:
-
56Gbps
-
Standard Protocol:
-
IEEE 802.3i,IEEE 802.3u,IEEE802.3ab,IEEE802.3x, IEEE802.3az
-
Power Supply:
-
12-56V DC
-
Power Consumption:
-
Maximum: 15W
-
Dimensions:
-
150x120x45mm (Rail type Aluminum case)
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
56Gbps
-
Brand Name:
-
WZ-LAN
-
Model Number:
-
WL-M808G-4SFP-I
-
Place of Origin:
-
guangdong
-
Chipset:
-
RTL8382MI+RTL8214FCI
-
Number of Ports:
-
8 x 10/100/1000Mbps ports 4 x 1000Mbps SFP ports 1x Console port
-
MAC Address Table:
-
8K
-
Switching Capacity:
-
56Gbps
-
Standard Protocol:
-
IEEE 802.3i,IEEE 802.3u,IEEE802.3ab,IEEE802.3x, IEEE802.3az
-
Power Supply:
-
12-56V DC
-
Power Consumption:
-
Maximum: 15W
-
Dimensions:
-
150x120x45mm (Rail type Aluminum case)
Product Description

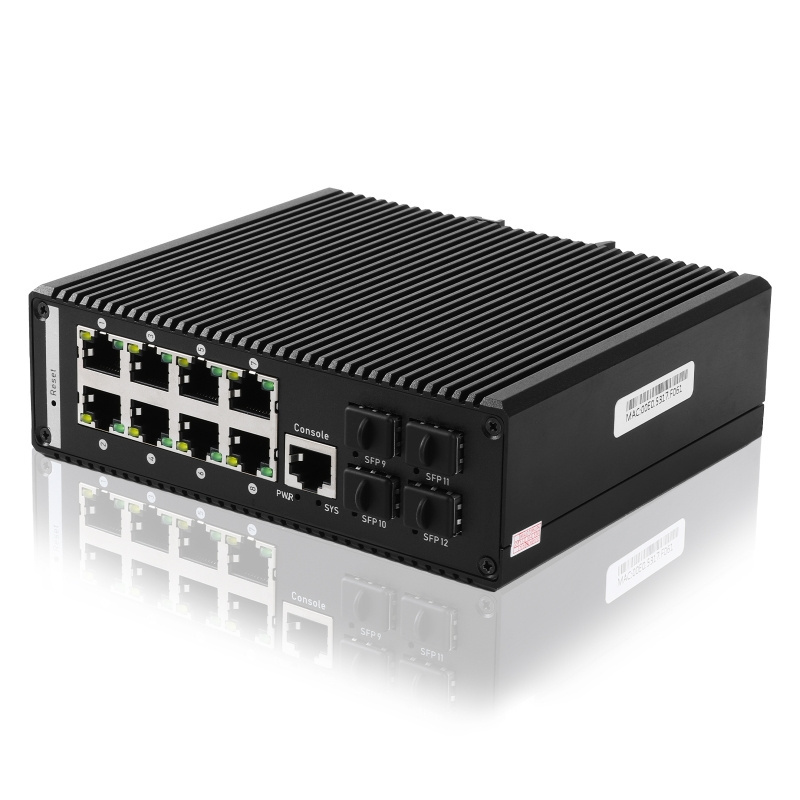

The WL-M808G-4SFP-I is a full Gigabit managed industrial switch.It has 8*10/100/1000M RJ45 ports and 4*100/1000 SFP fiber slot. With abundant layer 2 management features supported, the WL-M808G-4SFP-I is capable of delivering high throughput to even the most demanding edge-of-network workgroups, while in small networks it can act as a backbone for gigabit switches and high-speed servers. 4SFP slots provide greater network flexibility.
The WL-M808G-4SFP-I is designed exclusively for the networking needs of growing businesses, with an extensive suite of management and security features available. These devices are cost-effective for small and medium-sized businesses, providing ideal solutions for a variety of network scenarios.
1) Full Gigabit Ports: 8× gigabit ports and 4× gigabit SFP provide high-speed connections.
2) Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
3) Switching Capacity 56Gbps
4) Supports Web-based GUI, Command Line Interface (CLI) through telnet, SNMP
Product Feature
5) Supports IEEE 802.3i，IEEE 802.3u，IEEE802.3ab，IEEE802.3z，IEEE802.3x，IEEE802.3az.
6) Supports MAC address auto-learning and auto-aging.
7) Store and forward mode operates.
8) LED indicators for monitoring power, link/activity
9) Support QoS, port mirroring, link aggregation protocol.
10) Rail mounted
Hardware&software
|
Chipset
|
|
|
RTL8382MI+RTL8214FCI
|
||
|
Standards
|
|
|
IEEE 802.3i，IEEE 802.3u，IEEE802.3ab，IEEE802.3x， IEEE802.3az
|
||
|
Number of Ports
|
|
|
8 x 10/100/1000Mbps ports
4 x 1000Mbps SFP ports
1x Console port
|
||
|
|
|
|
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
1000Base-T: UTP category 5e, 6 cable (maximum 100m)
1000Base-X:MMF,SMF
|
||
|
Transfer Method
|
|
|
Store-and-Forward
|
||
|
MAC Address Table
|
|
|
8K
|
||
|
Switching Capacity
|
|
|
56Gbps
|
||
|
Packet Forwarding Rate
|
|
|
41.67Mpps
|
||
|
Packet Buffer
|
|
|
4.1Mbit
|
||
|
Jumbo Frame
|
|
|
12KBytes
|
||
|
|
Per Device
|
|
Power, System
|
||
|
|
Per Port
|
|
Link/Activity,
|
||
|
Power Supply
|
|
|
12V-56V DC
|
||
|
Power Consumption
|
|
|
Maximum: 15W
|
||
|
Dimensions (W×D×H)
|
|
|
150x120x45mm (Rail type Aluminum case)
|
||
|
|
|
|
Operating Temperature: -40℃~85℃
Storage Temperature: -40℃~85℃
Operating Humidity: 10%~90%
non-condensing Storage humidity: 5%~90% non-condensing
|
||
