Quick Details
-
Model Number:
-
TSD101201
-
Brand Name:
-
TSD
-
Pressure:
-
1.6Mpa
-
Connection:
-
Thread
-
Material:
-
Stainless steel
-
Medium:
-
Water
-

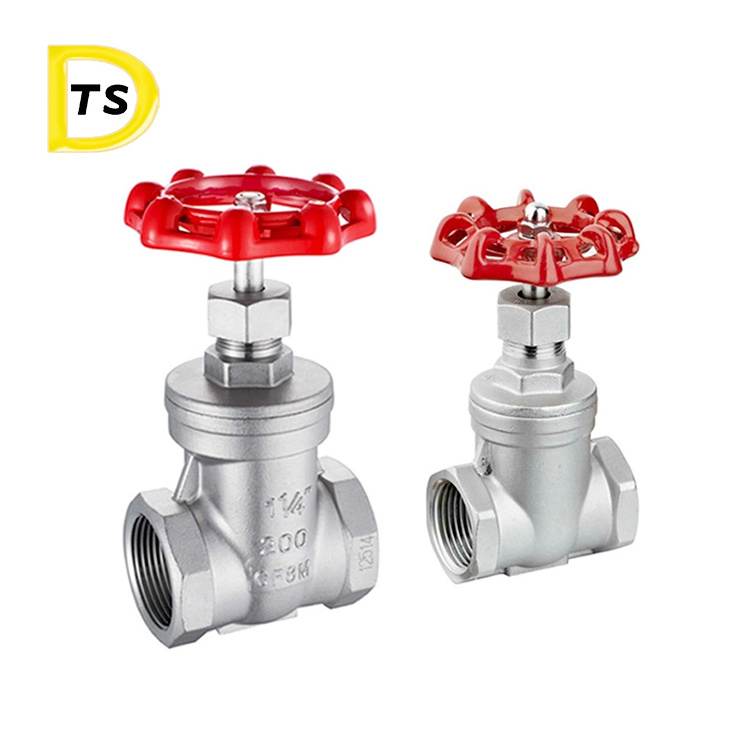

Product name:
-
Stainless steel Gate Valve
-
Type:
-
Gate Valves
Quick Details
-
Port Size:
-
DN15;DN20;DN25;DN32;DN40;DN50;DM65;DN80;DN100
-
Warranty:
-
1 years
-
Place of Origin:
-
Jilin, China
-
Model Number:
-
TSD101201
-
Brand Name:
-
TSD
-
Pressure:
-
1.6Mpa
-
Connection:
-
Thread
-
Material:
-
Stainless steel
-
Medium:
-
Water
-
Product name:
-
Stainless steel Gate Valve
-
Type:
-
Gate Valves
Product Description
|
item
|
Gate Value
|
|
Application
|
General
|
|
Size
|
DN15-DN100
|
|
Media
|
Water
|
|
Port Size
|
DN15;DN20;DN25;DN32;DN40;DN50;DN65;DN80;DN100
|
|
Pressure
|
PN16
|
|
Connection
|
Female Thread
|
|
Flow
|
2way
|
Feature:
Specification
|
Caliber
|
Length(mm)
|
Weight(kg)
|
|
DN15
|
52
|
0.37
|
|
DN20
|
57
|
0.45
|
|
DN25
|
61
|
0.56
|
|
DN32
|
71
|
0.77
|
|
DN40
|
75
|
1.2
|
|
DN50
|
85
|
1.71
|
|
DN65
|
103
|
3.03
|
|
DN80
|
112
|
3.93
|
Note: The parameter dimensions of the product are for reference only!
Please contact customer service for specific information.
