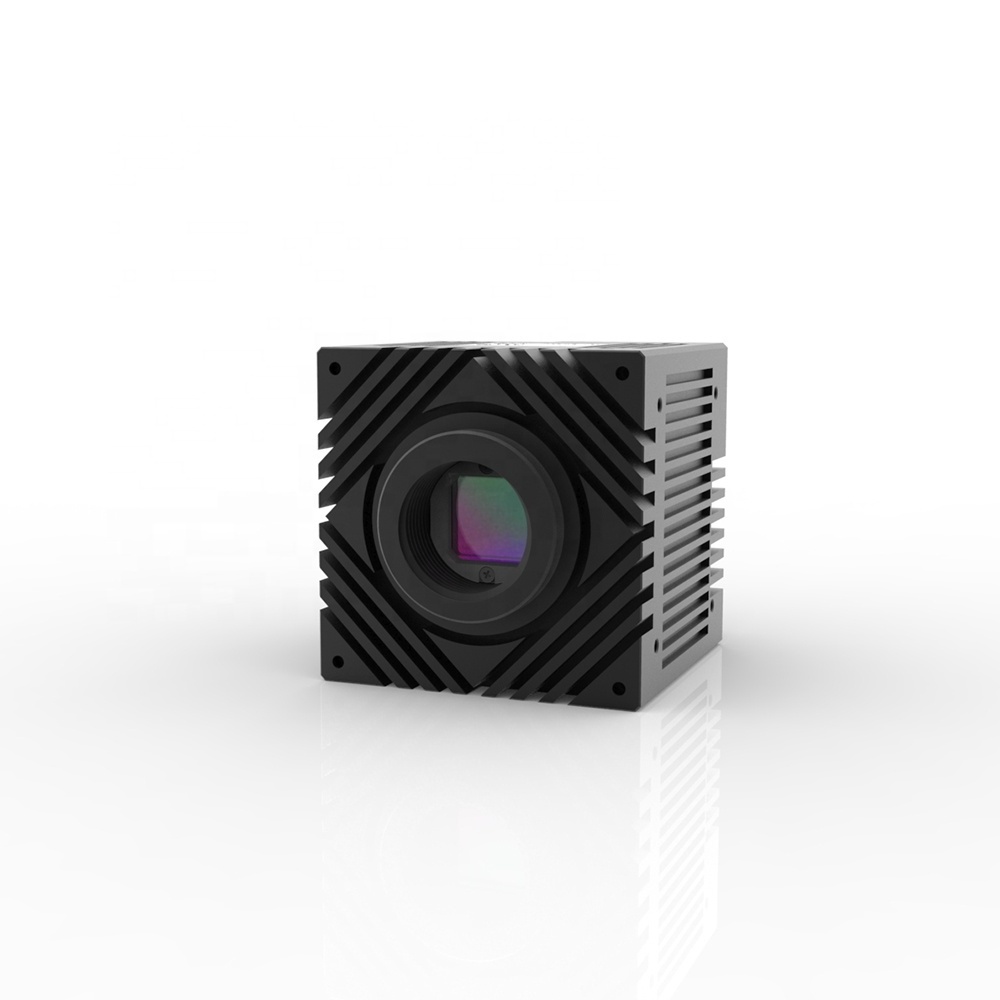

High Speed Camera 1000fps Global Shutter 25MP HD High Precision 10 Gigabit Machine Vision Camera

High Speed Camera 1000fps Global Shutter 25MP HD High Precision 10 Gigabit Machine Vision Camera

FOB Reference Price: Get Latest Price

≥1 Sets

US $933

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: MindVision

Model Number:: MV-XG

Video Compression Format:: Image Format: BMP/RAW/JPEG

Data Storage Options:: none

Product name:: 10Gige Industrial Camera

Pixel:: 0.51MP~25MP

Color:: Mono/Color

Interface:: 10 GIGE

Camera Used for:: Defect Inspection

Support:: SDK

Camera Type:: Industrial Camera

Feature:: Machine Vision

Quick Details

Special Features:: Low Power

Function:: machine vision

Customized support:: OEM, ODM

Place of Origin:: Guangdong, China

Brand Name:: MindVision

Model Number:: MV-XG

Video Compression Format:: Image Format: BMP/RAW/JPEG

Data Storage Options:: none

Product name:: 10Gige Industrial Camera

Pixel:: 0.51MP~25MP

Color:: Mono/Color

Interface:: 10 GIGE

Camera Used for:: Defect Inspection

Support:: SDK

Camera Type:: Industrial Camera

Feature:: Machine Vision

10 GigE Series Features:

✔️ Reserve a fan interface to control the temperature of camera.

✔️ Support 100 meters transmission or POE (available), Compatible with Gigabit Ethernet.
✔️ Bandwidth : 1200M Byet,Faster image transfer time then Gigabit network.
✔️ Support GigEVision, GenICamstandard ,same SDK as Gigabit Ethernet camera.

✔️ Using the standard 10 Gigabit network interface , stable communication.
✔️ It is suitable for multiple color cameras to save RAW image data at high speed and convert it to bmp or jpg format images offline at the same time.

Product Configuration:

✔️ Provide SDK, easy to use and convenient.

✔️ Support external trigger and flash.

✔️ SDK supports Windows and Linux systems.

✔️ SDK supports VC/C++, VB6, VB.NET, Delphi, C#, JAVA, Python, OpenCV.5)Support WDM driver, Directshow, TWAIN, Halcon, OCX, Labview components;

Product Paramenters

Model Optional( Global Shutter& CMOS )
Model	Pixel	Resolution	Frame Rate	Pixel Size	Sensor Size
MV-XG51GC/M-T	0.5MP	816*624	1594fps	9.0μm	1/1.7"
MV-XG170GC/M-T	1.7MP	1600*1100	662fps	9.0μm	1.1"
MV-XG280GC/M-T	2.8MP	1936*1464	409fps	4.5μm	2/3"
MV-XG402GC/M-T	4.0MP	2048*2048	176fps	5.5μm	1.0"
MV-XG503GC/M-T	5.0MP	2592*2160	121fps	2.5μm	1/2"
MV-XG903GC/M-T	9.0MP	4208*2160	121fps	2.5μm	2/3"
MV-XG1205GC/M-T	12MP	4096*3072	90fps	3.2μm	1.0"
MV-XG1803GC/M-T	18MP	4512*4096	64fps	2.5μm	1.0"
MV-XG2500GC/M-T	25MP	5120*5120	42fps	2.5μm	1.1"

Product Item	High Speed 1000 fps Camera Global Shutter 25MP HD High Precision 10 Gigabit Machine Vision Camera
Color	Monochrome/Color
Shutter	Global Shutter
Sensor	CMOS
Lens Mount	C-Mount
GPIO	Two - way input, two - way output, one - way configurable input - output, support trigger and flash synchronization mode
Data interface	10 Gigabit
Frame Buffer	256M Bytes
User-defined data area	2K Bytes
Power Requirements	12V
Dimensions	646461.7mm
weight	＜550g
Operating temperature	0~50℃
Programming Language	C/C+ +/C #/VB6/VB.NET/Delphi/BCB/Python
Operating System	WINXP, WIN7 / 8/10 32 & 64-bit systems, Linux and ARM Linux drivers and Android platform drivers (customizable)
Driver	DirectShow components Halcon special components Labview dedicated drive OCX components TWAIN components
Other Functions	Support Image size (ROI), camera, exposure time, GAMMA, contrast, brightness, custom LUT, mirror flip, RGB color gain, saturation, sharpness, color to mono, color temperature correction, anti-color, Color,trigger mode, frame rate control
Website	http://www.mindvision.com.cn/

When you don't know how to choose the model, please contact us on Alibaba,our engineers will recommend the suitable product for you!

Line Sequence Definition

Camera Size

Product Packaging

Case Show

About US

ShenZhen MindVision Teconogy Co,Ltd is an intelligent enterprise providing products and solutions in the field of machine vision, incorporates research, manufacturing.sales and service with professional technologies and excellent manufacturing process.

With strong technical power , exquisite process , good corporate reputation , excellent product quality , continuous research and develop new and high technology products with a number of independent patent , we provide customers with quality products and technical services in the field of industrial camera. MindVision establishes long-term relations with various enterprises.
