Quick Details
-
Rated load capacity:
-
≤3000 kg
-
Rated/maximum absorbed power:
-
≥250x2 kw
-
Maximum traction KN:
-
≥23
-
Roller diameter x length:
-
≥216x1000mm
-
Drum inner distances x outer distances:
-
≥700x2700mm
-
Roller center distances:
-
≥437 mm
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
UE
-
Warranty:
-
1 Years
-
Rated load capacity:
-
≤3000 kg
-
Rated/maximum absorbed power:
-
≥250x2 kw
-
Maximum traction KN:
-
≥23
-
Roller diameter x length:
-
≥216x1000mm
-
Drum inner distances x outer distances:
-
≥700x2700mm
-
Roller center distances:
-
≥437 mm
Product Description
Product Parameters
|
Rated load capacity
|
≤3000 kg
|
|
Rated/maximum absorbed power
|
≥250*2 kw
|
|
Maximum traction KN
|
≥23
|
|
Roller diameter×length
|
≥φ216×1000mm
|
|
Drum inner distance×outer distance
|
≥700×2700mm
|
|
Roller center distance
|
≥437 mm
|
|
Maximum test speed
|
≥180km/h
|
|
Detection wheelbase range
|
2400-3500 mm
|
|
Wheelbase adjustment range
|
0-1100 mm
|
|
Air source
|
≥0.8Mpa
|
|
Power
|
380V
|
|
Reference inertia
|
≥908 kg
|
|
Power absorption device
|
air-cooled eddy current machine
|
|
Indication error of vehicle speed measurement
|
＜±1%
|
|
Power measurement indication error
|
＜±3%
|
Features
1 Test power data: The horsepower torque/curve of the full range speed of the horsepower machine can accurately reflect the working conditions of the engine at any speed (usually more than 2000 rpm), the most prominent of which is the output value of the maximum horsepower and torque.
2 can simulate road test: the resistance of the drum of the horsepower machine can be set by the control computer to simulate various resistance conditions on the road, as long as it is adjusted properly, the speed of tens or even 200kw/h on the horsepower machine is very high. safe.
3 Diagnosis of vehicle power status: A powerful horsepower machine has a clock diagnosis method. If you use the constant speed function, the horsepower machine can use the constant speed function. The horsepower machine can limit the car to a desired speed (a reasonable speed). At this time, the rotation speed (RPM) in the same gear is unchanged. Changing the throttle opening and closing degree or ECU working parameters can get different even horsepower output. With knocking earpiece, air-fuel ratio meter, air flow meter, etc., it can better judge the working state of the car.

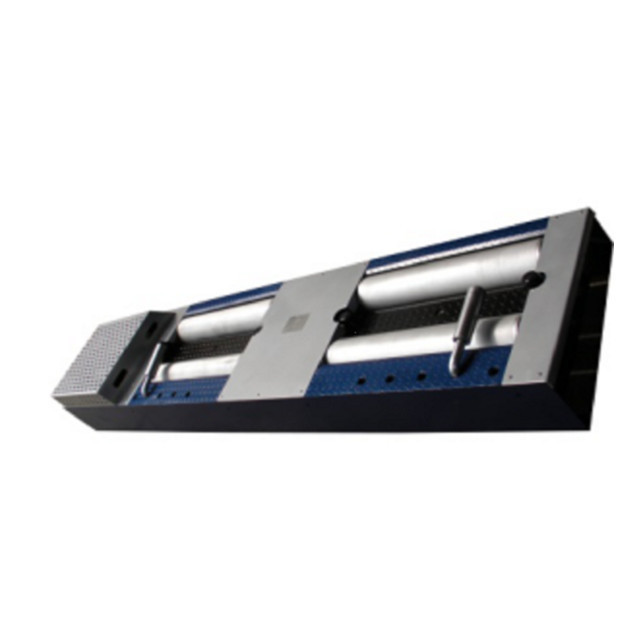

The four-wheel drive horsepower dynamometer is a device specially used to measure the chassis dynamic performance of two-wheel drive and four-wheel drive vehicles. It can not only accurately measure the dynamic performance at various speeds, but also simulate the road surface to perform routine and multi-road road tests on vehicles. It can also be used for car modification and ECU jump school. With cooling fan, frequency conversion control box, and 32-inch supporting bracket guide screen
