Quick Details
-
Ink Type:
-
Eco solvent inks
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hongcai
-
Voltage:
-
220V/110V
-
Dimensions(L*W*H):
-
2870x850x650mm
-
Weight:
-
250 KG
-
Product name:
-
Inkjet uv printer
-
inks color:
-
CMYK +white
-
Feeding size:
-
1830mm
-
Double Print head:
-
Dx11;DX5/DX7 Print Head
-
Print speed:
-
4pass (16sqm/h)
-
RIP Software:
-
Maintop(main) Photoprint(optional)
-
Print Height:
-
1-6mm
-
Media Type:
-
vinyl/one way vision/sublimation paper
-
Ink:
-
UV Ink
Quick Details
-
Print Dimension:
-
300mm, 320mm, 400mm, 500mm, 600mm, 650mm, 700mm, 800mm, 960mm, 1000mm, 1200mm, 1300mm, 1600mm, 1800mm, 1830mm
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
Eco solvent inks
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hongcai
-
Voltage:
-
220V/110V
-
Dimensions(L*W*H):
-
2870x850x650mm
-
Weight:
-
250 KG
-
Product name:
-
Inkjet uv printer
-
inks color:
-
CMYK +white
-
Feeding size:
-
1830mm
-
Double Print head:
-
Dx11;DX5/DX7 Print Head
-
Print speed:
-
4pass (16sqm/h)
-
RIP Software:
-
Maintop(main) Photoprint(optional)
-
Print Height:
-
1-6mm
-
Media Type:
-
vinyl/one way vision/sublimation paper
-
Ink:
-
UV Ink

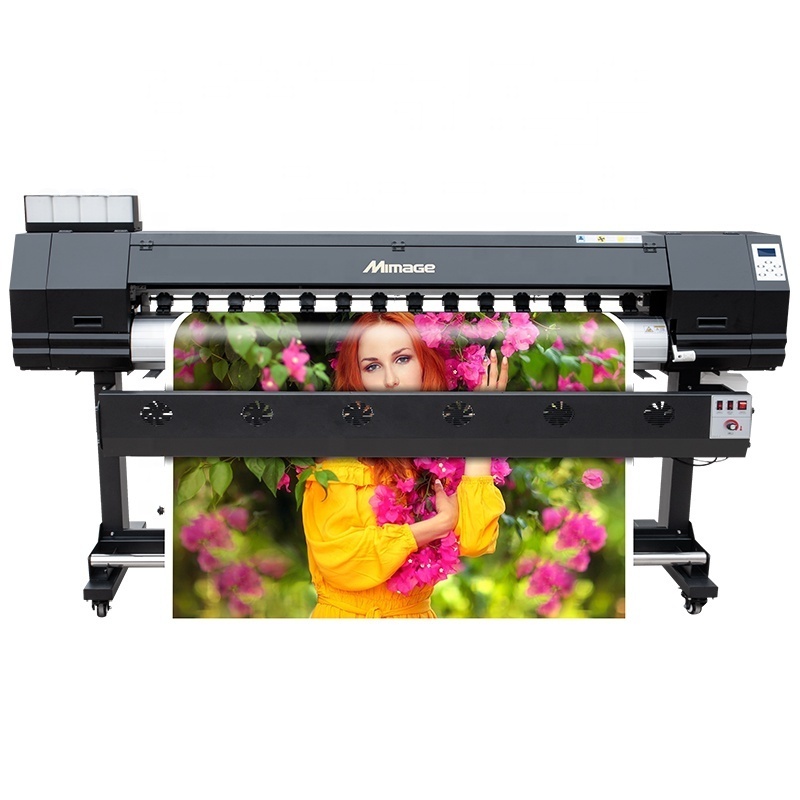

New update 1.8m 6ft large format Roll to roll Inkjet uv printer price
Mimage 1.8m/6ft Eco Solvent Printer M18S is our most popular model since 2013. M18 has gained good popularity among our domestic market and oversea dealers with it's fashionable outlook, stable performance, wide application range and cost effective features.
1) Fashionable Black Master outlook and durable mechannical design
2) Ep son DX5/DX11/5113 print heads for high resolution image output
3) Standard ICC file tested with different print head and our inks for best color performance
4) 1800mm large print size meet wide range of print jobs for your business
5) Easy for installation, use and maintain.
M18 is easy for you to install and starting printing with our guidances&support based on manual book and installation video. If you meet problem in using our printers, just conatct us with specific situation, we will provide suitable solutions for you to solve.
|
Model |
M18S |
|||
|
Print Head and Quantity |
Ep son DX5*1 |
Ep son DX11*1 |
Ep son 5113*1 |
|
|
Print resolution |
1440dpi |
1080dpi |
3200dpi |
|
|
Print Width |
1800mm |
|||
|
Print Speed |
Draft Mode |
18.5 sqm/h |
15.9 sqm/h |
21.6 sqm/h |
|
Production Mode |
15.3 sqm/h |
12.3 sqm/h |
18.1 sqm/h |
|
|
Accuracy Mode |
12.8 sqm/h |
8.2 sqm/h |
15.6 sqm/h |
|
|
Ink |
Ink Type |
UV ink |
UV ink |
|
|
Color/Ink Tank Volume |
CMYK/1000ml tank for each color |
|||
|
Supply Type |
Negative pressure continuous ink supply |
|||
|
Print Media |
Water-based Media |
PP self-adhesive vinyl, backlit film, photo paper, movable PP self-adhesive vinyl, photo cloth etc. |
||
|
Oily-based Media |
photo paper , canvas ,car sticker, reflective film, PVC cold lamination film etc. |
|||
|
Heating System |
Fore / after heating |
|||
|
Drying System |
Front fan drying system |
|||
|
Media Loading & Take up System |
Standard |
|||
|
Cleaning System |
Automatic cleaning |
|||
|
Data Transmission |
Network port printing |
|||
|
Software |
Maintop, Photoprint(optional) |
|||
|
Power Supply |
220V,50Hz/60Hz,temperature 15° C-30° C relative humidity 40-60% |
|||
1.Printer platform is true 3 phase, 99% of the market models don’t have middle phase heating, which is crucial for colors and resolution as middle heating has high requirements for the metal.
2.front infare heating system, and temperature adjustable
3.higher speed platform originates from classic Locor easyjet model
4.Strike and seal type cap station for single head, and lift up type cap station for double heads, very easy for maintenance.
5.material detect system, once material run out, printer will stop printing automatically
6.LED light for better effect checking when printing
7.Secondary ink stank for stable ink supply for fast printing
