0-2000um,0.00um Germany Fischer Dualscope MPO Coating Thickness Meter

0-2000um,0.00um Germany Fischer Dualscope MPO Coating Thickness Meter

FOB Reference Price: Get Latest Price

≥1 Sets

US $780

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Fischer

Model Number:: Dualscope MPO

Product name:: Germany Fischer Coating Thickness Gauge

Measuring range:: 0-2000um

Measure Type:: Fe&NFe

Size:: 64x30x85mm

Model:: Dualscope MPO

Application:: Coating Thickness Meter

Quick Details

Warranty:: not available

Customized support:: no

Place of Origin:: Germany

Brand Name:: Fischer

Model Number:: Dualscope MPO

Product name:: Germany Fischer Coating Thickness Gauge

Measuring range:: 0-2000um

Measure Type:: Fe&NFe

Size:: 64x30x85mm

Model:: Dualscope MPO

Application:: Coating Thickness Meter

Please contact me for more product information.

https://rtpacking.en.alibaba.com/contactinfo.html

Germany Fischer Dualscope MPO Coating Thickness Gauge 0-2000um

Product Description

Origin: Germany
Brand: Fischer
Model: Dualscope MPO

Simple introduction

MPO/MP0 coatings thickness gauge: DUALSCOPE ® MPO coating thickness gauge,

also call : D - MPO amphibious coating thickness gauge, DUALSCOPE MP0 coating thickness gauge,

Helmut - Fischer MP0 film thickness instrument, double screen, magnetic and eddy current dual-purpose

Germany Fischer coating thickness gauge

Large range: 0 ~ 2000um.

High accuracy, resolution: 0.00um;

Low power:60 seconds automatic shutdown,

measuring automatic startup value and other functions.

Features

The German MPO coating thickness gauge adopts double-function built-in probe, No need to replace the
probe,which can automatically identify the iron base or non-ferrous matrix material ,and choose the corresponding measurement
method to measure.
Accord with human body engineering design dual display structurecan,can read the measurement data in any measurement position, 999
storage values, average, standard deviation, large value, small value.

Use mobile menu to quickly select functions
The instrument can set upper and lower limits, and the instrument will emit a corresponding sound or Scintillation indicator when
measurement results exceed or conform to the upper and lower limit values .
Usually German MPO thickness gauges can measure without calibration.60 seconds automatic shutdown, when measure auto power on show
value fuction

Technical Parameters

Measuring range: 0 ~ 2000 um.Resolution: 0.00 um
Precision: ±1um (0 ~ 50um);±2% (50um ~ 1000um);±3%(1000um ~ 2000 um).
Repeatability: ± 0.5um (0 ~ 100um);± 0.5% (> 100 mu m).
Small measurement curvature diameter : within the range of precision, Fe φ 35mm,NFe φ50mm;
(in allowable error < 10%, Fe is φ 10mm,NFe is φ2mm)
Small measurement area diameter: φ 4mm (in allowable error < 10% is φ2mm).
Thickness of small substrate: Fe 0.2mm (error < 10%); NFe 0.09 mm (error < 10%).
Weight: 60g (excluding battery).
Dimensions: 64mm x30mx 85mm.
Source: two pcs 5AA batteries.

Measuring range	0 ~ 2000 um.Resolution: 0.00 um	Small measurement area diameter	φ 4mm (in allowable error < 10% is φ2mm)
Precision	±1um (0 ~ 50um);±2% (50um ~ 1000um);±3%(1000um ~ 2000 um)	Thickness of small substrate	Fe 0.2mm (error < 10%); NFe 0.09 mm (error < 10%)
Repeatability	± 0.5um (0 ~ 100um);± 0.5% (> 100 mu m)	Weight	60g (excluding battery)
Small measurement curvature diameter	within the range of precision, Fe φ 35mm,NFe φ50mm; (in allowable error < 10%, Fe is φ 10mm,NFe is φ2mm)	Dimensions	64mm x30mx 85mm

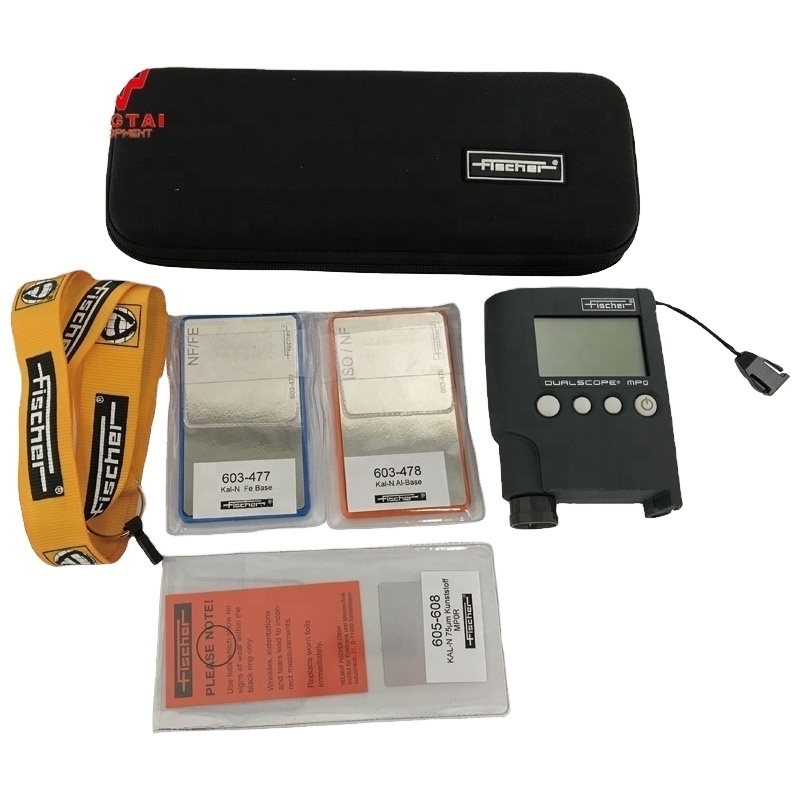

MPO/MP0 standard configuration

1 piece main engine, each piece of iron-based and aluminium base, a set of calibration film,portable instrument case,chaining,2pcs
AA batteries,operation manual,factory certificate.
