Quick Details
-
Heads Number:
-
50
-
Needle distance:
-
67.5 mm
-
ITEM:
-
4
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Running Rate:
-
800r/m
-
Port:
-
FOB Shen Zhen of China
-
Heads Number:
-
50
-
Needle distance:
-
67.5 mm
-
ITEM:
-
4
|
Model |
Heads Number |
Needle distance |
Needle Distance |
Weight |
Embroidery width |
Fabric width |
Dimension L*W*H
|
||
|
CSHX233 |
66 |
50.8 mm |
2 |
3500 kg |
3353 mm |
3368 mm |
5300 mm |
1503 mm |
1943 mm |
|
CSHX225 |
50 |
67.5 mm |
2 |
3500 kg |
3375mm |
3390 mm |
5300 mm |
1503 mm |
1943 mm |
|
CSHX322 |
44 |
76.2 mm |
2 |
3500 kg |
3350mm |
3365 mm |
5300 mm |
1503 mm |
1943 mm |
|
Rotating Speed |
Needle number |
thickness |
Rated power |
output |
Voltage |
Carriage stroke |
Stitch length |
Rotating hook type |
Row of needles |
|
200-800rpm |
#12-16 |
≤400g |
5.5kw |
2-140m/h |
380v 3 phrase |
12inch |
2-12mm |
KHS20-R |
Single |
|
200-800rpm |
#12-16 |
≤400g |
5.5kw |
2-140m/h |
380v 3 phrase |
12inch |
2-12mm |
KHS20-R |
Single |
|
200-800rpm |
#12-16 |
≤400g |
5.5kw |
2-140m/h |
380v 3 phrase |
12inch |
2-12mm |
KHS20-R |
Single |
Features:
1. The simultaneous performance of quilting and embroidering.
2. High speed 800 RPM
3. High capacity : KHS20-R rotating hook :120M yarn
4. Able to process different materials .For instance PU leather, Cotton fabric, knitting fabric and foam etc.
5. Three axes x y z are controlled by Panasonic server motors separately
6. Top and bottom thread break detections
7. Automatic memory for the current position in case of power off.
8. The pattern-design system is acceptable to read common embroidering machine design format. USB flash
memory is used for storing patterns
9. The fabric-out use the three axes for adjustment it ensure the quilting effect.
10. Effective clutch is matched well with the ROLLER structure at the front and the rear, to prevent any slipping of the
fabric material
11. The needle rack is free of lubrication
12. The bottom thread can be used up, without waste

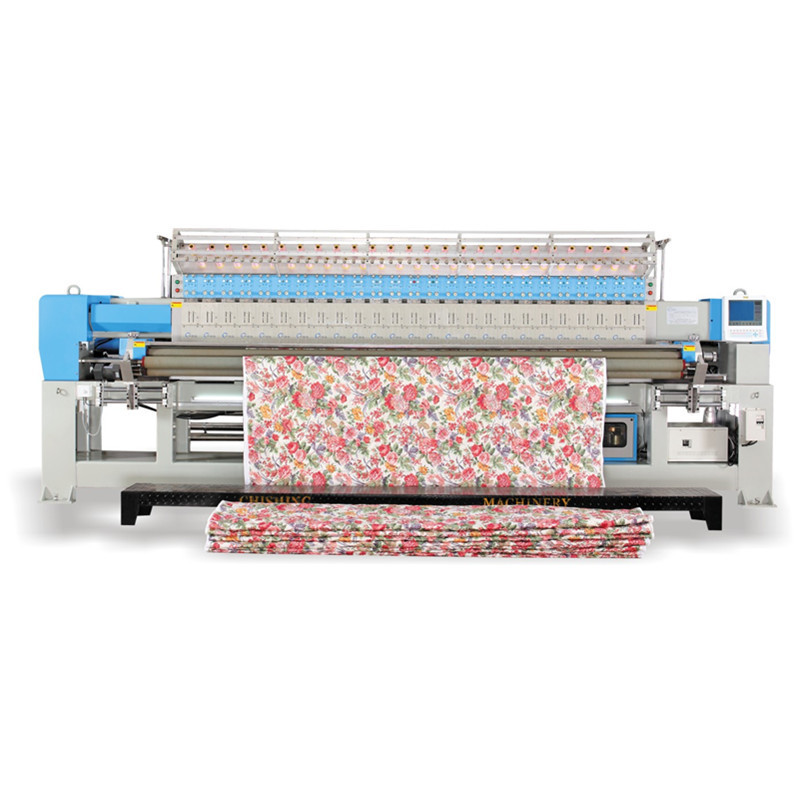

The advantages of the quilting and embroidery machine
1 As the quilting embroidery machine use rotating hook(like sewing machine ) and independent needle and presser foot, stitch very smooth, clear, beautiful, especially for high-quality fabric quilting and embroidering .
(2) Quilting and embroidery machine has the quilting and embroidery function.For instance logo or letters and embroidery flowers can be stitched also.
(3) The assembling standards and movements of needle, hook and rotating-spindle are in full compliance with Industrial sewing machine manual. Sewing action reliable, less stitch skip and low thread breaking rate and needle breakage rate
4) No plate and Shuttle, minimal operating noise
5) For garment industry, if the width requirement is less than 1.6 meters, it can process two sheets of materials at the
same time, which can greatly improve the output and efficiency.
