- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
8800 kg
-
Dimension(L*W*H):
-
L 7960 W 2700 H3450 mm
-
Power:
-
85Kw(116Hp)
-
Engine Capacity:
-
4330cc
-
Color:
-
Customer's Requirement
-
Power Type:
-
Diesel Engine
-
Engine:
-
Yunnei/Yuchai/Cummins
-
Application:
-
road, railway, tunnel, airport, housing,construction
-
Certification:
-
CE, CCC
-
After sale service:
-
Video technical support,Part support, onsite training case to case
Quick Details
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MINLE /OEM
-
Weight:
-
8800 kg
-
Dimension(L*W*H):
-
L 7960 W 2700 H3450 mm
-
Power:
-
85Kw(116Hp)
-
Engine Capacity:
-
4330cc
-
Color:
-
Customer's Requirement
-
Power Type:
-
Diesel Engine
-
Engine:
-
Yunnei/Yuchai/Cummins
-
Application:
-
road, railway, tunnel, airport, housing,construction
-
Certification:
-
CE, CCC
-
After sale service:
-
Video technical support,Part support, onsite training case to case
Product Parameters

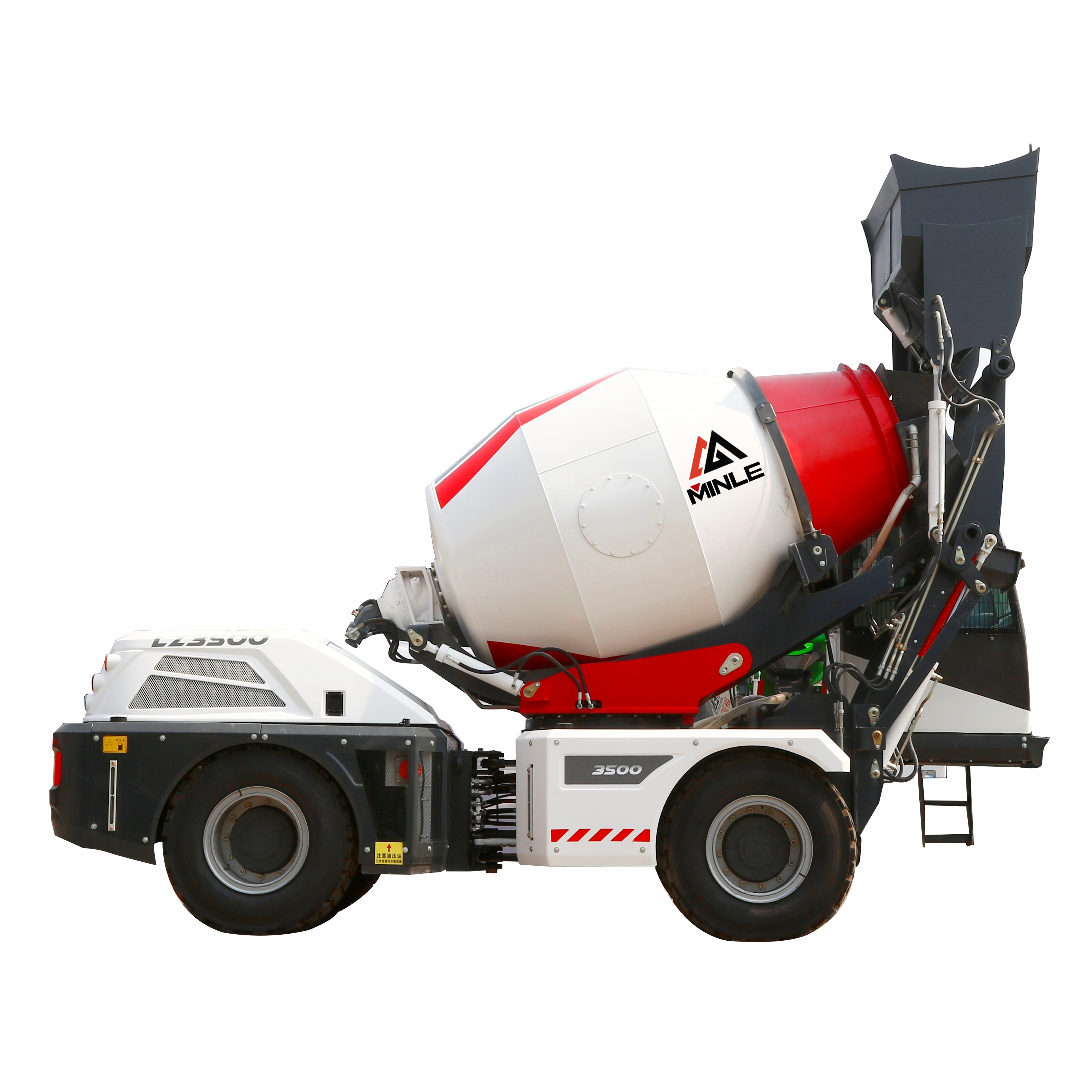

MINLE SELF LAODING CONCRETE MIXER
|
MODEL
|
ML3500R
|
|
Max. power
|
85Kw（116Hp）
|
|
Max. torque
|
390Nm@2800rpm
|
|
Steeting
|
Articulated Steering by two cylinders move alternately.Electro-hydraulically controlled mechanical gearbox for “working speed” and “road transfer speed".
|
|
4X4 FOUR-WHEEL DRIVE
|
hydraulic torque converter transmission with open Gear oil pump and reverse gear control on the steering wheel.
|
|
Speed
|
2 forward gears ,IInd 7-20 Km/h / 2 reverse gears 0 - 7.0 Km/h , 7 - 20 Km/h
|
|
Water System
|
24V “Self-priming” volumetric water pump with quick-suction.Max. capacity: 180 liters/min.
|
|
Tank Material
|
Mangnese steel tank , 4-8 times longer servive life than common steel
|
|
Concrete produced as
|
3.0-3.5 m³
|
|
Equipment Hydraulic System
|
Piston Pump Brand: Sunny (made in USA), Max. flow rate: 56 liters/min , 3-Handles controlled with multi-function joystick.
|
|
Weight
|
Operating weight -8800 kg /Max gross weight- 16000 kg/Load-carrying capacity- 7200 kg
|
|
Dimension
|
7960 × 2700 × 3450 mm
|
