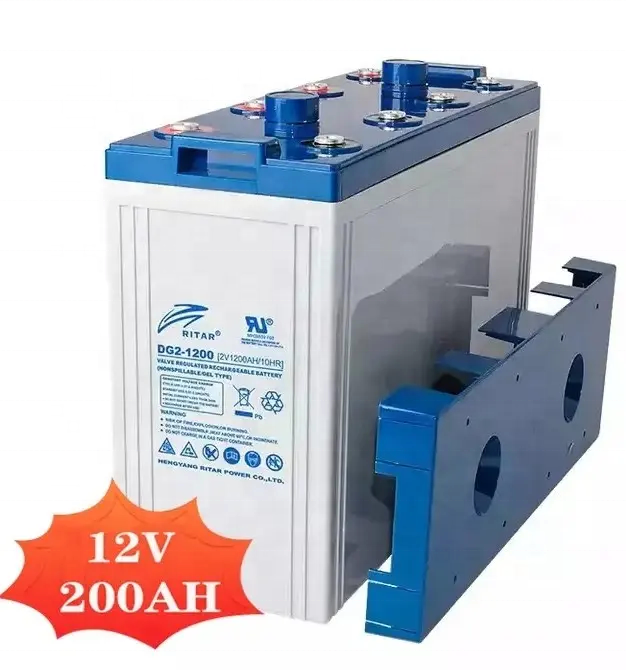

Factory Price Ritar Series Solar Power Battery Charger 2V 200ah 400ah 800ah 1000ah 3000ah Lead Acid 12V Gel Battery

Factory Price Ritar Series Solar Power Battery Charger 2V 200ah 400ah 800ah 1000ah 3000ah Lead Acid 12V Gel Battery

FOB Reference Price: Get Latest Price

≥2 Pieces

US $159

≥400 Pieces

US $130

≥2000 Pieces

US $110

≥10000 Pieces

US $95

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: 12v

Place of Origin:: Anhui, China

Product name:: lead-acid battery

Battery type:: GEL/AGM

Capacity:: 2V/6V/12V 26Ah~3000Ah

Voltage:: 2/12V

Cycle life:: 6000 Times

Weight:: 52-78KG

Self Discharge:: Monthly Self-discharge ratio is less than 3% at 25°C

Brand:: Ritar

OEM/ODM:: Accepatable

Quick Details

Anode Material:: Other

Application:: Power Tools, Consumer Electronics, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems

Brand Name:: Ritar

Model Number:: 12v

Place of Origin:: Anhui, China

Product name:: lead-acid battery

Battery type:: GEL/AGM

Capacity:: 2V/6V/12V 26Ah~3000Ah

Voltage:: 2/12V

Cycle life:: 6000 Times

Weight:: 52-78KG

Self Discharge:: Monthly Self-discharge ratio is less than 3% at 25°C

Brand:: Ritar

OEM/ODM:: Accepatable

Recommend Products

Product Description

DC Series

Deep Cycle GEL VRLA Batteries

Voltage class: 2V/6V/12VCapacity range: 26Ah~3000Ah

Designed for frequent cyclic charge and discharge applications under extreme environment.

Suitable for solar & wind energy, UPS, telecom systems, electric power systems, control systems, golf cars, etc.

Battery construction

Technical Specifications

Model	DC12-26~DC12-260	DC2-200~DC2-3000	FT12-55D~FT12-185D
Cells Per Unit	6	1	6
Voltage Per Unit	12V	2V	12V
Terminal	F3(M5) / F13-BP(M5)/T24(M5)/F5(M8) / F12(M8)	F10(M8)	F9(M8)/F14(M8)
Design Life	12 years (floating charge)	20 years (floating charge)	12 years (floating charge)
Float Charging Voltage	13.6 V~13.8 V @ 25℃ Temperature Compensation: -3mV/℃/Cell	2.27 V~2.30 V @ 25℃ Temperature Compensation: -3mV/℃/Cell	13.6 V~13.8 V @ 25℃ Temperature Compensation: -3mV/℃/Cell
Cycle Use Voltage	14.6 V~14.8 V @ 25℃ Temperature Compensation: -4mV/℃/Cell	2.43 V~2.47 V @ 25℃ Temperature Compensation: -4mV/℃/Cell	14.6 V~14.8 V @ 25℃ Temperature Compensation: -4mV/℃/Cell
Operating Temperature Range	Discharge: -20℃~60℃;Charge: 0℃~50℃;Storage: -20℃~60℃
Normal Operating Temperature Range	25℃±5℃
Self Discharge	RITAR Valve Regulated Lead Acid (VRLA) batteries can be stored for up to 6 months at 25℃ and then recharging is recommended. Monthly Self-discharge ratio is less than 3% at 25℃.Please charged batteries before using.
Container Material	A.B.S.

Technical Features

1.Long Service Life

Heavy duty lead-calcium grids ensure mild corrosion and enable a long designed service life of 18 years
standby use under optimal float charge conditions and below optimal operating temperature of 20 deg. 2.Excellent and High Efficient Discharge

RITAR batteries are equipped low resistant plates and conducting parts, which decrease the internal resistance and ensure the highest discharging efficiency.

3.Triplex Sealed Construction

Valve regulated sealed construction and triplex strengthened sealing on terminals and posts prevent electrolyte leakage, and guarantee the air tight and liquid tight state of batteries in normal operation and prevent external air from entering battery inner.
4.Low Self Discharge
Because of the use of lead-calcium grids alloy, RITAR batteries have low self discharge and reliable performance. In room temperature, self discharge ratio per month of RITAR battery is about 3% of the battery capacity.
5.High Security

RITAR batteries are equipped with explosion-proof safety valves to prevent production of redundant gas. And the construction is designed to prevent setting fire to the internal battery in case sparkles approach. 6.High Efficiency of Recovery

Unique formulas are used in lead paste of positive post and ensure the battery can be recharged easily to a normal level.

7.No Electrolyte Stratification

Special additives are use in electrolyte to give it a gelatinous consistency without flowing, leaking
or stratification, and make all parts of plates react evenly.

Performance Characteristics

Our Factory

Packing & Delivery

Warranty Period

Battery Rating	Warranty Period
AGM VRLA Batteries. 12V 1.2Ah, to 12V 28AH;6V 1.3Ah, to 6V 12Ah	24 months from installation or 25 months from date of supply from company whichever is earlier
AGM VRLA Batteries. 12V 33Ah, to 12V 250AH;2V 100Ah, to 2V 3000Ah	24 months from installation or 25 months from date of supply from company whichever is earlier
AGM VRLA Deep Cycle Batteries. 12V 65Ah, to 12V 250AH;2V 200Ah, to 2V 3000Ah	24 months from installation or 25 months from date of supply from company whichever is earlier
GEL VRLA Batteries. 12V 33AH,to 12V 250AH	36 months from installation or 37 months from date of supply from company whichever is earlier
GEL VRLA Batteries. 2V 200AH,to 2V 3000AH	36 months from installation or 37 months from date of supply from company whichever is earlier
Tubular Gel Batteries. OPzV 2V 200AH,to 2V 3000AH	36 months from installation or 37 months from date of supply from company whichever is earlier (Optional)60 months from installation or 61 months from date of supply from company whichever is earlier
Tubular Flooded Batteries. OPzS 2V 200AH,to 2V 3000AH	36 months from installation or 37 months from date of supply from company whichever is earlier
