Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ANTUATOR
-
Model Number:
-
ANT-38
-
Torque:
-
Customised
-
Voltage(V):
-
12V/24V
-
Max Power(W):
-
50W
-
Max Load(N):
-
2300N
-
Stroke:
-
50-400mm
-
Noise on load:
-
≤60dB
-
Working duty:
-
10%,Work 2 minutes and rest 18 minutes
-
Life time(cycles):
-
≥10k
-
IP rating:
-
IP66/IP67M
-
Certification:
-
CE
-
Max speed:
-
30mm/s
Quick Details
-
Speed(RPM):
-
3.3mm/s
-
Continuous Current(A):
-
1.8A
-
Efficiency:
-
Ie 3
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ANTUATOR
-
Model Number:
-
ANT-38
-
Torque:
-
Customised
-
Voltage(V):
-
12V/24V
-
Max Power(W):
-
50W
-
Max Load(N):
-
2300N
-
Stroke:
-
50-400mm
-
Noise on load:
-
≤60dB
-
Working duty:
-
10%,Work 2 minutes and rest 18 minutes
-
Life time(cycles):
-
≥10k
-
IP rating:
-
IP66/IP67M
-
Certification:
-
CE
-
Max speed:
-
30mm/s
Full stainless steel 38mm diameter for marine roof hatch lifting systems

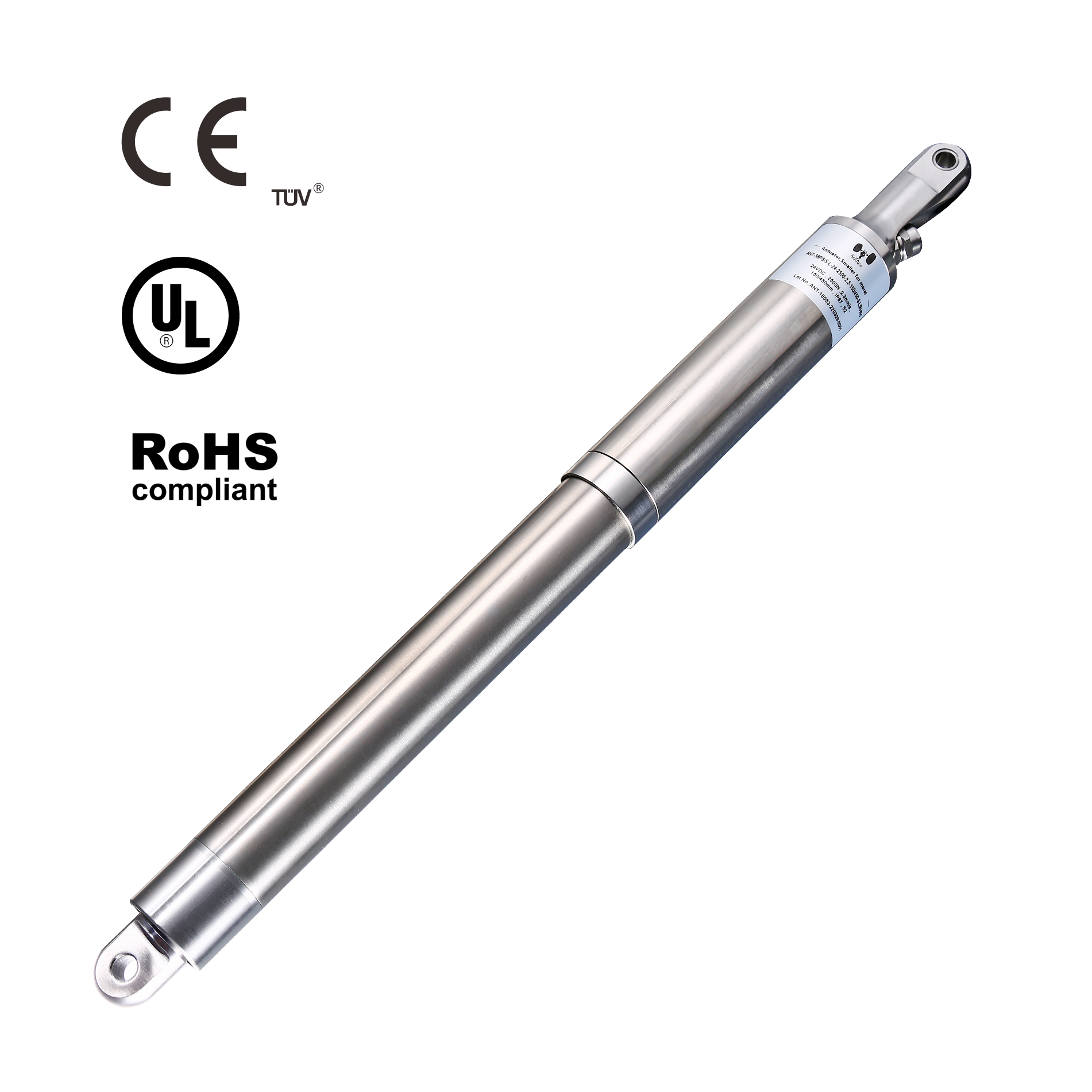

ANTUATOR ANT-38 Linear Actuator
- Max load: 2300N (push/pull)
- Max speed at max load:2.5mm/s
- IP rating:IP66/IP67M
- Voltage:12vdc or 24vdc
- Stroke:50-400mm(can be customized)
- Certificate: CE, RoHS, UL325
- Warranty:5 years
- Options: hall sensor, over current protection, potentiometer
aluminum body or 316 stainless steel body
TECHNICAL DATA
| Max load(N) | 100 | 300 | 400 | 600 | 800 | 1200 | 1800 | 2300 |
| Self-locking Force(N) | 150 | 600 | 600 | 1600 | 1600 | 1800 | 3600 | 3450 |
| No-load Speed(mm/s)-Noraml | 35 | 25 | 18 | 12 | 12 | 6.8 | 4.5 | 3.5 |
| Load Speed (mm/s)-Noraml | 30 | 17 | 14 | 9 | 8 | 5 | 3 | 2.5 |
| No-load Speed(mm/s)-Low noise | 25 | 25 | 16.5 | 13 | 8.5 | 5 | 3.3 | 3.3 |
| Load Speed ( mm/s)- Low noise | 23 | 20 | 14 | 10.5 | 7 | 4.5 | 3 | 2.5 |
| Stroke(mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| AL Weihht(kg) | 0.85 | 0.95 | 1.05 | 1.15 | 1.25 | 1.35 | 1.45 | 1.65 |
-- Push only function is optional.
-- Output limit switches wires is optional.
-- Customized stroke lengths are availableThe min stroke:20mm ,the max stroke:500mm
-- The stroke's precision is +2 mm.
DIMENSION
|
ANT-38 Min.Install dimension Stroke≤400mm |
(mm) | Limit Switch | Hall sensor | Over current protection | |||
|
Normal/ Waterproof |
Low noise |
Normal/ Waterproof |
Low noise |
Normal/ Waterproof |
Low noise | ||
| ≤800N | L+S | 200+S | 210+S | 220+S | 220+S | 220+S | 230+S |
| A | 128.5 | 138.5 | 148.5 | 148.5 | 148.5 | 158.5 | |
| >800N | L+S | 210+S | 220+S | 230+S | 2 30 +S | 230+S | 240+S |
| A | 138.5 | 148.5 | 158.5 | 158.5 | 158.5 | 168.5 | |
|
ANT-38 Min.Install dimension Stroke > 400mm |
(mm) | Limit Switch | Hall sensor | Over current protection | |||
|
Normal/ Waterproof |
Low noise |
Normal/ Waterproof |
Low noise |
Normal/ Waterproof |
Low noise | ||
| ≤800N | L+S | 235+S | 245+S | 235+S | 245+S | 235+S | 245+S |
| A | 148.5 | 158.5 | 148.5 | 158.5 | 148.5 | 158.5 | |
| >800N | L+S | 245+S | 255+S | 245+S | 255+S | 245+S | 255+S |
| A | 158.5 | 168.5 | 158.5 | 168.5 | 158.5 | 168.5 | |
-- Noise level 56dB for the low noise version
-- For IP67M/IP69K actuators, the min.install length will be 15mm longer.
