Quick Details
-
Brand Name:
-
Evol
-
Model Number:
-
1004G
-
Engine Model:
-
1004G
-
Displacement:
-
3.99L
-
Bore x stroke:
-
100*127mm
-
Compression ratio:
-
17.5:1
-
Place of origin:
-
China
-
Payment:
-
T/T
-
Induction system:
-
Naturally aspirated
-
Governor:
-
Mechanical
-
L*W*H(mm):
-
1275*735*938
Quick Details
-
Rated Voltage:
-
12V, 24V
-
Frequency:
-
50 Hz/ 60 Hz
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Evol
-
Model Number:
-
1004G
-
Engine Model:
-
1004G
-
Displacement:
-
3.99L
-
Bore x stroke:
-
100*127mm
-
Compression ratio:
-
17.5:1
-
Place of origin:
-
China
-
Payment:
-
T/T
-
Induction system:
-
Naturally aspirated
-
Governor:
-
Mechanical
-
L*W*H(mm):
-
1275*735*938
Product Description
Our Advantages
High Power Density
Power output and torque per liter are superior to normal level with optimized structure strengthening,
Low Fuel Consumption
The excellent combustion system can reduce fuel consumption, emission and noise, meanwhile increase engine power output.
Easy Maintenance
All routine service items are situated on the right hand side of engine allowing easy maintenance and minimum machine downtime.
Durability & Reliability
Start normally at -10℃ without preheated device, start smoothly at -25℃ through flame glowplug cold start aid.
Maximum cooling efficiency is provided by a gear driven water pump and independent fan drive.
Leak free operation is ensured by Viton crankshaft seals and sophisticated controlled swell joints, giving protection in the toughest conditions.
Specification
|
item
|

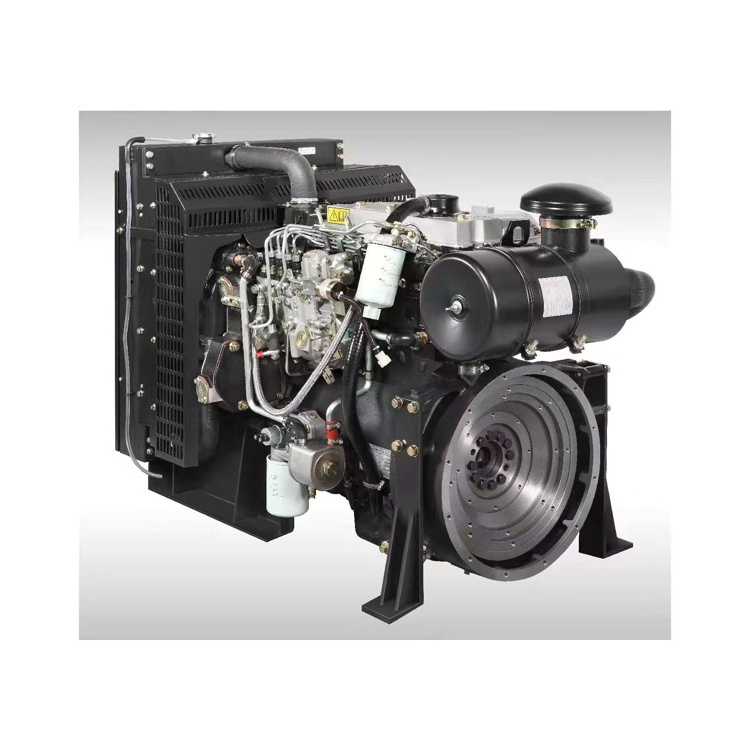

1004G Engine for gensets
|
|
Warranty
|
3months-1year
|
|
Place of Origin
|
China
|
|
|
Tianjin
|
|
Brand Name
|
Evol
|
|
Model Number
|
1004G
|
|
Rated Voltage
|
12V/24V
|
|
Speed
|
1500RPM, 1800RPM
|
|
Frequency
|
50 Hz/ 60 Hz
|
|
Starting system
|
12V DC Electric Start
|
|
Type
|
Silent type, Container Type, Canopy Type
|
|
Cooling System Type
|
Water cooling system
|
|
Displacement
|
3.99L
|
|
Bore x stroke
|
100*127mm
|
|
Compression ratio
|
17.5:1
|
|
Place of origin
|
China
|
|
Payment
|
T/T
|
|
Induction system
|
Naturally aspirated
|
|
Governor
|
Mechanical
|
|
L*W*H(mm)
|
1275*735*938
|
Product Series Overview
|
Engine Model
|
1004G
|
1004TG
|
1004TAG
|
||
|
|
α 100 Series
|
|
|
||
|
Cyl. No.
|
4-Cyl.
|
4-Cyl.
|
4-Cyl.
|
||
|
Induction System
|
NA
|
T
|
NA
|
||
|
Displacement(L)
|
3.99
|
|
|
||
|
Bore x Stroke(mm)
|
100*127
|
|
|
||
|
Engine Prime Power kW/1500rpm
|
40
|
66
|
85
|
||
|
Engine Prime Power
kW/1800rpm
|
44
|
76
|
*
|
||
|
Engine Standby Power kW/1500rpm
|
44
|
72
|
93.5
|
||
|
Engine Standby Power kW/1800rpm
|
48
|
83
|
*
|
||
|
Governor Type
|
Mechanical
|
|
Electronic
|
||
|
Fuel Pump
|
In line Pump
|
In line Pump
|
In line Pump
|
||
|
Aspiration
|
Naturally Aspirated
|
Turbocharged
|
Turbocharged and air to air intercooled
|
||
|
Noise dB(a)
|
≤96
|
≤96
|
≤96
|
||
|
Specific Fuel Consumption (g/kW.h)
|
210
|
205
|
205
|
||
|
Cold Start
Without Preheater
|
-10℃
|
|
|
||
|
Cold Start
Without Preheater (Optioal)
|
-25℃
|
|
|
||
|
Electrical Sytem
|
12V/24V
|
|
12V
|
||
|
Engine Net Weight (KG)
|
495
|
515
|
565
|
||
|
Engine Overall Size (mm)
|
1275*735*938
|
|
1378*811*1043
|
||
|
Flywheel/Flywheel Housing
|
SAE3/11.5"
|
|
|
||
|
Generator Prime Power
kW/1500rpm
|
35
|
58
|
76
|
||
|
Generator Prime Power
kW/1500rpm
|
39
|
67
|
*
|
||
