Quick Details
-
Power (kW):
-
1.1
-
Weight (KG):
-
100
-
Applicable Industries:
-
Metal and non-metal surface treatment, deburring,
-
Capacity:
-
80L
-
Size:
-
780*780*700mm
-
Power:
-
1.1Kw
-
PU thickness:
-
15-20mm
-
Weight:
-
100KG
-
Model:
-
ZDPA80
-
Application:
-
Surface Polishing
-
Color:
-
Customizable
-
Package:
-
Wooden Case
-
Certification:
-
CE ISO9001
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HENGDA
-
Marketing Type:
-
Hot Product 2020
-
Power (kW):
-
1.1
-
Weight (KG):
-
100
-
Applicable Industries:
-
Metal and non-metal surface treatment, deburring,
-
Capacity:
-
80L
-
Size:
-
780*780*700mm
-
Power:
-
1.1Kw
-
PU thickness:
-
15-20mm
-
Weight:
-
100KG
-
Model:
-
ZDPA80
-
Application:
-
Surface Polishing
-
Color:
-
Customizable
-
Package:
-
Wooden Case
-
Certification:
-
CE ISO9001
Products Description

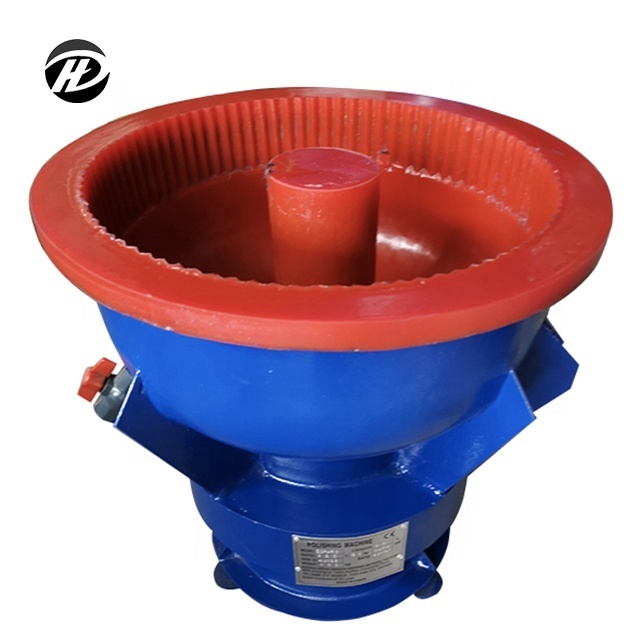

ZDPA Vibratory Finishing Machine Feature
•
Large loading capacity for large batch processing
•
Wide application range
•
Easy to operate
•
Manually separate polishing media and products
•
PU lining for longer machine life
• Timing settings
• Timing settings
Application
Suitable for polishing metal, aluminum, brass, copper, stainless steel, and iron workpieces such as machined parts, injection molding parts, stamping parts, and die casting parts.
Details Images
Engineering Drawings
Product Paramenters
|
Mode
|
Total Volume（L）
|
Max Overall Dimension A(mm)
|
Motor Installation Tube C(mm)
|
Process Bowl Width ΦD(mm)
|
Tunnel Depth H2(mm)
|
Machine Height H1(mm)
|
Motor
(kw)
|
Weight
(kg)
|
|
ZDPA30
|
30
|
500
|
80
|
165
|
190
|
620
|
0.55
|
50
|
|
ZDPA60
|
60
|
640
|
140
|
200
|
240
|
700
|
0.75
|
85
|
|
ZDPA80
|
80
|
780
|
200
|
220
|
250
|
700
|
1.1
|
100
|
|
ZDPA150
|
150
|
1030
|
450
|
230
|
300
|
810
|
1.5/2.2
|
250
|
|
ZDPA200
|
200
|
1180
|
520
|
280
|
340
|
850
|
2.2/3.0
|
300
|
|
ZDPA300
|
300
|
1340
|
610
|
290
|
360
|
910
|
3.7/5.0
|
500
|
|
ZDPA400
|
400
|
1450
|
610
|
340
|
400
|
910
|
3.7/5.0
|
600
|
|
ZDPA600
|
600
|
1850
|
910
|
400
|
480
|
1150
|
5.5/7.5
|
1200
|
|
ZDPA900
|
900
|
1950
|
610
|
560
|
550
|
1350
|
9.0
|
1800
|
|
ZDPA1200
|
1200
|
2150
|
860
|
550
|
560
|
1400
|
11.0
|
2300
|
|
ZDPA1500
|
1500
|
2340
|
860
|
640
|
650
|
1450
|
15.0
|
3100
|
