- Product Details
- {{item.text}}
Quick Details
-
Capacity:
-
10-45 M3/h
-
Layer:
-
1-5
-
Usage:
-
Fine Particles Screening
-
keyword:
-
trommel screen
-
drum diameter:
-
1500mm
-
feeding size:
-
400mm
-
drum length:
-
3000mm
Quick Details
-
Type:
-
Circular
-
Place of Origin:
-
Henan, China
-
Name:
-
Used small sawdust gold sand gravel trommel screen for sale
-
Capacity:
-
10-45 M3/h
-
Layer:
-
1-5
-
Usage:
-
Fine Particles Screening
-
keyword:
-
trommel screen
-
drum diameter:
-
1500mm
-
feeding size:
-
400mm
-
drum length:
-
3000mm

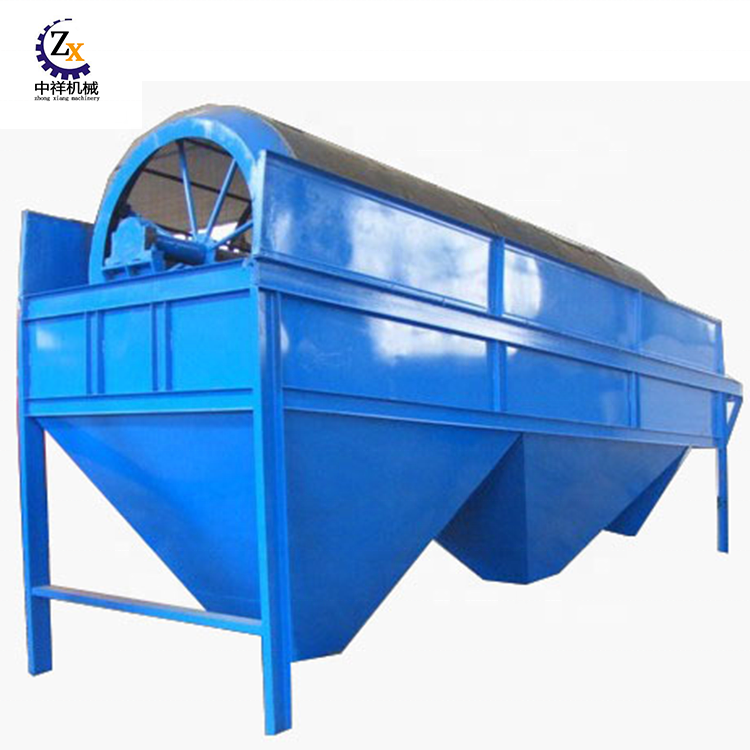

Used small sawdust gold sand gravel trommel screen for sale
1.Introduction of small sawdust gold sand gravel trommel screen for sale:
sieving screen is widely used in classifying the solid materials in coal,mining,electric power,light industry and other industries,screening the wet materials inmetallurgy,construction industry and chemical industry ,too.With a high screen transmittance,it is particularly suitable for the screening of wet and sticky materials.The screening pores can never be blocked,and this product is widely used for the screening and griding of coal,gravel and other materials in electric power,minging,metallurgy, building materials,chemical and other industries.
2.Application Of small sawdust gold sand gravel trommel screen for sale:
According to different sizing specification, the numbers of hierarchical level could be from one to four. materials whose size is larger than the screen mesh of the last part will be discharged from the outlet.
During the process of operation, its movement is slowly and steady and installation is simple, sometime no need any special foundation and could be placed on smooth ground or floor.
It is the most commonly used classification device for refractory material, coal, river sand and mixture of sand and stone.
3.China supplier small sawdust gold sand gravel trommel screen for sale:
- long bearing lifetime
- high efficiency and low energy sumption
- high credits and good quality
- not easy to be blocked.
|
Model |
Capacity |
Power |
Screen Diameter |
Screen Length |
Discharge Size |
Input Size |
Dimension
|
Weight |
|
(t/h) |
(kw) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(kg) |
|
|
GTS1015 |
50 |
3.0 |
1000 |
1500 |
0~100 |
≤300 |
2600×1400×1700 |
2200 |
|
GTS1020 |
100 |
4.0 |
1000 |
2000 |
3390×1400×2140 |
2800 |
||
|
GTS1225 |
160 |
5.5 |
1200 |
2500 |
4146×1600×2680 |
4200 |
||
|
GTS1530 |
250 |
7.5 |
1500 |
3000 |
4460×1900×2820 |
5100 |
||
|
GTS1545 |
350 |
11 |
1500 |
4500 |
≤400 |
5960×1900×3080 |
6000 |
|
|
GTS1848 |
450 |
15 |
1800 |
4800 |
6500×2350×4000 |
7500 |
||
|
GTS2055 |
600 |
22 |
2000 |
5500 |
7500×2550×4800 |
9600 |
