Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
9KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
/
-
Voltage:
-
380v/220v 50HZ
-
Dimension(L*W*H):
-
4100*2400*2500mm
-
Power (kW):
-
25
-
Weight (KG):
-
3000
-
Product name:
-

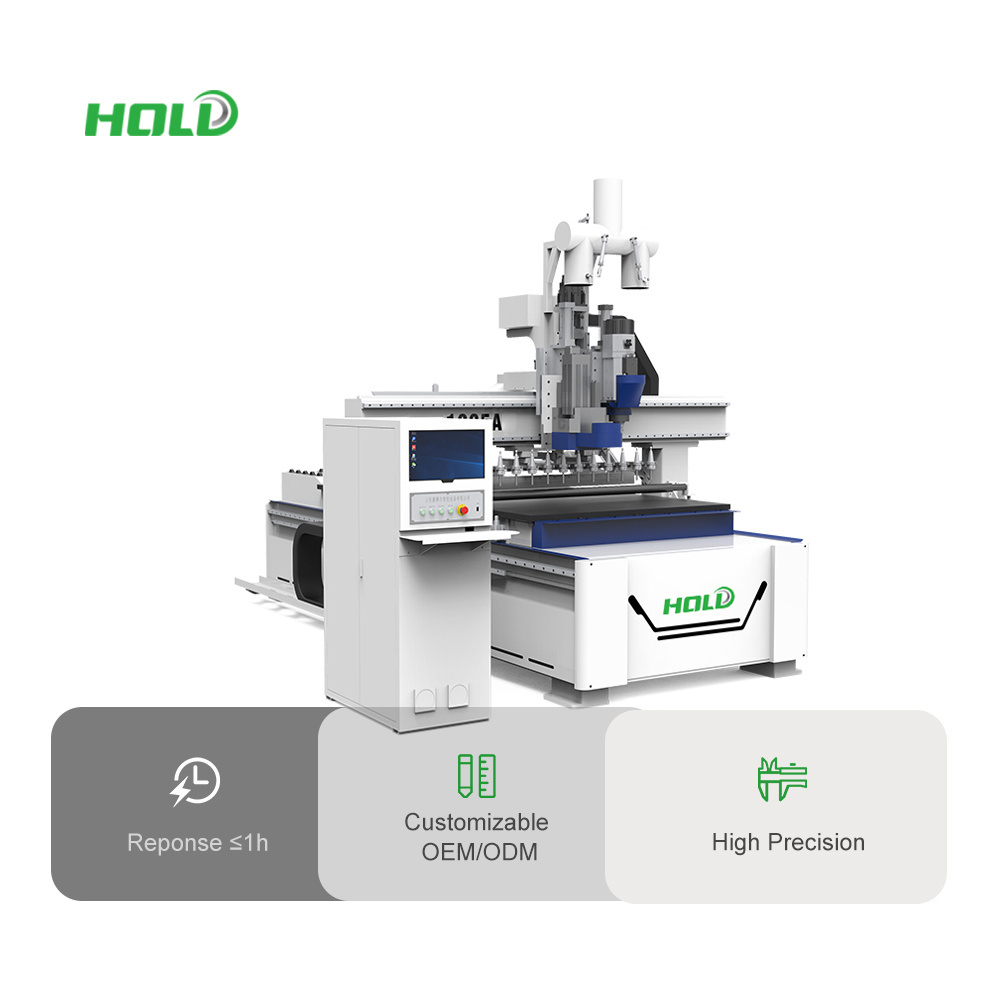

CNC Wood Working Machine
-
Application:
-
Kitchen Cabinet Doors Furnitures Making
-
Spindle:
-
9kw ATC Spindle
-
Control system:
-
Syntec
-
Software:
-
Ucancam / ArtCam/TYPE3
-
Inverter:
-
11kw Fuling Inverter
-
Table Surface:
-
Vacuum Combined T-slot Table
-
Motor and driver:
-
Servo Motor Driver
-
Certification:
-
CE ISO
-
Working Voltage:
-
AC 380V/50Hz
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
6000 - 18000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
9KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
/
-
Voltage:
-
380v/220v 50HZ
-
Dimension(L*W*H):
-
4100*2400*2500mm
-
Power (kW):
-
25
-
Weight (KG):
-
3000
-
Product name:
-
CNC Wood Working Machine
-
Application:
-
Kitchen Cabinet Doors Furnitures Making
-
Spindle:
-
9kw ATC Spindle
-
Control system:
-
Syntec
-
Software:
-
Ucancam / ArtCam/TYPE3
-
Inverter:
-
11kw Fuling Inverter
-
Table Surface:
-
Vacuum Combined T-slot Table
-
Motor and driver:
-
Servo Motor Driver
-
Certification:
-
CE ISO
-
Working Voltage:
-
AC 380V/50Hz
An automatic CNC tool changer has numerous significant benefits in the workshop, including:
Ability to switch between a large number of tools without requiring a human operator
Increased accuracy
Increased efficiency
Reduced labor cost
Reduced downtime and total production time
Increased tool storage capacity
Increased machine versatility
Increased safety for employees and equipment
Ability to change larger and heavier tools with ease
Increased edge finish due to more appropriate tooling per process
Product's Configuration
fewer failures.
It can control speed, so that it can meet the requirements of different cutting process
We have two types tool magazine, one is linear tool magazine, which can hold 16 knives.
Another is disc tool magazine, it can hold 20 knives, and we also can customize tool magazine according to your needs.
Another is disc tool magazine, it can hold 20 knives, and we also can customize tool magazine according to your needs.
Made from thick square tube and processed by imported CNC processing center, so the
machine have high precision and working stability.
We can also do other sizes, we have high flexibility, so if you have requirements, we will definitely meet your needs.
machine have high precision and working stability.
We can also do other sizes, we have high flexibility, so if you have requirements, we will definitely meet your needs.
Our CNC Router machine is equipped with servo motor, which has many advantages of high efficiency, high output power, more constant torque at higher speed, quiet operation, high acceleration and high accuracy.
.
LNC specializes in PC-based CNC controllers. Our machine is equipped with LNC control system, which is easy to operate and durable
Those device can help you to load and unload the sheet, Humanized design, greatly improve the work efficiency.
The adsorption area is divided into 7 sections, and the vacuum adsorption area can also be customized according to the size of the material you process
Rail and Rack
30M PEK guide rail, the wide guide rail and its straightness can ensure the accuracy of
our machine, which has high rigidity
our machine, which has high rigidity
Product Paramenters
|
Model
|
HSR1325A
|
|
Working area
|
1300*2500*200mm (can be customized)
|
|
Control System
|
LNC control system
|
|
Spindle
|
9KW ATC air cooling spindle
|
|
Spindle speed
|
6000-18000RPM
|
|
Motor and Driver
|
1.5kw Leadshine servo motor and driver
|
|
Inverter
|
Best inverter
|
|
Table surface
|
Vacuum table with T-slot
|
|
Transmission
|
X,Y Axis: Helical rack pinion, Z Axis: Taiwan TBI Ball Screw,
|
|
Command language
|
G Code
|
|
Tool magazine
|
14-16 pieces knives
|
|
Software
|
ArtCam, Ucancam,Type3
|
|
Optional
|
Rotary device/Dust Collector
|
|
Re-positioning accuracy
|
±0.03mm
|
|
Working accuracy
|
±0.03mm
|
|
Working voltage
|
220V 3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ
|
Application
The production Line
Provide the whole production Line
We have many kinds of Furniture Production Line, including CNC Router Machine, edge banding machine, wood drilling machine, auto loading and unloading system, etc.
We can do customized service, so if you are not sure which machine or which production line is suitable for you, we can give you suggestion and support you the whole Furniture Production Line.
