Quick Details
-
Brand Name:
-
KaiDC
-
Model Number:
-
DC-8108
-
Max. Current:
-
see details
-
Operating Temperature:
-
-20~+60℃
-
Protection Level:
-
IP65
-
IP level:
-
IP65
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
see details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KaiDC
-
Model Number:
-
DC-8108
-
Max. Current:
-
see details
-
Operating Temperature:
-
-20~+60℃
-
Protection Level:
-
IP65
-
IP level:
-
IP65
Products

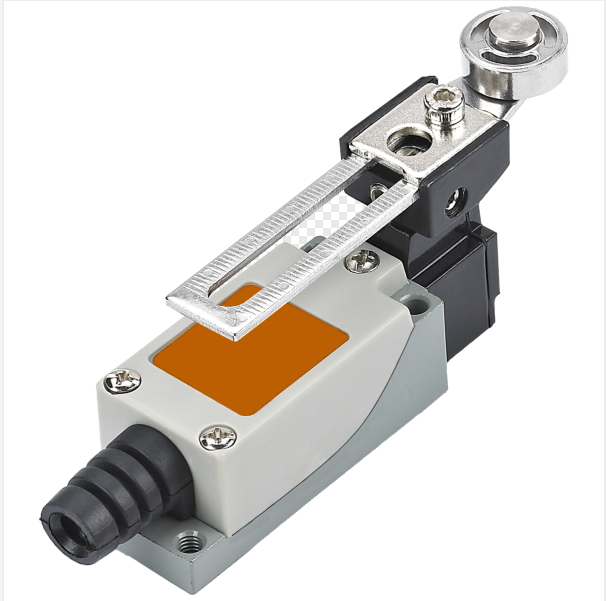

The shell is composed of reinforced plastic and zinc alloy, with strong structure and easy wiring;
Small size, waterproof and oil-proof;
Adopt double-loop form, built-in double-reed micro switch;
Equipped with various forms of drive connecting rods;
Widely used in various mechanical equipment, automation equipment, instrumentation and other fields.
Attribute
|
Item
|
|
Data
|
|
|
|||
|
Rating load
|
|
5A/250VAC
|
|
|
|||
|
Operation speed
|
|
5mm-50cm/s
|
|
|
|||
|
Operation frequency
|
Mechanical
|
120times/min
|
|
|
|||
|
|
Electrical
|
30times/min
|
|
|
|||
|
Insulation resistance
|
|
100mΩ or more (Above) DC500V
|
|
|
|||
|
Contact resistance
|
|
25mΩ initial value
|
|
|
|||
|
Withstand voltage
|
Non-connection wire
|
1000VAC
|
|
|
|||
|
|
Every terminal
|
1500VAC
|
|
|
|||
|
Vibration
|
Misoperation
|
10-55Hz Amplitude 1.5mm
|
|
|
|||
|
Impact
|
Durable
|
1000m/s2
|
|
|
|||
|
|
Misoperation
|
300m/s2
|
|
|
|||
|
Life
|
Electrical
|
More than 100,000 times above
|
|
|
|||
|
|
Mechanical
|
More than 1,000,000 times above
|
|
|
|||
|
Protection degree
|
|
IP65
|
|
|
|||
|
Operating temperature
|
|
-20~+60℃
|
|
|
|||
|
Operating humidity
|
|
<85%
|
|
|
|||
Model meaning
Mounting size and contact form
Dimensions/operating characteristics
|
OF max
|
800g(7.84N)
|
|
|
|
|||
|
RF min
|
60g(0.59N)
|
|
|
|
|||
|
PT max
|
30°
|
|
|
|
|||
|
OT min
|
60°
|
|
|
|
|||
|
MD max
|
15°
|
|
|
|
|||
|
TT
|
90°
|
|
|
|
|||
