SDCAD Brand cart away harga 0 5 m3 dan gun small harga 0.3-0.6 m3 tiger concrete mixer

FOB Reference Price: Get Latest Price

≥1 Sets

US $4300

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: SDCAD

Motor Power:: base on model

Charging Capacity:: 500L~4000L

Reclaiming capacity:: 750L ~ 5000L

Speed of Mixing Drum:: 32rpm

Water Supply Mode:: Automatic

Working Cycle Period:: 40S, 30s-45s

Discharge Way:: hydraulic pressure

Outline Dimension:: 2300*1350*2750mm

Warranty of core components:: 3 Year

Weight (KG):: 3200 kg

Power type:: Electric Motor

After-sales Service Provided:: Service Machinery Overseas

Application:: Building Constrction

Concrete mixer type:: Twin Shaft Cement Concrete Mixer

After Warranty Service:: Technical Support

Advantage:: High Productivity

Volume:: 500L-5000L

Mixing Capacity:: 10-240m3/h

Price:: Negotiable and reasonable

Quick Details

Mixing Power:: 11kW

Productivity:: 10M³/H~260M³/H

Place of Origin:: Shandong, China

Brand Name:: SDCAD

Motor Power:: base on model

Charging Capacity:: 500L~4000L

Reclaiming capacity:: 750L ~ 5000L

Speed of Mixing Drum:: 32rpm

Water Supply Mode:: Automatic

Working Cycle Period:: 40S, 30s-45s

Discharge Way:: hydraulic pressure

Outline Dimension:: 2300*1350*2750mm

Warranty of core components:: 3 Year

Weight (KG):: 3200 kg

Power type:: Electric Motor

After-sales Service Provided:: Service Machinery Overseas

Application:: Building Constrction

Concrete mixer type:: Twin Shaft Cement Concrete Mixer

After Warranty Service:: Technical Support

Advantage:: High Productivity

Volume:: 500L-5000L

Mixing Capacity:: 10-240m3/h

Price:: Negotiable and reasonable

Product Overview

Twin shaft concrete mixer

Twin shaft mixer Achieving the desired homogeneity and workability of modern mixtures, within the shortest period possible, is often the most critical phase of production. SDCADI offers an extensive range of high performance mixers – Single-Shaft, Twin-Shaft, Planetary or Pan with variety of different capacities, ensuring we comply with every mixing requirement. SDCADI Twin-Shaft mixers have proven to be reliable and built to the highest quality , resulting in SDCADI equipment being the choice of many professionals, in over 70 countries around the world.

Our Advantage

Customized service: Unique top opening design.Position and size of the feeding inlet according to the customer's needs.

Capacity : 500L ~4000L.

♦ Equipped with multi stages shaft seals.

♦ Equipped with manual lubrication pump.

♦ Watering curtain at top cover to ensure fast and thorough mixing.

♦ Optional automatic lubrication pump DC24V.

Full Process Solution Provider of SDCADI

JS500

JS750

JS1000

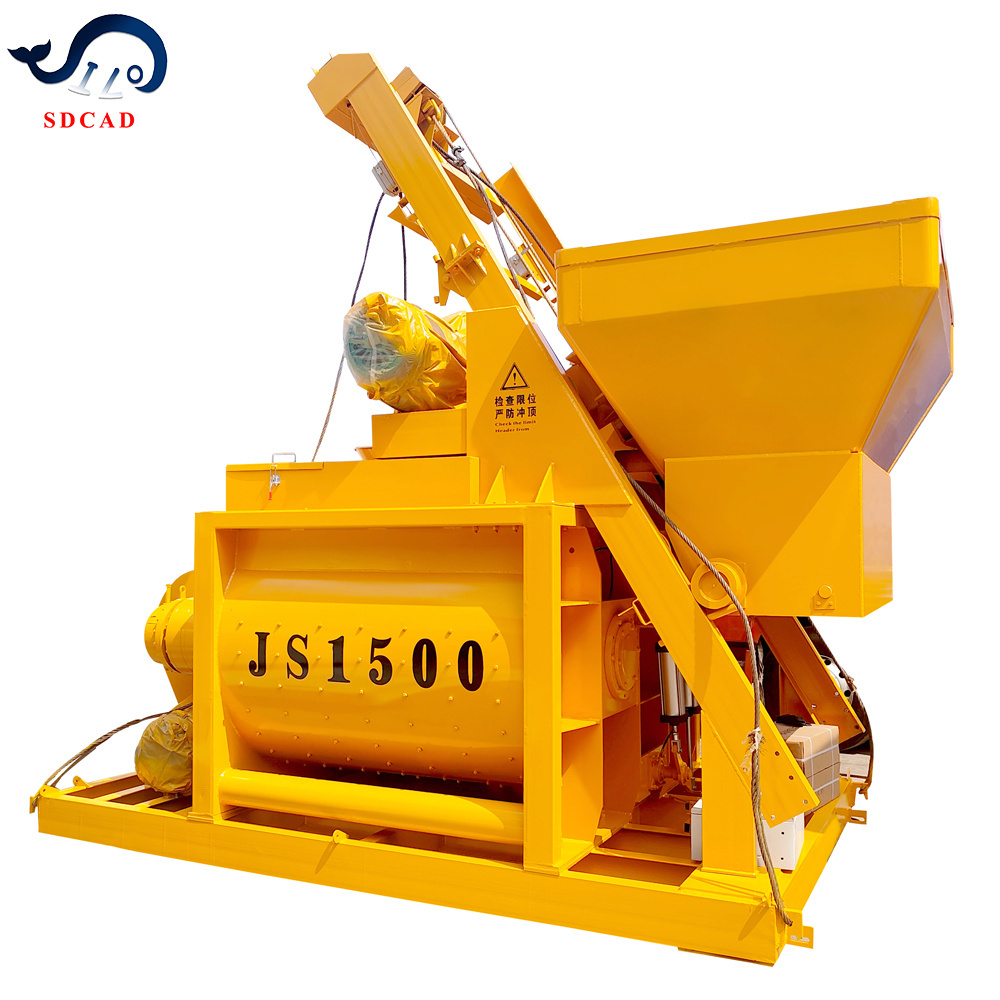

JS1500

JS2000

JS3000

PRODUCT CONFIGURATION

Efficient powertrain

good efficiency and speeds of 0-45 rpm favour the speedoptimised mixing process and thus optimum energy input into the mix. Excellent mixing results can be realized in a short period. Independent hydraulic circuits ensure maximum operational safety and a long lifetime. One for the mechanics and one for the lubrication and for the cooling of the gearbox. Maintenance activities can be conducted quickly due to the clearly arranged service positions on the drive side. This results in a high availability of the mixer.

Highlights Consistently high mixture homogeneity and short mixing cycles •Rapid increase in mixture homogeneity through intensive material exchange •Uniform consistency and homogeneity in every mixing cycle Optimum energy efficiency •Preservation of the grain structure of the formulation’s individual components •Low specific energy consumption due to short mixing times, optimized mixing mechanism and efficient drive.

Design results in low wear • Low wear on mixing tools and mixing trough lining due to low speeds and compact design • Significantly less wear and tear than with pan or planetary mixers • Optimized design of all parts subject to wear Efficient production of concrete • Excellent liberation of binders in a short time • Creates potential for reducing the required amount of binder • Uniform and fast distribution of additives and admixtures across the entire volume of the mixture • Possibility of small batches as low as 10% of the nominal filling level

Electric lubricating oil pump

Supplying the grease to four shaft end respectively with using four pump cores. It is no need to use flow divider valve,avoiding blocking of the flow divider valve to decreasethe workload of maintenance and service.

Reducer

Adopting the Italy brand or self making reducer and parts reliable performance, long service life, low noise.

Shaft-end sealling

Multi-combined sealing by imported components,avoiding the cement and slury contacting the shaft headextending the service life of the concrete mixer.

Hydraulic discharging system

With strong drive force and reliable discharging;Discharging door can be opened at any angle,with manual discharging function: The discharging dooradopts detachable structure convenient for maintenance.

Robust mixing tool with wear tiles

the robust mixing tool and the corrugated pattern of the wear tiles which are made of chromium carbide. The corrugated pattern prevents the gaps between the wear plates from washing out (wear) in an early stage. Cement and admixtures are dissolved in an optimal way.

Hydraulic mixer gate

The hydraulic mechanism for closing the mixer gate utilizes .There are no disruptions in the operation procedures because of clamped aggregates. The mixer gate is always closing properly and prevents soiling by outrunning concrete.

PRODUCT SPECIFICATIONS

Model	JS 750	JS 1250	JS 1500	JS 2000	JS 3000	JS 4000
Charging capacity(L)	1200	2000	2400	3200	4800	6400
Discharging capacity(L)	750	1250	1500	2000	3000	4000
Production capacity(m3/h)	42	75	90	120	180	240
Mixing axle rotation speed(r/min)	29.9	29.67	26.75	23.5	23.4	22.85
Mixer motor power(kw)	2*15	2*22	2*30	2*37	2*55	2*75
Librication oil pump motor power(kw)	0.09	0.09	0.09	0.09	0.09	0.09
Hydraulic system motor power(kw)	2.2	2.2	2.2	2.2	2.2	2.2
Electromagnetism valve power supply(V)	DC24	DC24	DC24	DC24	DC24	DC24
Mixing time(s)	<=40	<=40	<=40	<=40	<=45	<=45
No. of mixing arm	12	12	16	16	18	22
Max diameter of aggregate(Detritus/ Pebble)	60/80	60/80	60/80	80/120	100/150	100/150
Transportation dimensions(LxWxH)	2900x 2100x 2100	3000x 2100x 2100	2900x 2320x 2150	3450x 2320x 2250	3900x 2600x 2230	4500x 2600x 2230
Entire machine weight(kg)	5000	5300	6500	7500	9300	11800

Advantage of the three-dimensional mixing concept

In contrast to the circular motion of other mixing systems, the three-dimensional mixing principle of the twin-shaft batch mixer produces a more intensive exchange of material, which leads to shorter mixing times while consuming less energy.

Mixing principle
* Generation of a circular three-dimensional movement pattern of the entire mixture
* Intensive material exchange in the turbulent overlap zone of the two mixing circuits
* Optimal conversion of the energy input into intensive relative movements of the mixture
* Total volume of material is always included in the mixing process
