Quick Details
-
Power:
-
2.2KW-7.5KW
-
Weight:
-
1.5 kg
-
Dimension(L*W*H):
-
According to models
-
Product name:
-
Waste water sludge processing filter press price
-
Filer plate materials:
-
Polypropylene
-
Filter area:
-
1-1000 square meters
-
Working pressure:
-
0.6Mpa
-
Design temperature:
-
≤80℃ or customized
-
Filter plate size:
-
800-2000mm
-
Customizing:
-
Accept
-
Cake thickness:
-
30mm
-
Color:
-
Customers' Request
-
After sale service:
-
Engineers available to service machinery overseas
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Remont
-
Voltage:
-
380V or customerized
-
Power:
-
2.2KW-7.5KW
-
Weight:
-
1.5 kg
-
Dimension(L*W*H):
-
According to models
-
Product name:
-
Waste water sludge processing filter press price
-
Filer plate materials:
-
Polypropylene
-
Filter area:
-
1-1000 square meters
-
Working pressure:
-
0.6Mpa
-
Design temperature:
-
≤80℃ or customized
-
Filter plate size:
-
800-2000mm
-
Customizing:
-
Accept
-
Cake thickness:
-
30mm
-
Color:
-
Customers' Request
-
After sale service:
-
Engineers available to service machinery overseas

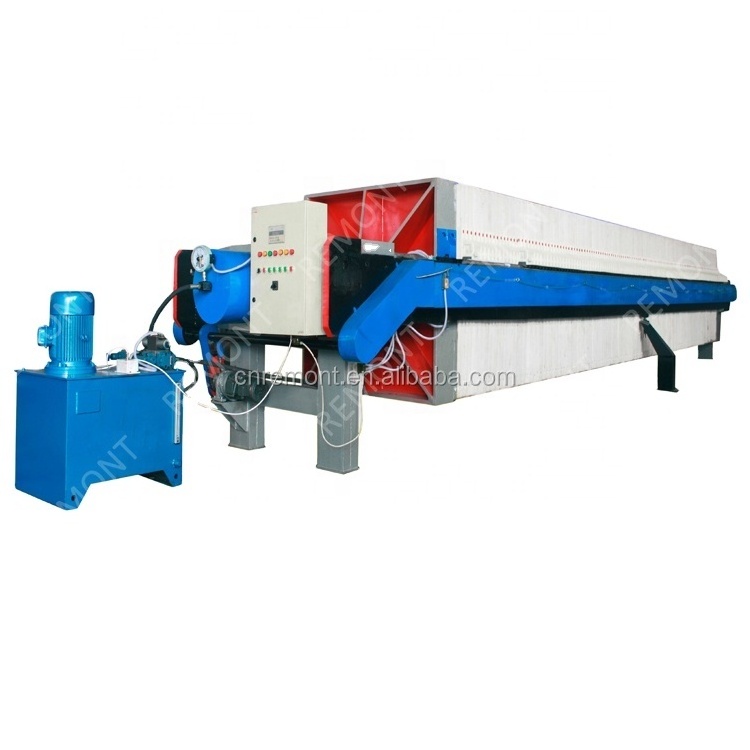

Waste water sludge processing filter press price
Chamber filter press machine is one kind of intermittent filter equipment, it is used for solid-liquid separation of various suspending liquid. Filter plates are pressed by pressing devices, and then suspension is pumped into the filter chamber. Solid particles and liquid are separated through filter cloth. This equipment is simple in structure and good in separating effects, easy to operate.
1. The structure chart of waste water sludge processing filter press price
The hydraulic pressing mechanism of the filter press is composed of a hydraulic station, an oil cylinder, a piston rod, and a haffland card hydraulic station connected by the piston rod and the pressing plate.Motor, oil pump, relief valve ( adjusting pressure ) reversing valve, pressure gauge, oil circuit, oil tank.
2. The working principle of waste water sludge processing filter press price
Filtration: The way the filtrate flows, the clear stream filtration and the dark stream filtration. Open stream filtration, the outlet holes under each filter panel are provided with a nozzle which flows intuitively from the nozzle. Underflow filtration, each filter plate is provided with an outlet channel hole, and the outlet holes of several filter plates are connected into a outlet channel, which is discharged by a pipe connected with the outlet hole under the thrust plate.
Wide applicability of waste water sludge processing filter press price
Used in tailings, machine sand, kaolin, river silt, metallurgy, chemical, environmental protection, food, pharmaceutical, textile printing and dyeing, profile manufacturing, wine making and other industries.
| Model | Fliter Area(m2) | Plate Size(mm) | Cake Thickness | Filter Chamber Volume | Plate No. | Motor Power |
| XAZ30/870-30U | 30 |
870*870/ 800*800 |
30mm | 460L | 23 pcs | 2.2 kw |
| XAZ40/870-30U | 40 | 595L | 30 pcs | |||
| XAZ50/870-30U | 50 | 748L | 38 pcs | |||
| XAZ60/870-30U | 60 | 902L | 46 pcs | |||
| XAZ70/870-30U | 70 | 1056L | 54 pcs | |||
| XAZ80/870-30U | 80 | 1210L | 62 pcs | |||
| XAZ50/1000-30U | 50 | 1000*1000 | 736L | 28 pcs | 4.0 kw | |
| XAZ60/1000-30U | 60 | 889L | 34 pcs | |||
| XAZ70/1000-30U | 70 | 1041L | 40 pcs | |||
| XAZ80/1000-30U | 80 | 1193L | 46 pcs | |||
| XAZ100/1000-30U | 100 | 1475L | 57 pcs | |||
| XAZ120/1000-30U | 120 | 1777L | 69 pcs | |||
|
We are able to supply 2000 square meters of filter press if necessary contact us to custom.
How you can get the right Model? Please tell me.
|
||||||
Fast Delivery
By National station exporting standard plywood cases, wooden pallet or in 20ft&40ft container.
Or as per your demands.
