Quick Details
-
Place of Origin:
-
Shandong China
-
Material:
-
Hot Dip Galvanized RHS
-
Color:
-
single /double /customized
-
Wheel:
-
Five wheel ,include spare one
-
Certificate:
-
ISO9001:2008
-
Suspension:
-
Leaf Spring Suspension
-
Floor:
-
18mm Plywood+10mm Rubber
-
roof:
-
fiberglass reinforced plastic
-
tire:
-
195R15C
-
Warranty:
-
12 Months
Quick Details
-
Max Payload:
-
2600KG
-
Brand Name:
-
Jinan Jinli
-
Size:
-
5925*2280*2590 mm
-
Place of Origin:
-
Shandong China
-
Material:
-
Hot Dip Galvanized RHS
-
Color:
-
single /double /customized
-
Wheel:
-
Five wheel ,include spare one
-
Certificate:
-
ISO9001:2008
-
Suspension:
-
Leaf Spring Suspension
-
Floor:
-
18mm Plywood+10mm Rubber
-
roof:
-
fiberglass reinforced plastic
-
tire:
-
195R15C
-
Warranty:
-
12 Months

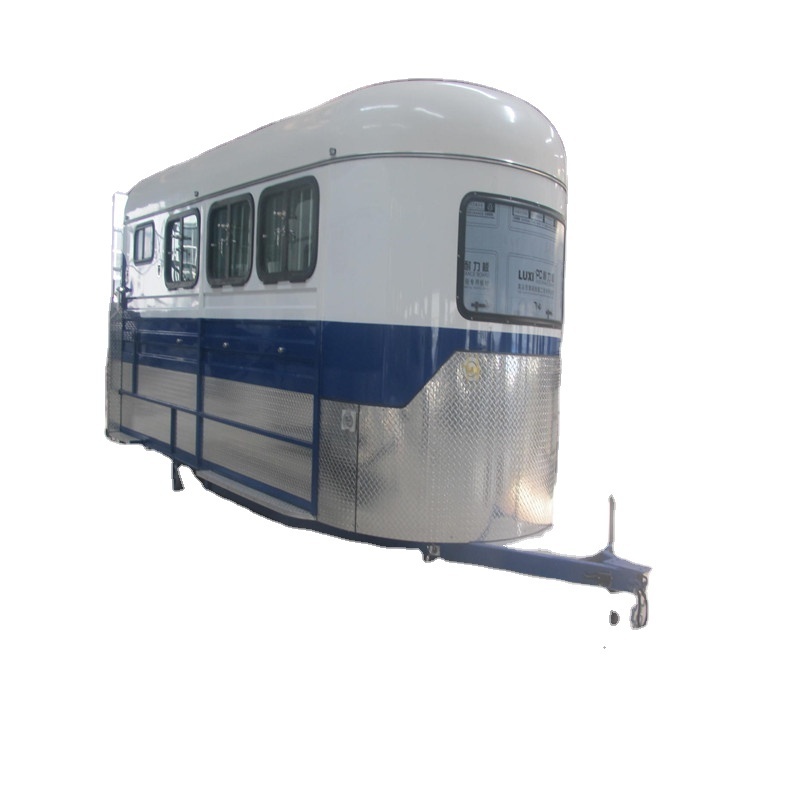

3 horse trailer with living room and horse trailer kitchen
- Roof :giberglass reinforced plastic
- standard: Australian standard
Product Overviews
3 Horse Angle Load Float-Deluxe
Austrilian Standard
| Model No. | 3HAL-D | Origin | Jinan,Shandong,PRC |
| Overall Dimensions | 6325*2280*2590mm | Dimension of body | 5475*1980*2230mm |
| Maximum Internal Dimension of body | 5450*1930*2155mm | Color | Single of double vent Customized |
| Production Capacity | 20Units/Month | Shipping | Via sea from Qingdao Port |
| Packing | Loading in Bulk FIXED on The Floor of Container | Payment | T/T 30% deposit in advance ,the balance should be paid against copy of B/L date |
| Empty Weight | 2200KG | Max Payment | |
| MOQ | 2Units in 1*40'HQ |
| MODEL :3HAL-D |
| 1. TRAILER MATERIALS |
| 1.1 CHASSIS MATERIAL double hot dip galvanized RHS(3.5mm-4.0mm) |
| 1.2 FRAME MATERIAL double hot dip galvanized RHS(2.5mm) |
| 1.3 BODY PANELgalvanized(1.2mm) |
| 1.4 ROOF special molded FRP 5475*1890*450mm |
| 1.5 NUTS & AMP ;BOLTS stainless steel |
| 2. WHEELS & TYPES |
| 2.1 WHEEL RIM 15' Iron rims |
| 2.2 TYPES 195R15C |
| 2.3 SPARE WHEEL one |
| 3.AXLES & SUSPENSIONS |
| 3.1 ALXES two special trailer axles |
| 3.2 LEAF SPRINGS roll rocker tandem spring suspension 6 plates |
| 3.3BRAKE AYATEM 4 wheel electic brakes with break - away systems |
| 4. WINDOWS & DOORS |
| 4.1 FRONT WINDOW 1220*610 |
| 4.2 SIDE WINDOWS 3 pop-up rectangle windows ,3 sliding rectangular windows |
| 4.3 ENTS three sash casement vent |
| 4.4 SIZE OF SIDE DOOR 1755*615 |
| 4.5 REAR UPPER DOOR 2020*1065 |
| 4.6 RAMP DOOR 2020*1210 |
| 4.7 REAR UPPER &RAMP DOOR STRUT high -intensity anti-rust strut |
| 4.8 HINGES FOR REAR UPPER DOOR special 6mm diameter copper hinges |
| 5. DRAWBAR |
| 5.1 DRAWBAR CHECKER PLATE 1.2mm aluminium |
| 5.2 DRAWBAR SAFETY CHAIN two |
| 5.3 BRACING WHEEL one |
| 6. LIGHTS &RETRO REFLECTORS |
| 6.1 TRAILER PLUGS square 7 wick plug |
| 6.2 SIDE LAMPS 6 |
| 6.3 REAR LAMPS LED group |
| 6.4 REAR LAMPS ATAND aluminium |
| 6.5 RETRO REFLECTIONS 6 |
| 7. MUDGUARD |
| 7.1 MUDGUARD TYPE compact mudguard |
| 7.2 mudguard checker plate 1.2mm aluminium in the front of mudguard |
| 7.3 pedal &aluminium step 1.2mm aluminium |
| 8. INTERIOR &EXTERIOR |
| 8.1 A KITCHEN with a cupboard and all appliance from yourself |
| 8.2 horse PROTECTION frame full padded |
| 8.3 horse ring six |
| 8.4 rubber matting for ramp door 10mm rubber matting |
| 8.5 BUBBER MATTING FOR FLOOR 10mm rubber matting |
| 8.6 RUBBER MATTING FOR INNER SIDE PANEL 6mm rubber matting |
| 8.7 WOOD BOARD FOR FLOOR & AMP ;RAMP DOOR 18mm hardwood plywood |
| 8.8 RUG RACK side |
| 8.9 SADDLE RACK in saddle box |
| 8.10 SADDLE BOX 1500mm height for 3 saddles |
| 8.11 PAINTING single or customized |
| 9. DIMENSIONS |
| 9.1 OVERALL DIMENSIONS (L*W*H:mm)6325*2280*2590 |
| 9.2 BODY DIMENSION(L*W*H:mm)5475*1980*2230 |
| 9.3 MAXIMUM INTERNAL DEMENSIONS :5450*1930*2155 |
OPTIONAL
| NAME |
| kitchen |
| microwave |
| sink |
| TV |
| gas tank and gas oven |
| fridge |
| caravan door |
| awning |
| air-condition |
