Quick Details
-
Type:
-
POE media converter
-
Material:
-
Metal Shell
-
Ehternet Port:
-
4*10/100M PoE /RJ45
-
Fiber Port:
-
1 SC optical port uplink
-
power supply:
-
52V 0.93A
-
PoE Transmission Distance:
-
Max.100meters
-
Optical Transmission Distance:
-
20KM
Quick Details
-
Brand Name:
-
Thinkwind
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
TW-804EP-F
-
Type:
-
POE media converter
-
Material:
-
Metal Shell
-
Ehternet Port:
-
4*10/100M PoE /RJ45
-
Fiber Port:
-
1 SC optical port uplink
-
power supply:
-
52V 0.93A
-
PoE Transmission Distance:
-
Max.100meters
-
Optical Transmission Distance:
-
20KM

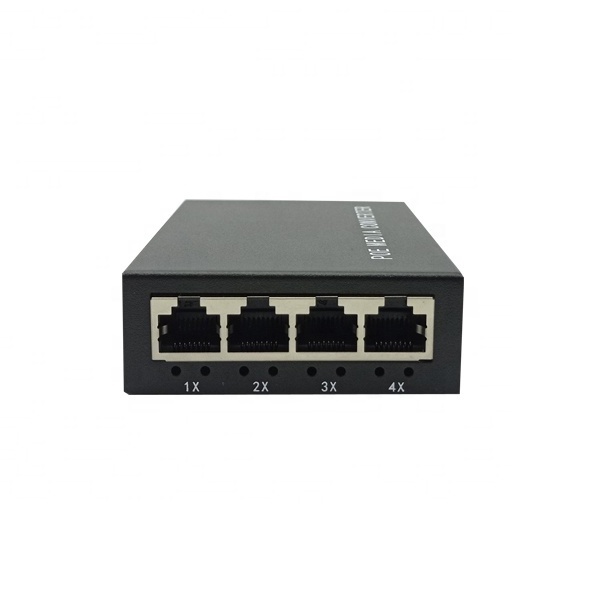

4-Port 10/100M Ethernet PoE Media Converter with 1SC Fiber Optical Transceiver
Model No. :TW-804EP-F
Product Description
TW-804EP-F has a total PoE budget of 48 watts, which is an ideal solution to meeting the demand for sufficient PoE power for network applications. The four 802.3at/af PoE ports provide PoE power injector function which is able to drive two IEEE 802.3at compliant powered devices or four IEEE 802.3af compliant powered devices. The TW-804EP-F also provides a simple, cost-effective and non-blocking wire-speed performance. It comes with a palm-size metal housing, suitable for the desktop deployment of SOHO or home-use network environment.
Product Features
l 4 10/100Mbps Fast Ethernet ports and 1 x 155Mbps fiber optical port
l 4 ports support 52V DC power to PoE powered device
l Complies with IEEE 802.3af/at Power over Ethernet end-span + mid-span PSE
l Up to 4 IEEE 802.3af/2 IEEE 802.3at devices powered
l Supports PoE power up to 30 watts for each PoE port
l Auto detects powered device (PD)
l Circuit protection prevents power interference between ports
l Remote power feeding up to 100m in the standard mode
l Hardware based 10/100Mbps auto-negotiation and auto MDI/MDI-X
l Flow control for full duplex operation and back pressure for half duplex operation
l 0.74M packet size support
l Integrates address look-up engine, supporting 1K absolute MAC addresses
l Automatic address learning and address aging
l Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing
l Desktop palm size
l LED indicators for PoE ready/activity and LINK/ACT
l One 52V DC power jack
Technical Specifications
| Item | Description | |
| Model | TW-804EP-F | |
| Power Supply | Power Supply Mode | Power Adaptor |
| Voltage Range | DC48~57V | |
| Power Consumption | The device < 5W POE power supply <48W | |
| Network Port | Network Ports | 1~4 Ethernet Port:10/100Mbps |
| Uplink optical fiber port:155Mbps | ||
| Transmission Distance | 1~4 Ethernet Port:100m | |
| Uplink optical fiber port:0-120KM | ||
| Transmission Media | 1~4 Ethernet Port:Cat5e/6 standard UTP cable, | |
|
Uplink Port:Optical fiber SC |
||
| POE Agreement | IEEE802.3 af/at standards | |
| PoE Power Supply Mode | End-span method | |
| PoE Power Supply Wattage | Each port≤30W,Whole device<48W | |
| Network Switch | Network Standard | IEEE802.3 10BASE-T,IEEE802.3u 100BASE-TX/FX,IEEE802.3az |
| Swap Mode | Store-and- forward | |
| Data-Caching Mechanism | 0.74M | |
| MAC Address List | 1K | |
| Status Indicators | Power Indicator Light | One power light (Green) |
| Optical Fiber Port Indicator | One fiber link indication light ( green), Green light keeps on when the fiber port is well connected; Blinking when transceiver data | |
| PoE Indicator | 4 PoE indicator light(yellow) | |
| PoE Network Port LED | 1~4 port ( green light on RJ45 jack) Blinking when transceiver data | |
| Protection Level | Surge Immunity | Level 3, executive standard:IEC61000-4-5 |
| Electrostatic Protection |
1a touch electric discharge: level 3;1a Air discharge: level 3 ,Executive standard:IEC61000-4-2 |
|
| Operating Environment | Working Temperature | 0℃~55℃ |
| Storage Temperature | -40℃~70℃ | |
| Humidity | 0~95%(non-congeal) | |
| Mechanical Attributes | Dimensions | 94mmx70mmx26mm (L*W*H) |
| Color | Black | |
| Weight | 360g | |
| Reliability | Mean time between failures | >50000h |
