Quick Details
-
Brand Name:
-
XD
-
Model Number:
-
XD-GP-C dc to ac power inverter
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
197*55*150mm
-
Weight:
-
1 kg
-
Certificate:
-
CE RoHS, CE RoHS
-
Product name:
-
dc to ac power inverter for car sale with battery charger
-
Color:
-
black , blue , pink or customized power inverter
-
Item:
-
pure sine wave power inverter
-
Load:
-
power inverter used for solar system, home application, office
-
Keyword:
-
pure sine wave electric power inverter 300 watt for car
-
Protection:
-
Short Circuit Protection,over load
-
Inverter:
-
Pure Sine Wave Output
-
OEM:
-
Accept OEM&ODM
Quick Details
-
Output Current:
-
optional
-
Customized support:
-
Accept OEM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XD
-
Model Number:
-
XD-GP-C dc to ac power inverter
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
197*55*150mm
-
Weight:
-
1 kg
-
Certificate:
-
CE RoHS, CE RoHS
-
Product name:
-
dc to ac power inverter for car sale with battery charger
-
Color:
-
black , blue , pink or customized power inverter
-
Item:
-
pure sine wave power inverter
-
Load:
-
power inverter used for solar system, home application, office
-
Keyword:
-
pure sine wave electric power inverter 300 watt for car
-
Protection:
-
Short Circuit Protection,over load
-
Inverter:
-
Pure Sine Wave Output
-
OEM:
-
Accept OEM&ODM

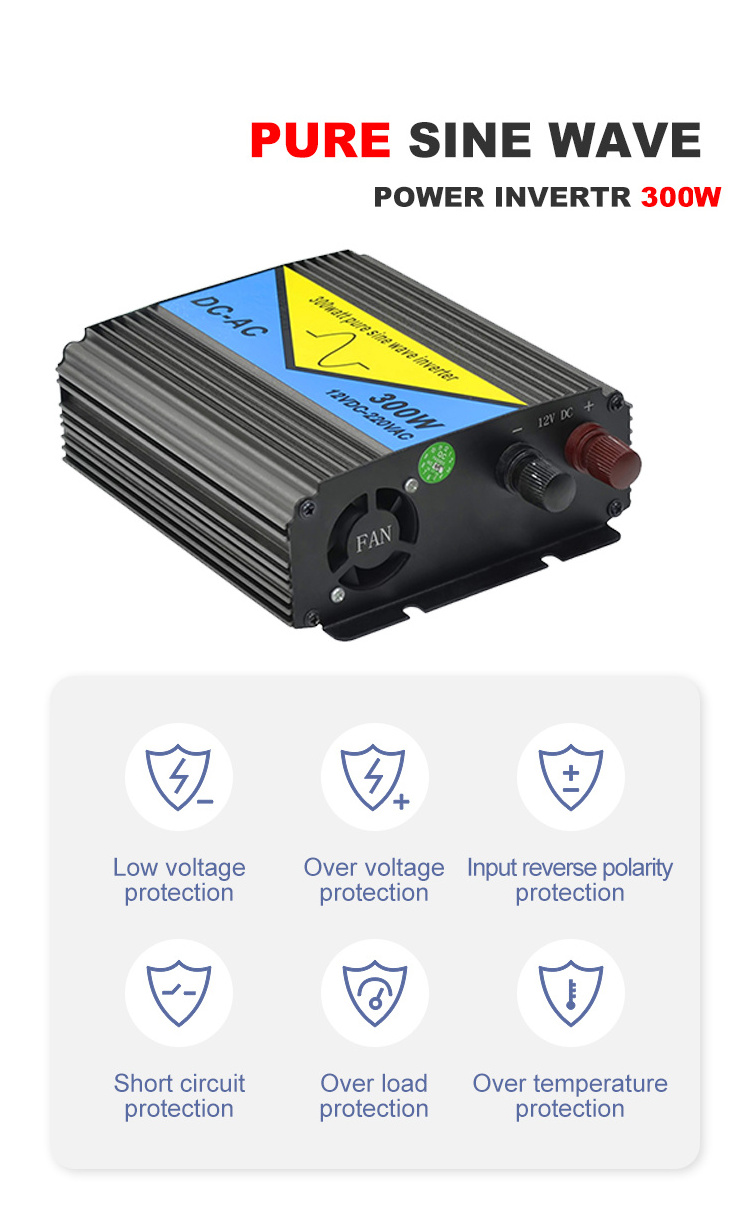

Rechargeable Pure Sine Wave Power Inverter 300 Watt China Electric Car Dc to Ac Power Inverter for Car Sale with Battery Charger
|
Specification
|
|
|
|
|
|
|
|
|
||||||||
|
Model : GP-C
|
|
30112/24
|
50112/24
|
10212/24
|
15212/24
|
20212/24
|
25224
|
30224
|
||||||||
|
Rated Power
|
|
300W
|
500W
|
1000W
|
1500W
|
2000W
|
2500W
|
3000W
|
||||||||
|
Battery Voltage
|
|
DC 12V/24V
|
|
|
|
|
DC 24V
|
|
||||||||
|
Size（L*W*Hmm）
|
|
197*55*150
|
|
350*150*63
|
407*198*90
|
|
470*222*90
|
|
||||||||
|
Package Size（L*W*Hmm）
|
|
210*80*175
|
|
370*105*185
|
432*125*233
|
|
520*138*272
|
|
||||||||
|
N.W.(kg)
|
|
1
|
1
|
2.2
|
4.2
|
4.5
|
7.2
|
7.2
|
||||||||
|
G.W.(kg)（Carton Packing）
|
|
1.5
|
1.5
|
2.5
|
4.8
|
5
|
8
|
8
|
||||||||
|
Input
|
DC input voltage range
|
10.5-15VDC (single battery voltage)
|
|
|
|
|
|
|
||||||||
|
|
Voltage of the battery
switched on automatically |
≥11V (single battery voltage)
|
|
|
|
|
|
|
||||||||
|
Ouput
|
Output voltage (battery mode)
|
220VAC±2%
|
|
|
|
|
|
|
||||||||
|
|
Output frequency (battery mode)
|
50/60HZ±1%
|
|
|
|
|
|
|
||||||||
|
|
Efficiency
|
≥85%
|
|
|
|
|
|
|
||||||||
|
|
Output wave form
|
Pure Sine Wave
|
|
|
|
|
|
|
||||||||
|
Protection
|
Battery low voltage alarm
|
9.5VDC±0.5V (single battery voltage)
|
|
|
|
|
|
|
||||||||
|
|
Battery over voltage protection
|
15VDC±0.5V (single battery voltage)
|
|
|
|
|
|
|
||||||||
|
|
Ouput undervoltage protection
(Battery mode) |
≤187VAC Turn off the output
|
|
|
|
|
|
|
||||||||
|
|
Output short circuit protection
(Battery mode) |
machine shut off，battery cut off
|
|
|
|
|
|
|
||||||||
|
|
Over power protection
|
110% more than rated capacity
|
|
|
|
|
|
|
||||||||
|
|
Temperature protection
|
≥90℃ machine shut off
|
|
|
|
|
|
|
||||||||
|
|
Protection instructions: Turn off the machine during protection and the machine will automatically return to normal after
troubleshooting |
|
|
|
|
|
|
|
||||||||
|
Display
|
|
LED. Red light:battery fault,
Green light: Normal electricity |
|
|
LED. Red light:battery fault,
Green light: Normal electricity+Digital tube voltmeter |
|
|
|
||||||||
|
Thermal method
|
|
Cooling fan in intelligent control
|
|
|
|
|
|
|
||||||||
|
On-off
|
|
locking-type
|
|
|
|
|
|
|
||||||||
|
Environment
|
Operating temperature
|
-10℃~+40℃
|
|
|
|
|
|
|
||||||||
|
|
Storage temperature
|
-15℃~60℃
|
|
|
|
|
|
|
||||||||
|
|
Noise
|
≤60dB
|
|
|
|
|
|
|
||||||||
|
|
Highest altitude
|
2000m（More than derating）
|
|
|
|
|
|
|
||||||||
|
|
Relative humidity
|
0%~95%(No condensation)
|
|
|
|
|
|
|
||||||||
