Each charger in one carton.
Carton Size:32*16*18cm
Gross Weight:2.5kg
- Product Details
- {{item.text}}
Quick Details
-
Function:
-
CC-CV
-
Model Number:
-
MAS-Charger-900W
-
Input voltage and current:
-
100-240Vac/10A
-
output voltage and current:
-
12V/30A, 24V/30A, 36V/20A, 48V/15A, 60V/12A
-
Maximum Output Power:
-
900W
-
Place of Origin:
-
guangdong
-
Waterproof:
-
IPx4
-
Max efficiency:
-
> 90%
-
Noise:
-
<40dB
-
Size:
-
205*105*68mm
-
Weight:
-
1.8kg
Quick Details
-
Type:
-
Electric
-
Port:
-
DC
-
Material:
-
Aluminium Casting
-
Function:
-
CC-CV
-
Model Number:
-
MAS-Charger-900W
-
Input voltage and current:
-
100-240Vac/10A
-
output voltage and current:
-
12V/30A, 24V/30A, 36V/20A, 48V/15A, 60V/12A
-
Maximum Output Power:
-
900W
-
Place of Origin:
-
guangdong
-
Waterproof:
-
IPx4
-
Max efficiency:
-
> 90%
-
Noise:
-
<40dB
-
Size:
-
205*105*68mm
-
Weight:
-
1.8kg
Product Description

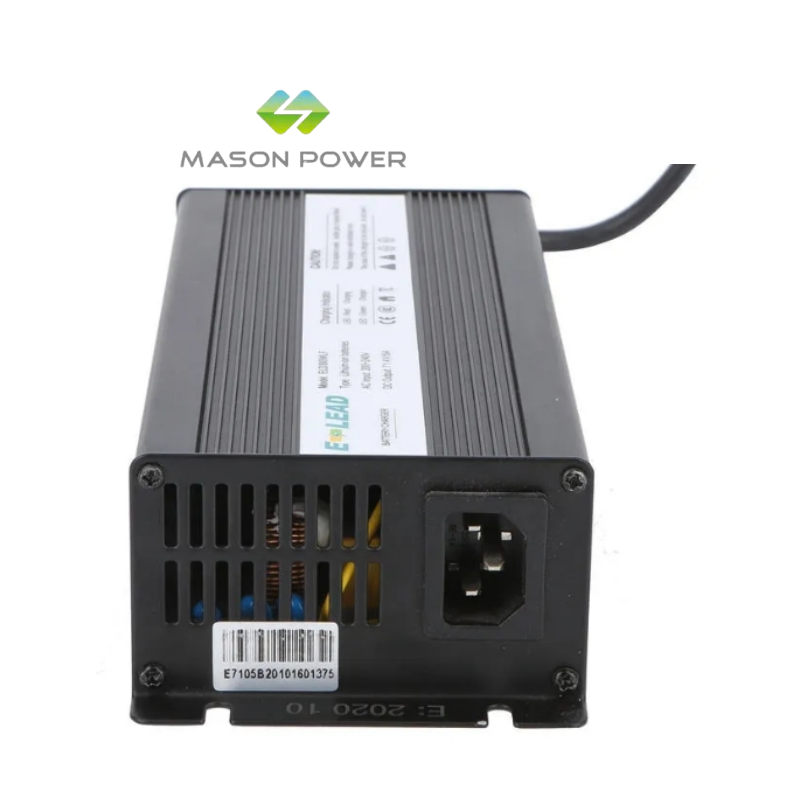

Smart Battery Charger
The charging procedure is regulated through software, allowing us to establish an ideal charging profile, encompassing pro-charge stage, CC stage, CV stage, float charge stage, trickle charge stage, and more. Furthermore, we have the capability to incorporate additional features such as initiating charging once the battery voltage falls within the correct range, automatic shutdown upon full charge, restart under specific conditions, CAN or RS485 communication, reprogramming, and beyond. For further details, please do not hesitate to get in touch with us.
|
Model Name:
|
MAS-Charger-900W
|
Max Input Power:
|
900W
|
||
|
Shell:
|
Aluminium profile
|
Size:
|
223*105*68mm
|
||
|
AC Input:
|
100-240V/40-70Hz
|
Waterproof:
|
IPX4
|
||
|
Max Efficiency:
|
>=93%
|
Operating Temperature:
|
-20 to 65℃
|
||
|
Storage Temperature:
|
-40 to 95℃
|
Noise:
|
<=40dB
|
||
|
Cooling:
|
Active cooling with fan
|
|
|
||
|
Protection:
|
1,Input low-voltage&over-voltage protection.2,Overheat protection.3,Output empty-load protection.4,Output short&reverse
protection.5,Output over-current&over-voltage protection.6,Automatic shutdown when fully charged |
|
|
||
|
Common Output
|
|
|
|
|
|
|||||
|
Nominal Voltage
|
Lead Acid
|
LiFePO4
|
Li-ion
|
@110Vac
|
@220Vac
|
|||||
|
12V
|
14.7V
|
14.6V
|
16.8V
|
30A
|
30A
|
|||||
|
24V
|
29.4V
|
29.2V
|
29.4V
|
30A
|
30A
|
|||||
|
36V
|
44.1V
|
43.8V
|
42V
|
20A
|
20A
|
|||||
|
48V
|
58.8V
|
58.4V
|
58.8V
|
15A
|
15A
|
|||||
|
60V
|
73.5V
|
73V
|
67.2V
|
12A
|
12A
|
|||||
|
72V
|
88.2V
|
87.6V
|
84V
|
10A
|
10A
|
|||||
|
84V
|
102.9V
|
102.2V
|
100.8V
|
8A
|
8A
|
|||||
|
96V
|
117.6V
|
116.8V
|
109.2V
|
7A
|
7A
|
|||||
|
Remark:We are manufacturer!We can customize the charging profile according to your battery or your requests.
|
|
|
|
|
|
|||||
AC Cable and Connector
You can customize the AC cable.There are more options than those connectors in the picture.
For example:
Standard Length of AC cable: 1m/1.2m/1.5m/2.8m...Wire
For example:
Standard Length of AC cable: 1m/1.2m/1.5m/2.8m...Wire
size:3*1mm²/3*1.31mm²/3*1.5mm²....
DC Cable and Connectors
Same as AC cable, you can customize the DC cable.There are more options than those connectors in the picture.
For example:
Standard Length of DC cable: 1m/1.5m/2m/2.5m...Wire size: 2*2.5mm² / 2*3.5mm²/2*4mm²...Common DC connectors (We can provide more connectors than those below):
For example:
Standard Length of DC cable: 1m/1.5m/2m/2.5m...Wire size: 2*2.5mm² / 2*3.5mm²/2*4mm²...Common DC connectors (We can provide more connectors than those below):
