Quick Details
-
Feature:
-
High Efficient
-
Marketing Type:
-
New Product 2022
-
Weight:
-
340 KG
-
Product name:
-

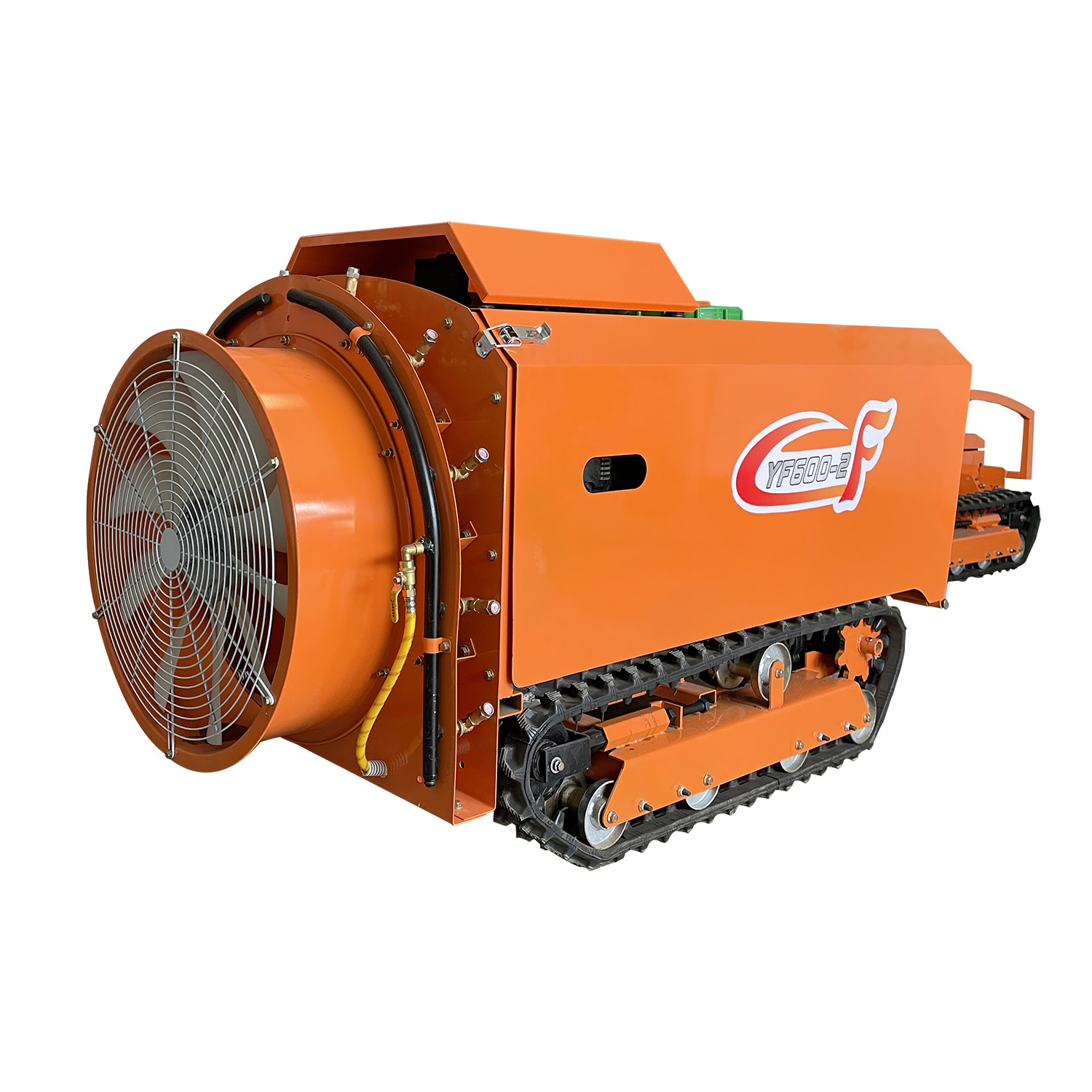

Cawler Orchard Power Sprayer
-
Operation way:
-
Remote Control / Manual
-
Track Width:
-
120
-
Working Slope:
-
≤30
-
Remote Control Distance:
-
≤200
-
Walking speed:
-
0-80 Adjustable
-
Spray type:
-
Air Blown
-
Number of nozzles:
-
10
-
Tank capacity:
-
500
-
Single side spray:
-
4-5
Quick Details
-
Place of Origin:
-
Shandong
-
Brand Name:
-
CF
-
Diameter:
-
170 cm
-
Feature:
-
High Efficient
-
Marketing Type:
-
New Product 2022
-
Weight:
-
340 KG
-
Product name:
-
Cawler Orchard Power Sprayer
-
Operation way:
-
Remote Control / Manual
-
Track Width:
-
120
-
Working Slope:
-
≤30
-
Remote Control Distance:
-
≤200
-
Walking speed:
-
0-80 Adjustable
-
Spray type:
-
Air Blown
-
Number of nozzles:
-
10
-
Tank capacity:
-
500
-
Single side spray:
-
4-5
|
Host
|
|
|
|
Drive
|
|
|
||||
|
Project Name
|
Unit
|
Parameter Value
|
|
Project Name
|
Unit
|
Parameter Value
|
||||
|
Model
|
/
|
3WF-400-A
|
|
Generator Rated Power
|
KW
|
5
|
||||
|
Dimensions (L×W×H)
|
mm
|
1700*850*850
|
|
Walking Motor Rated Power
|
KW
|
1.6
|
||||
|
Structural Quality
|
kg
|
340
|
|
Battery Type
|
|
Dry Battery
|
||||
|
Track width
|
mm
|
120
|
|
Battery Capacity
|
Ah
|
80
|
||||
|
Working Slope
|
°
|
≤30
|
|
Charging Type
|
|
Automatic charging when the generator is working
|
||||
|
Remote Control Distance
|
m
|
≤200
|
|
Remote Battery Voltage
|
V
|
24
|
||||
|
Walking Speed
|
m/min
|
0-80 Adjustable
|
|
|
|
|
||||
|
Spraying
|
|
|
||
|
Project Name
|
Unit
|
Parameter Value
|
||
|
Engine Model
|
|
192F
|
||
|
Engine Structure
|
|
Horizontal Bar Four Stroke
|
||
|
Engine Fuel Type
|
|
Gasoline
|
||
|
Engine Average Fuel Consumption
|
L/h
|
1.5 - 2
|
||
|
Engine Capacity
|
cc
|
452
|
||
|
Engine Rated Power
|
HP
|
12.2
|
||
|
Spray Type
|
|
Air Blown
|
||
|
Number of Nozzles
|
per
|
10
|
||
|
Tank Capacity
|
catty
|
500
|
||
|
Single Side Spray
|
m
|
4 - 5
|
||
|
Drug Pump Model
|
|
WY-60B3 Plunger Pump
|
||
|
Pump Pressure
|
Mpa
|
1.0 - 4.0
|
||
|
Drug Pump Speed
|
rpm
|
800 - 1200
|
||
|
Drug Pump Flow
|
L
|
32 - 48
|
||
|
Drug Pump Power
|
HP
|
3.0 - 6.5
|
||
