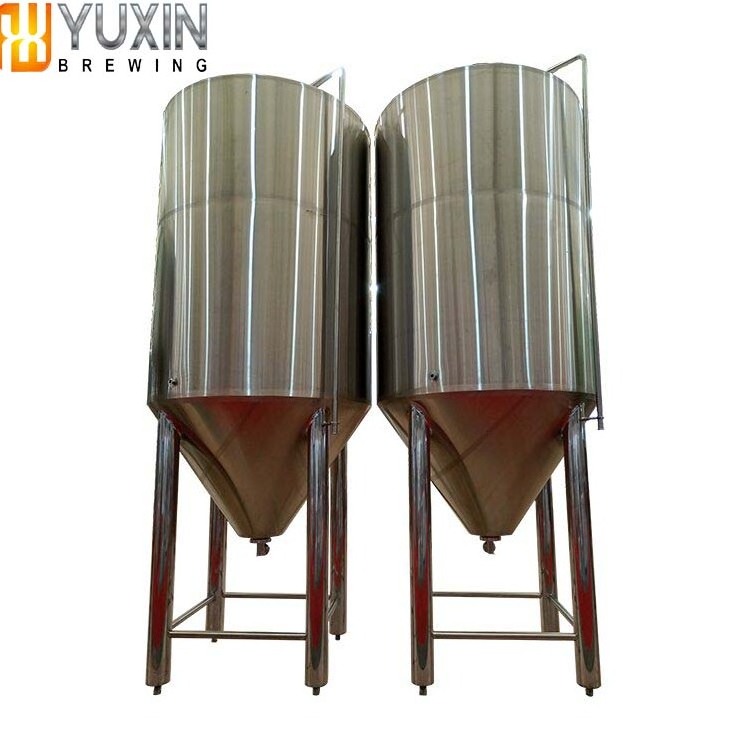

1000l stainless steel beer brewing equipment conical fermentation tank beer fermenter
1000l stainless steel beer brewing equipment conical fermentation tank beer fermenter
1000l stainless steel beer brewing equipment conical fermentation tank beer fermenter
1000l stainless steel beer brewing equipment conical fermentation tank beer fermenter
1000l stainless steel beer brewing equipment conical fermentation tank beer fermenter
1000l stainless steel beer brewing equipment conical fermentation tank beer fermenter
1000l stainless steel beer brewing equipment conical fermentation tank beer fermenter
1000l stainless steel beer brewing equipment conical fermentation tank beer fermenter

1000l stainless steel beer brewing equipment conical fermentation tank beer fermenter

FOB Reference Price: Get Latest Price
≥1 Pieces
US $2600
≥2 Pieces
US $2300
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Power:
15-70Kw depends on size
Dimension(L*W*H):
depends on actual capacity and customer's requests
Weight:
300 KG
Name:
1000l stainless steel beer brewing equipment conical beer fermenter
Keywords:
1000l stainless steel conical fermenter, beer fermenter
thickness of tanks:
3mm for interior shell/2mm for exterior shell
Heat Insulation:
Polyurethane with Thickness=80mm
Volume Design:
Properly according to the capacity request
Controlling System:
PLC, HMI or Touch Panel
conical bottom:
60 degree or special design according to your real space
Dry hopping port:
optional
Drawing of tank:
supplied for free
Certification:
CE PED EAC GOST

Quick Details

Place of Origin:
Shandong, China
Brand Name:
YUXIN fermenter
Voltage:
3phase/380(220,400,415,440)v/50 (60)Hz
Power:
15-70Kw depends on size
Dimension(L*W*H):
depends on actual capacity and customer's requests
Weight:
300 KG
Name:
1000l stainless steel beer brewing equipment conical beer fermenter
Keywords:
1000l stainless steel conical fermenter, beer fermenter
thickness of tanks:
3mm for interior shell/2mm for exterior shell
Heat Insulation:
Polyurethane with Thickness=80mm
Volume Design:
Properly according to the capacity request
Controlling System:
PLC, HMI or Touch Panel
conical bottom:
60 degree or special design according to your real space
Dry hopping port:
optional
Drawing of tank:
supplied for free
Certification:
CE PED EAC GOST
Product Description
stainless steel conical beer fermenter tank with cooling
Can be customized
Capacity
100l-100000l
walls
double walls, with dimple cooling jacket, with insulation
pressure
working pressure 1-1.5bar;
testing pressure 4bar
manhole
on top or on side, customized
dimension
customized as your actual space
material
SUS304/SUS316
cone degree
normally 60-72 degree, it can be customized as requirement
L-pipe
2pieces
sample valve
on the body bottom or on the cone, customized
racking valve
on the cone, customized
Side manhole fermenter/ bright beer tank
Manhole on the side
stainless steel 304
double walls, inner wall and outer wall
Sample valve on the side of body
safety valve on the top
pressure valve and gauge on the CIP arm
carbonation port ans stone on the side of BBT body
cone bottom and dish top
dimension can be customized as your actual space
  • Top manhole fermenters

Manhole on the top
stainless steel 304
double walls, inner wall and outer wall
Sample valve on the side of body
safety valve on the top
pressure valve and gauge on the CIP arm
carbonation port ans stone on the side of BBT body
cone bottom and dish top
dimension can be customized as your actual space

Assort with ladder

Detailed Images
We make sure each detail perfect, and supply best service for each beer project!
Size Information
Common size as below(all can be customized as your actual space):
Capacity
500l
1000l
2000l
3000l
5000l
Diameter(mm)
960
1260
1560
1800
2000
Height(mm)
2350
2600
3100
3550
4450

other fruit wine cider fermentation / storage tanks

-stainless steel
-with or without dimple cooling jacket
-customized
Related Products
Packing&Shipping
Air bubble film, stretching membrane, steel shelf, free-fumigation wooden box, to make everything safe in containers.
After Sales Service
Your perfect brewing is our passion!
after-sale gurantee 3 years warranty; one year for auxiliary machine; lifetime maintenance and technical service. If you have any question/problem during use, we'll reply you in 24hours, and help you solve the problem online. When you need any accessory/parts for replacement during use, we'll send out by express(DHL/UPS/FedEx/EMS) immediately after your information. Just if(normally never happen) there's serious problem during use, we'll send out one engineer to your site as soon as possible. Our company will arrange on-site visits and equipment maintenance for some projects occasionally, to ensure that our customers have face-to-face communication with our staff.
