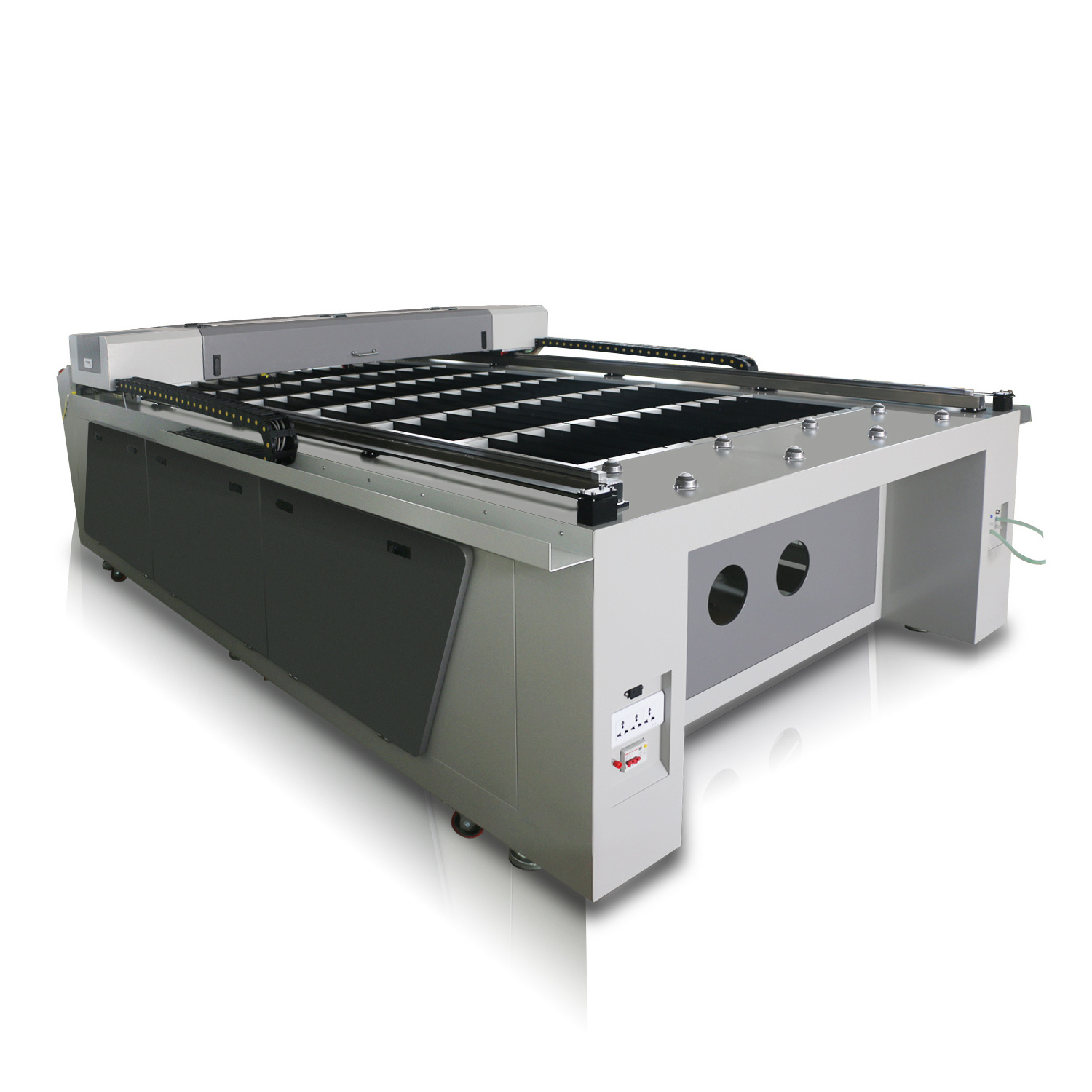

Offline 1325 Large format laser and customized etching engraving cutting machine for fabric leather textile paper plywood MDF co2 laser and customized etching cutter machine factory sale
- Product Details
- {{item.text}}
Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
3840*2180*930mm
-
Weight (KG):
-
1300 KG
-
Keywords:
-
1325 Laser Engraving Cutting Machine
-
Laser power:
-
60W/80W/100W/130W/150W
-
Software:
-
CorelDraw
-
Control system:
-
Ruida Control System
-
Support material:
-
MDF Acrylic Glass Wood Plastic
-
Working table:
-
Honeycomb
-
Laser head:
-
Double Laser Head Or Single
-
Certification:
-
ISO, CE
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
Quick Details
-
Engraving Area:
-
2500*1300 mm, 1300*2500mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
400mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
3840*2180*930mm
-
Weight (KG):
-
1300 KG
-
Keywords:
-
1325 Laser Engraving Cutting Machine
-
Laser power:
-
60W/80W/100W/130W/150W
-
Software:
-
CorelDraw
-
Control system:
-
Ruida Control System
-
Support material:
-
MDF Acrylic Glass Wood Plastic
-
Working table:
-
Honeycomb
-
Laser head:
-
Double Laser Head Or Single
-
Certification:
-
ISO, CE
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
1325 Large format laser engraving cutting machine for fabric leather
textile paper plywood MDF co2 laser cutter machine
Product Description
Portable laser engraver cutter machine large laser engraving and cutting machines price
1325 100w 130w 150W co2 laser engraving cutting machine engraver wood plywood mdf
A laser cutting engraving machine can be thought of as three main parts: a laser,
a controller and a surface.
The laser is like a pencil - the beam emitted from it allows the controller to trace patterns
onto the surface.
Optional configuration :
1.Double Head/four head
2. Industry computer
3.CCD Camera
4.WiFi
5.Visible Red light
6.Double work table(aluminum blade table+honeycomb)
7.Warning system
1325 Large format laser engraving cutting machine for fabric leather textile
paper plywood MDF co2 laser cutter machine
Key Features of non metal cutting machine
1.Open type working table achieves large format engraving and cutting area
2.dust helmet keeps linear guide rail clean and smooth, which extends machine lifespan
3.Guide rail grooves is one piece type and made by milling machine.Light patch
won't be changed after long time using,
which makes the whole machine more stable and cutting more precise
4.whole machine with stable mechanical design, ensure high stability,
high speed and high prescison
5.honeycomb table and with thicker Znfe focus lens, more durable and smooth.
Laser pathsystem use Mo mirror imported lens
which keeps the same power output at any site on working table
1325 100w 130w 150W co2 laser engraving cutting machine engraver wood plywood mdf
Quality assurance of metal cutting machine
1. All the machine parts are famous brand such as Ruida, CSK, Leadshine...
2. QC will inspect each laser machine with 25 items to ensure good quality.
3. 72 hours reliability test will be done for each machines before shipment.
Please kindly confirm which you are interested in.
If not find the one you need in the excel, pls notice that OEM ODM also available
for Flash Laser manufacturer which owns 8000 square meters factory
Specification
1325 Large format laser engraving cutting machine for fabric leather textile
paper plywood MDF co2 laser cutter machine
For engraving: can engrave all kinds of non-metal, such as acrylic, wood, glass, stone etc.
For cutting: can cut non-metal except glass and stone
| TYPE | FL-1390/FL-1410/FL-2513/FL-1530 |
| Working Area | 1300mm*900mm/1400*1000MM/2500*1300MM/1500*3000MM |
| Laser Power | 80w(100W/130W/150W/180W is optional) |
| Max cutting thickness | 12MM plywood and acrylic at one time |
| Laser Type | EFR OR RECI Brand Glass CO2 laser tube--the best made in China |
| Transmitting Parts | Timing Belt |
| HIWIN Linear Guide Rail--the best made in Taiwan | |
| Drive Type | LeadShine 3-ph Stepper Driver and Motor--the best made in China |
| Default Software / Controller | Laserwork / DSP Control from LeadShine |
| Max. Engraving Speed | 0-1000mm/s |
| Max. Cutting Speed | 0-600mm/s |
| Positioning Accuracy | 0.01mm max |
| Maximum forming character | English:1 x 1mm |
| Power Supply | 220V±10% 50HZ or 110V±10% 60HZ |
| Software Supported | Adobe Illustrator (AI), ArtCut, CorelDraw, PhotoShop, AutoCAD |
| Graphic Format Supported | PLT, DXF, BMP, JPG, GIF, PGN, TIF and so on |
| Machine configuration | 1.220V±10% 50HZ or 110V±10% 60HZ |
| 2.80W laser power tube | |
| 3.Ruida control system(mother board and panel) | |
| 4.LeadShine motor drive system | |
| 5.HIWIN linear guide rail | |
| 6.red dot position, Red pointer can help you find the engrave position quickly. | |
| 7.DSP control system | |
| 8.moterized up and down working table | |
| 9. Auto feeding bed worktable | |
| 10. 1×Air Pump(installed inside the machine) for Air Assist (for blowing off debris as the laser engrave or cut) | |
| 11. 1×Exhaust(installed inside the machine) with Tube ducts ( for extracting gases from the work area) | |
| 12. 1×Water chiller CW-3000 | |
| 13. 1×USB Cable (connecting PC and laser) | |
| 14. 1×DVD (Including software, User manual, Guiding videos etc.) | |
| 15. 1×Power Cable | |
| 16. 1×Tool box | |
| Optional | 1.auto focus |
| 2.rotary device | |
| 3.up and down working table | |
| 4.as your demand | |
| Thickness | Thickness: Varies by material, MAX 12mm Acrylic one time. |
| Cuts & Engraves | wood/fabric/ leather/paper/cardboard/ plexiglas (acrylic)/Delrin (acetal)/mylar/rubber…and more |
| Engraves Only | glass/marble/rubber stamps/stoneceramic tile/anodized aluminum/titanium/corian …and more |
| Warranty | The warranty for whole machine is effective 1 years from the Ex-Factory Date. But for the laser tube and focus lens and the reflective mirrors, the warranty is 3months.this is the warranty of the manufacture to us. |
| Working video | auto feeding laser machine to cut cloth/fabric, china auto feeding laser machine, flash laser |
| https://www.youtube.com/watch?v=R8JfS0_eQ9g | |
| https://www.youtube.com/watch?v=cfThJqOwNvc | |
| https://www.youtube.com/watch?v=xl1w21UGHfc | |
| https://www.youtube.com/watch?v=GbI8qBaQdhs | |
| https://www.youtube.com/watch?v=ah7SNFpQcn4 | |
| https://www.youtube.com/watch?v=jfdH0MLnvUU |
1325 100w 130w 150W co2 laser engraving cutting machine engraver wood plywood mdf
Product details
Portable laser engraver cutter machine large laser engraving and cutting machines Main parts:
Focus on laser engraving machine more than 10 years,our own factory welcome to visit at any time.
1.TAIWAN square rails and belt,Leadshine 860 Driver
2. RECI Co2 Laser tube 100W
3. RUIDA 6442 control system
4. Imported mirror and lens
5. Honey or Knife table
6. Air Compressor 5,550W Exhaust fan,
7. Wooden package
8. Red light point,Wifi control
9. Water chiller CW3000(for 80W-100W) ,CW-5000(for 100W-130W),CW-5200(for 130W-150W)
1325 Large format laser engraving cutting machine for fabric leather textile
paper plywood MDF co2 laser cutter machine
It is widely used in electronic, craft and gift, garment, leather, toy, computerized embroidery,
p acking and printing, shoe making, furniture, advertising industries ect.
Portable laser engraver cutter machine large laser engraving and cutting machines Parts
1325 100w 130w 150W co2 laser engraving cutting machine engraver wood plywood mdf
1325 Large format laser engraving cutting machine for fabric leather textile paper plywood MDF co2 laser cutter machine
1325 100w 130w 150W co2 laser engraving cutting machine engraver wood plywood mdf
Application & Cutting and Engraving Samples
Co2 Laser engraving machine well work for all non-metal material such as wood, bamboo, jade,
marble, organic glass, crystal,plastic, garments, paper, leather, rubber, ceramic, glass, etc.
1325 100w 130w 150W co2 laser engraving cutting machine engraver wood plywood mdf
1325 Large format laser engraving cutting machine for fabric leather textile paper plywood MDF co2 laser cutter machine
1325 100w 130w 150W co2 laser engraving cutting machine engraver wood plywood mdf
Packing & Delivery
1325 Large format laser engraving cutting machine fabric leather textile paper plywood MDF co2 laser cutter machine
Our laser machines wooden box package include 3 layers:
1.Outside package:Polywood case with metal belt
2.Middle package:We use foam to cover the machine
3.Inner package:We use waterproof plastick bag to cover all the machine.
The laser machine is packed with all the spare parts in the wood case .
We ship the machine by sea to the port and by express (DHL/FedEx/TNT/UPS...)to door.
1325 100w 130w 150W co2 laser engraving cutting machine engraver wood plywood mdf
