Quick Details
-
Marketing Type:
-
New Product 2021
-
Weight (KG):
-
1000 KG
-
Power (kW):
-
10
-
Name:
-
Waste Sawdust Recycling Wood Feet Block Hot Press Machine
-
Overall dimensions:
-
4800*900*1420mm
-
Weight:
-
1250kg
-
Raw material:
-
sawdust
-
Temperature control methods:
-
PID control
-
Block Density:
-
550-600kg
-
Motor:
-
23kw
-
Type:
-
Automatic
-
Product name:
-
Waste Sawdust Recycling Wood Feet Block Hot Press Machine
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZFTOPA
-
Machine Type:
-
Hot press machine
-
Marketing Type:
-
New Product 2021
-
Weight (KG):
-
1000 KG
-
Power (kW):
-
10
-
Name:
-
Waste Sawdust Recycling Wood Feet Block Hot Press Machine
-
Overall dimensions:
-
4800*900*1420mm
-
Weight:
-
1250kg
-
Raw material:
-
sawdust
-
Temperature control methods:
-
PID control
-
Block Density:
-
550-600kg
-
Motor:
-
23kw
-
Type:
-
Automatic
-
Product name:
-
Waste Sawdust Recycling Wood Feet Block Hot Press Machine

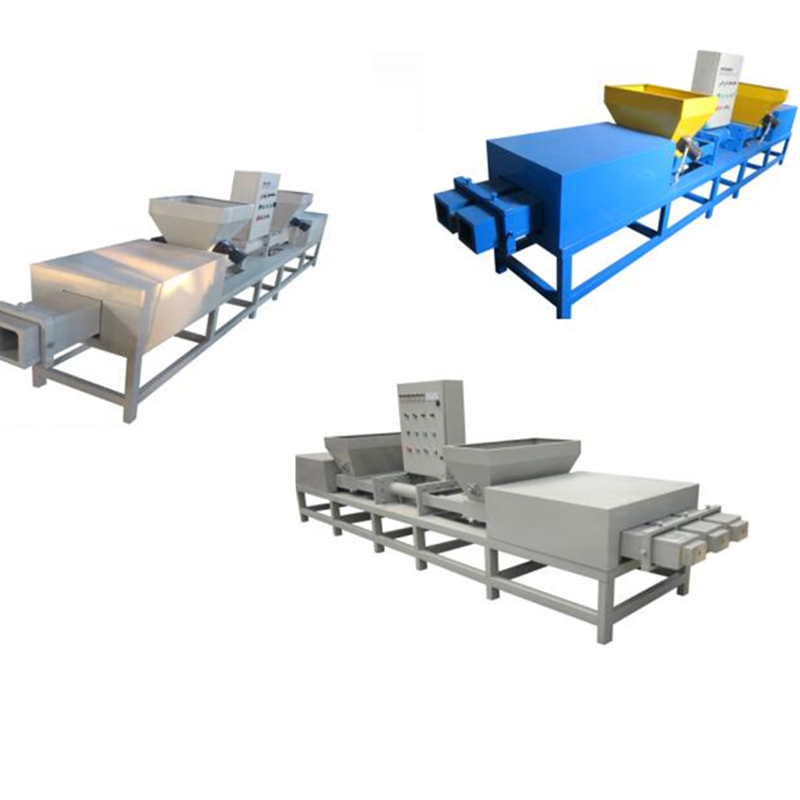

Waste Sawdust Recycling Wood Feet Block Hot Press Machin e
Our factory produce wood shavings tun device is the use of wood shavings from the major, sawdust and other waste materials, ratio of mixing with the glue, by drying, sizing, hot-pressing machine production of wood shavings heated pressurized, sawdust foot pier, the surface smooth, waterproof good (soaked for 48 hours without cracking, sun and wind do not crack), with strong nails, customized according to customer requirements Size of export exemption to avoid fumigation, formaldehyde emission (E2 can provide SGS) are in line with national standards, its internal bonding strength of up to 1.07mpa, the vertical grip for the screw strength 1590N, flat behavior 1660N is the production of wooden pallet fumigation-free stands (foot pier, frame legs) an ideal material, this product is mainly used to replace wood pallets used in foot pier, free Fumigation-free heat treatment.
1. Raw m aterials
wood shavings,sawdust and the other wood waste material
2.The production line
crusher→ dryer →the gluing machine → wood black pressing machine → sawing equipment
3.The finished products
The feet pier with the advantage of flat, smooth and artistic surface, good waterproof(it should not disintegrate after 48 hours in the water,and wind, sun) the nail force strong.you can made according to customer specifications and requirements,export inspection exemption fumigation-free, formaldehyde release a quantity (E2) The products conform to the national standard, which combined strength of 1.07 mpa, grasps the screws force vertical for 1590 N, parallel for 1660 N which is the ideal material for fumigation-free wood tray holder (feet pier, a leg).
The Fumigation-free, non-heat treatment product is mainly used in place of the foot pier in the pallets logs
|
Model |
Machine size (mm) |
Weight (kg) |
Temperature control methods |
Block Density (kg/ m³ ) |
Motor (kw) |
Capacity ( m³/24h ) |
|
ZFRY-75*75 |
4 8 00* 9 00*1420 |
1 2 50 |
PID control |
550-600 |
23 |
4-6 m³/24h |
|
ZFRY-80*80 |
4 8 00* 9 00*1420 |
1 300 |
PID control |
550-600 |
24 |
5-6 m³/24h |
|
ZFRY-80* 90 |
4 8 00* 9 00*1420 |
1 400 |
PID control |
550-600 |
24 |
6-7 m³/24h |
|
ZFRY-90*90 |
4 8 00* 9 00*1420 |
1 500 |
PID control |
550-600 |
24 |
6-8 m³/24h |
|
ZFRY-100*100 |
4 8 00* 9 00*1420 |
1 600 |
PID control |
550-600 |
25 |
6-9 m³/24h |
