Quick Details
-
Output Speed:
-
6000rpm
-
Warranty:
-
1year, 1 Year
-
Weight (KG):
-
8 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
VIC
-
Product name:
-
ZPLE120 High Precision 90 Degree Vertical Planetary Reducer
-
Type:
-
reducer
-
Application:
-
CNC
-
Performance:
-
High Running Performance
-
Feature:
-
Long Operating Life
-
MOQ:
-
1set
-
Stocks:
-
Rich
-
Packing:
-
carton
-
Certification:
-
ISO9001-2008
Quick Details
-
Gearing Arrangement:
-
Planetary
-
Output Torque:
-
8.5Nm-680Nm
-
Input Speed:
-
3000rpm
-
Output Speed:
-
6000rpm
-
Warranty:
-
1year, 1 Year
-
Weight (KG):
-
8 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
VIC
-
Product name:
-
ZPLE120 High Precision 90 Degree Vertical Planetary Reducer
-
Type:
-
reducer
-
Application:
-
CNC
-
Performance:
-
High Running Performance
-
Feature:
-
Long Operating Life
-
MOQ:
-
1set
-
Stocks:
-
Rich
-
Packing:
-
carton
-
Certification:
-
ISO9001-2008
Specifications
|
Model
|
ZPLE120
|
|
|
|
|||
|
MOQ
|
1pc
|
|
|
|
|||
|
Package included
|
1pc ZPLE120
Note:Pls contact us directly or leave us message,if you have other requirements or need other models.
|
|
|
|
|||
|
4 optional size
|
|
60mm,90mm,120mm,160mm
|
|
||
|
Rated output torque
|
|
8.5Nm-680.0Nm
|
|
||
|
Ratio
|
1-stage
|
3,4,5,7,10
|
|
||
|
|
2-stage
|
12,16,20,25,28,35,40,50,70,100
|
|
||
|
|
3-stage
|
80,100,125,140,175,200,250,350,400,500,700,1000
|
|
||
|
Backlash
|
1-stage
|
Precision:<3arc-min
|
Standard:<8arc-min
|
||
|
|
2-stage
|
Precision:<5arc-min
|
Standard:<10arc-min
|
||
|
|
3-stage
|
Precision:<8arc-min
|
Standard:<12arc-min
|
||
|
Stage
|
Stage 1(i:3,4,5,7,10)
|
|
|
Stage 2(i:12,16,20,25,28....)
|
|
|
Stage 3(i:80,100,125,145,175...)
|
|
|
||||||
|
|
A
|
B
|
C
|
A
|
B
|
C
|
A
|
B
|
C
|
||||||
|
Length
(mm)
|
46
|
143.5
|
66
|
62
|
160
|
66
|
78
|
176.5
|
66
|
||||||
|
|
|
|
|
|
|
|
|
|
|
||||||
|
No load torque
(Nm)
|
About 0.6
|
|
|
About 0.3
|
|
|
About 0.3
|
|
|
||||||
|
Efficiency withfull load(%)
|
95
|
|
|
93
|
|
|
90
|
|
|
||||||
|
Backlash(arcmin)
|
standard:<12
|
|
|
standard:<15
|
|
|
standard:<18
|
|
|
||||||
|
Noise(dB)
|
≤58
|
|
|
≤58
|
|
|
≤58
|
|
|
||||||
|
Weight(kg)
|
2.2
|
|
|
2.5
|
|
|
2.8
|
|
|
||||||

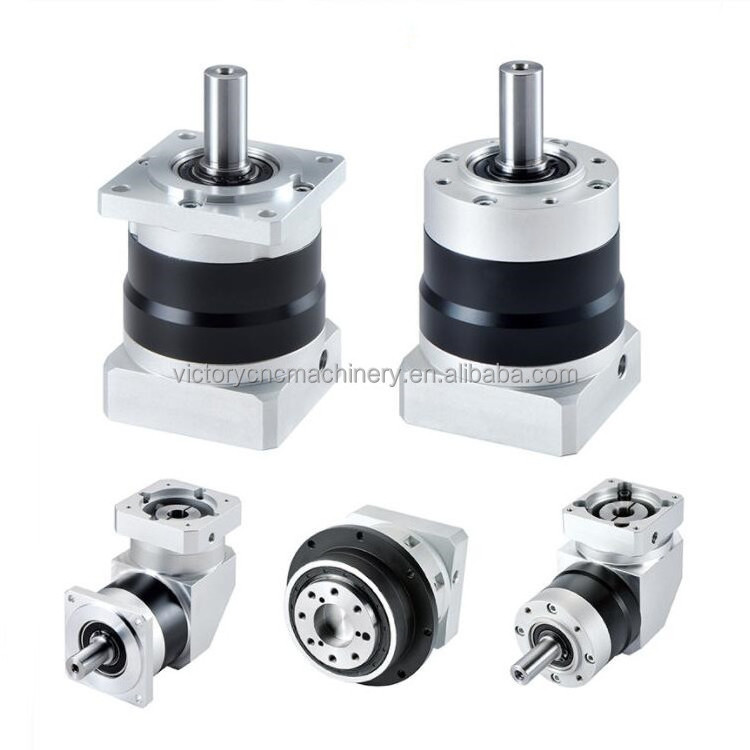

Products Images
