Quick Details
-
Brand Name:
-
KING VITAL
-
Product name:
-
small type waste oil burner
-
Integrated air pump:
-
yes
-
Fuels:
-
all kinds of oil, such as waste engine oil, diesel oil
-
Application:
-
boiler, heater, furnace, oven
-
Oil consumption:
-
2-3 Liter per hour
-
Output power:
-
29-34Kw
-
Output heat:
-
25 500-30 000Kcal/h
-
Tube diameter:
-
90mm
-
Voltage:
-
220v or 110v
-
Business type:
-
original manufacturer
Quick Details
-
Type:
-
Oil Burner
-
Weight (KG):
-
17
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KING VITAL
-
Product name:
-
small type waste oil burner
-
Integrated air pump:
-
yes
-
Fuels:
-
all kinds of oil, such as waste engine oil, diesel oil
-
Application:
-
boiler, heater, furnace, oven
-
Oil consumption:
-
2-3 Liter per hour
-
Output power:
-
29-34Kw
-
Output heat:
-
25 500-30 000Kcal/h
-
Tube diameter:
-
90mm
-
Voltage:
-
220v or 110v
-
Business type:
-
original manufacturer
Introducing the Enhanced KV03-A Burner Series
Due to high demand from customers for waste oil burners with built-in air compressors, our factory has conducted extensive research and tested various types of air pumps to observe their service life and combustion effects. After careful evaluation, we have selected two types of air pumps that are most suitable for our needs. These pumps have been modified to create two editions of the KV03 burner: one with a single flame stage and one with two flame stages.
We have named the KV03 burner with an air pump as KV03-A01.
As many customers are aware, the KV03 burner is our smallest model, with a capacity of 29-34 kW and 30,000 kcal. With the successful development of the KV03-A burners, we are now exploring the possibility of incorporating air pumps into our larger models as well. Our commitment remains to continuously improve quality and ensure customer satisfaction.

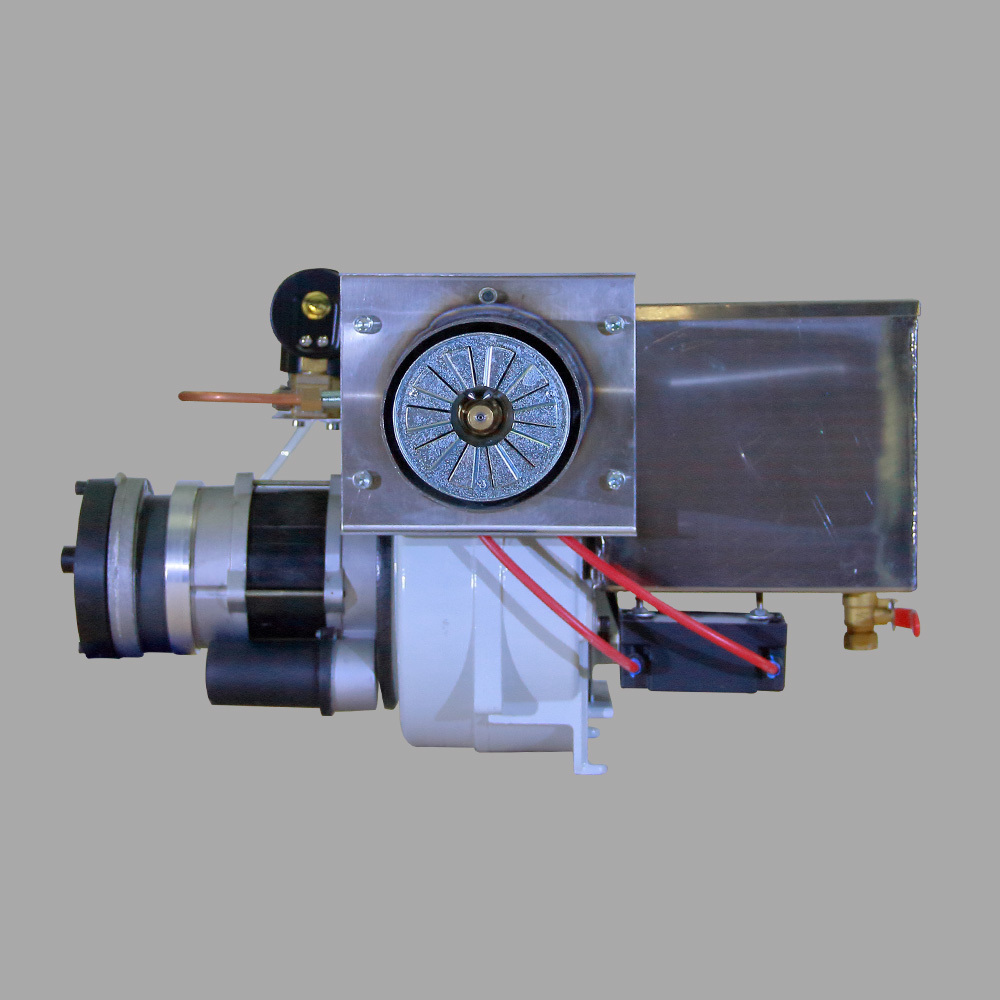

KV03-A01 Picture & Parameter
|
Burner Technical Data Sheet
|
|
|
|
|
||||
|
Oil Consumption
|
|
2-3 Liter per hour
|
|
|
||||
|
Output Power/Heat
|
|
Diesel Oil, Fuel Oil, Pyrolysis Oil, Sample-C1
will produce max
30 000Kcal/h heat, 34Kw power
|
|
|
||||
|
|
|
Vegetable Oil will produce max
27 000Kcal/h heat, 31Kw power
|
|
|
||||
|
|
|
Engine Oil/Waste Engine Oil will produce max
25 500Kcal/h heat, 29kw heat
|
|
|
||||
|
Nozzle
|
|
1*1.0mm
|
|
|
||||
|
Heating Pipe Power
|
|
1.0Kw
|
|
|
||||
|
Motor Power
|
|
180w
|
|
|
||||
|
Voltage
|
|
220v or 110v
|
|
|
||||
|
Working Pressure
|
|
0.5-1.5bar
|
|
|
||||
|
Burner Dimension Table
|
|
|
|
|
||||
|
Tube Diamter
|
|
90mm
|
|
|
||||
|
Tube Length
|
|
130mm
|
|
|
||||
|
Burner Size
|
|
430*450*270mm
|
|
|
||||
|
N.W
|
|
17Kg
|
|
|
||||
KV03-A01 Flame Display
The KV03-A01 burner is available in two options:
• One flame stage
• Two flame stages
KV03-A01 Work Stage
The whole work process is fully automatically and readable, which is power on → oil pump → oil heat → fan → ignite → fire
• power on → oil pump → oil heat
The burner has an oil pump wire, one end of which has already been connected to the burner. Please connect the other end to the oil pump and filter system that comes with the burner. Power on the burner, and it will start to pump oil to the burner's small oil tank. After pumping, please adjust the temperature controller according to the type of fuel used. If you are using waste engine oil, the heating temperature should be set to 90 degrees. The initial heating process will take approximately four minutes.
.......................................................................................................................................................................................................
After the oil heating process is complete, the fan (blast) will automatically initiate a purging phase, followed by ignition.
.......................................................................................................................................................................................................
• ignite → fire
When you hear a clicking sound, it indicates that the solenoid valve is open. Please connect the air pipe at this point.
Compressed air will then enter the oil pipes, mixing with the heated oil to form a flame.
Compressed air will then enter the oil pipes, mixing with the heated oil to form a flame.
.......................................................................................................................................................................................................
Manufacturer Information
As an original manufacturer and direct exporter of waste oil burners for the past 15 years, we take pride in our ability to provide comprehensive service to our clients. Our facilities include a machine tool workshop, forge workshop, assembly room, quality detection department, and foreign trade team, enabling us to provide support from manufacturing to aftersales service.
Our CE-approved burners boast a unique appearance, perfect combustion effects, and mature functions.With an established track record, we have earned the trust of both our old clients and new customers, exporting bulk orders of burners annually.
How is the burner made?
Our CE-approved burners boast a unique appearance, perfect combustion effects, and mature functions.With an established track record, we have earned the trust of both our old clients and new customers, exporting bulk orders of burners annually.
How is the burner made?
Bending machine
Punch press
Welding
Assembly
Testing
Packaging
