Quick Details
-
Voltage:
-
380V/50Hz
-
Power:
-
80Kw~120kW
-
Dimension(L*W*H):
-
Customized
-
Weight (KG):
-
3500
-
Equipment Name:
-
Tool Coating Machine Titanium Nitride Coating Machine
-
Coating Method:
-
PVD Arc Deposition
-
Fixture:
-
Fixture can be custom
-
Kinds of Coating:
-
TiN, TiAlN, TiCN,TiBN, etc
-
Color:
-
Golden and Silver color Coating
-
Application:
-
For decorative and functional coatings on metallic parts
-
Max vacuum degree:
-
8x10-4 Pa
-
Leak rate:
-
0.5 Pa/h
-
Cathodic arc target:
-
Diameter 100x40(mm)
-
Gas consumption:
-
Argon, nitrogen and oxygen, acetylene according to film
Quick Details
-
Machine Type:
-
PVD Coating Machine - Arc Deposition
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Hongfeng PVD Machines
-
Voltage:
-
380V/50Hz
-
Power:
-
80Kw~120kW
-
Dimension(L*W*H):
-
Customized
-
Weight (KG):
-
3500
-
Equipment Name:
-
Tool Coating Machine Titanium Nitride Coating Machine
-
Coating Method:
-
PVD Arc Deposition
-
Fixture:
-
Fixture can be custom
-
Kinds of Coating:
-
TiN, TiAlN, TiCN,TiBN, etc
-
Color:
-
Golden and Silver color Coating
-
Application:
-
For decorative and functional coatings on metallic parts
-
Max vacuum degree:
-
8x10-4 Pa
-
Leak rate:
-
0.5 Pa/h
-
Cathodic arc target:
-
Diameter 100x40(mm)
-
Gas consumption:
-
Argon, nitrogen and oxygen, acetylene according to film

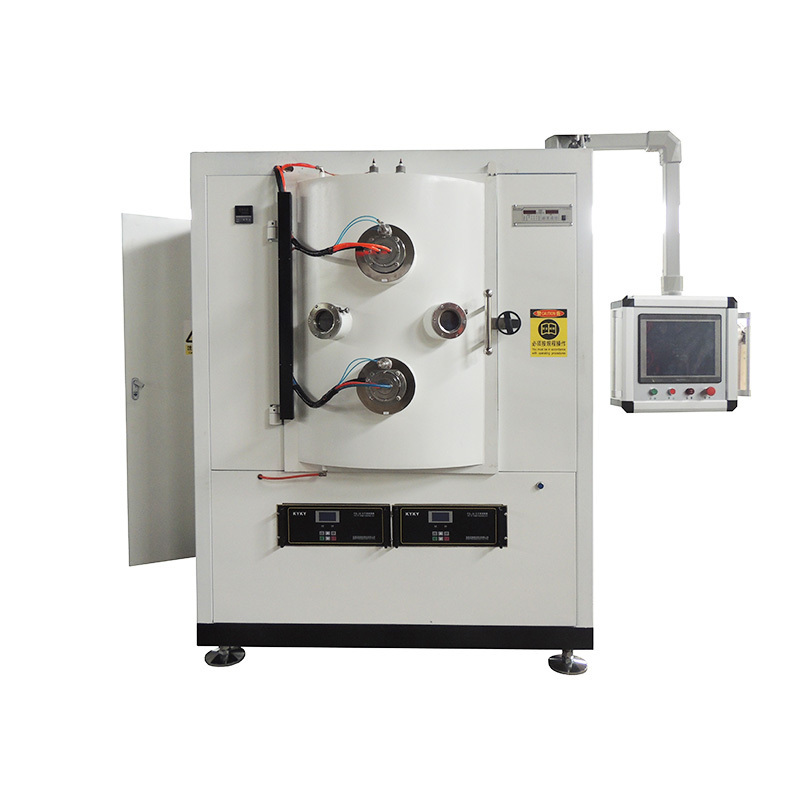

Cathodic Deposition Tool Coating Machine Titanium Nitride Coating Machine
Applications:
Technical Parameter
Vacuum PVD chamber Custom made, by Hongfeng VAC
Vacuum pumping system Diffusion pump/Molecular pumps + Roots pump + Mechanical Pumps
Coating system Arc ion plating/deposition system or hybrid technologies
Working Temperature Up to 550 centigrade
Controlling system Touched screen PLC automatic controlling system
Arc Power supply Arc inverter and bias power supply
Water recycling system For the diffusion pump and cathodes
Pretreatment machine Air Compressor, Chiller, Ultrasonic Washer, Pure Water Machine, High Purity Gases
Dimensional Please contact us for your own solution
Power supply 380V/50Hz/60Hz/60A
General Description:
Arc deposition PVD coating equipment is capable to do depositions of many metals on different metals, ceramic and glass substrates.
The PVD coating machine is particularly designed for protective hard coatings on tools, cutter and moulds. It improves the lifetime of different types of tool, meantime, it can increases the surface hardness.
The metal ions combine with a reactive gas that is introduced into the chamber, strike the target tools or components with high energy and are deposited as a thin and highly adherent coating.
Coatings:
| COMMON COATINGS | ||
|
Coating
|
Features
|
Application
|
|
TiN
|
Universal hard coating
|
It is mainly used as durable coating of turning, milling, drilling and gear cutting tools as well as the anti-adhesion of forming of forming and injection molds to improving lubricity.
|
|
TiCN
|
Low Friction Coefficient and Excellent Hardness
|
|
|
TiAlN
|
Universal Anti-Oxidation hard coating
|
With good red hardness and great surface smoothness, it can be used for high speed processing. Also, it is suitable for die steel, HSS, cement carbide tools (hardness of work material is lower than HRC45), stamping dies.
|
|
CrN
|
Universal anti-corrosion hard coating, Low adherence tendency
|
|
|
AlTiN
|
Ultra-high hardness, Anti- Oxidation
|
With very high micro-hardness and hot hardness, it is suitable for tool coatings with high thermal stress. It also has good thermal shock resistance and applicable for cement carbide tools (hardness of work material is lower than HRC45), die-casting molds.
|
You will need some necessary parts for daily production, we can also provide:
· Vacuum pumps
· Arc sources with arc power supplies
· O rings
· Vacuum meter with gauges/sensors
· Bias power supply
· Magnetic valves
· MFC
· Heating elements
· Target materials
· Customized jigs
