Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NICSON
-
Dimension(L*W*H):
-
customized
-
Weight:
-
Final Dimension
-
Warranty:
-
1 Year
-
Working Temperature Range:
-
20 - 80 ℃
-
Core Components:
-
No
-
After-sales Service Provided:
-
No overseas service provided
-
Product:
-

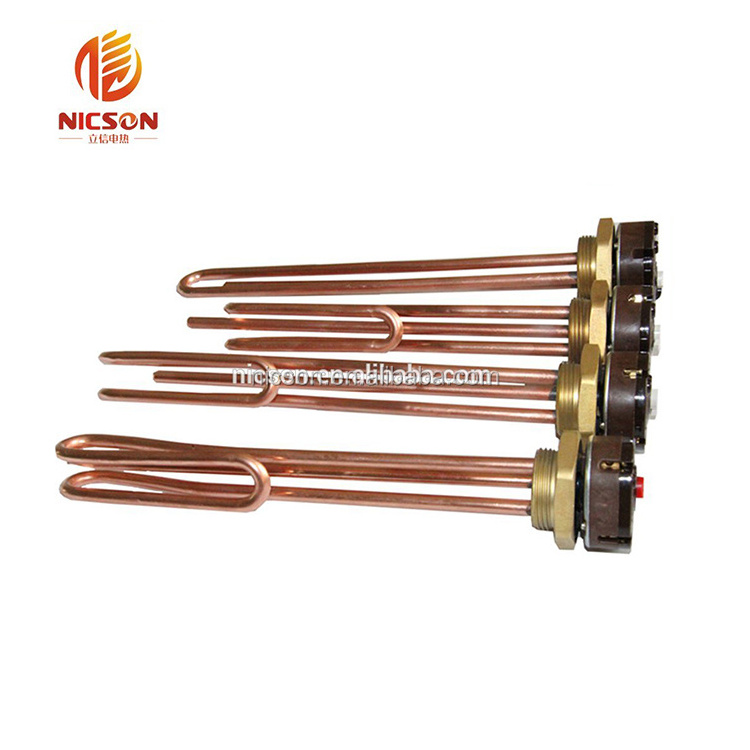

Electric Water Boiler Heating Element
-
tube material:
-
copper
-
watt:
-
1000W-3000W
-
voltage:
-
100V-380V
-
Wall thickness of tube:
-
0.6mm-0.7mm
-
surface treatment:
-
sliver/electrolyte/polishing/electroplate/acid-washing
-
tube diameter:
-
8mm
-
welding of flange:
-
Silver brazing/Tin brazing
-
thermostat:
-
single or double protection
-
Certification:
-
CE
Quick Details
-
Type:
-
Immersion Heater
-
Power Source:
-
Electric
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NICSON
-
Dimension(L*W*H):
-
customized
-
Weight:
-
Final Dimension
-
Warranty:
-
1 Year
-
Working Temperature Range:
-
20 - 80 ℃
-
Core Components:
-
No
-
After-sales Service Provided:
-
No overseas service provided
-
Product:
-
Electric Water Boiler Heating Element
-
tube material:
-
copper
-
watt:
-
1000W-3000W
-
voltage:
-
100V-380V
-
Wall thickness of tube:
-
0.6mm-0.7mm
-
surface treatment:
-
sliver/electrolyte/polishing/electroplate/acid-washing
-
tube diameter:
-
8mm
-
welding of flange:
-
Silver brazing/Tin brazing
-
thermostat:
-
single or double protection
-
Certification:
-
CE
Product Description
| Tube Material | 304/316L/321/copper/incoloy |
| Tube diameter | 6.5-10MM |
| Tube wall thickness | 0.6-0.7mm |
| watt | customized |
| voltage | 100V-380V |
| Dimension | customized |
| Warranty | Three year |
| High pop test | 1500V/2mA/1S |
| Resistance insulation | 100MΩ MIN |
| Leakage current | 0.5mA MAX |
| Surface treatment | Silver/nickel plated |
| Hydraulic testing | 8kg(Air pressure without penetration) |
| flange material | cooper or stainless steel |
| welding of flange technique | silver/Tin/nickle/Argon arc welding |
| Insulation resistance(cold air addition) | 100MΩ |
| Power tolerance(standard) | +5%/-10% |
| Thermostat | With 16A 250V. L=275mm. Single safety thermostat |
| Flange | 1 1/4" brass flange with/without Mg anode holding M6/M8 |
| Heating resistance wire | 0Cr25Al5,Cr20Ni80 or as customer's requirement |
| Leakage current to be 0. 5mA max While energized at rated voltage | |
